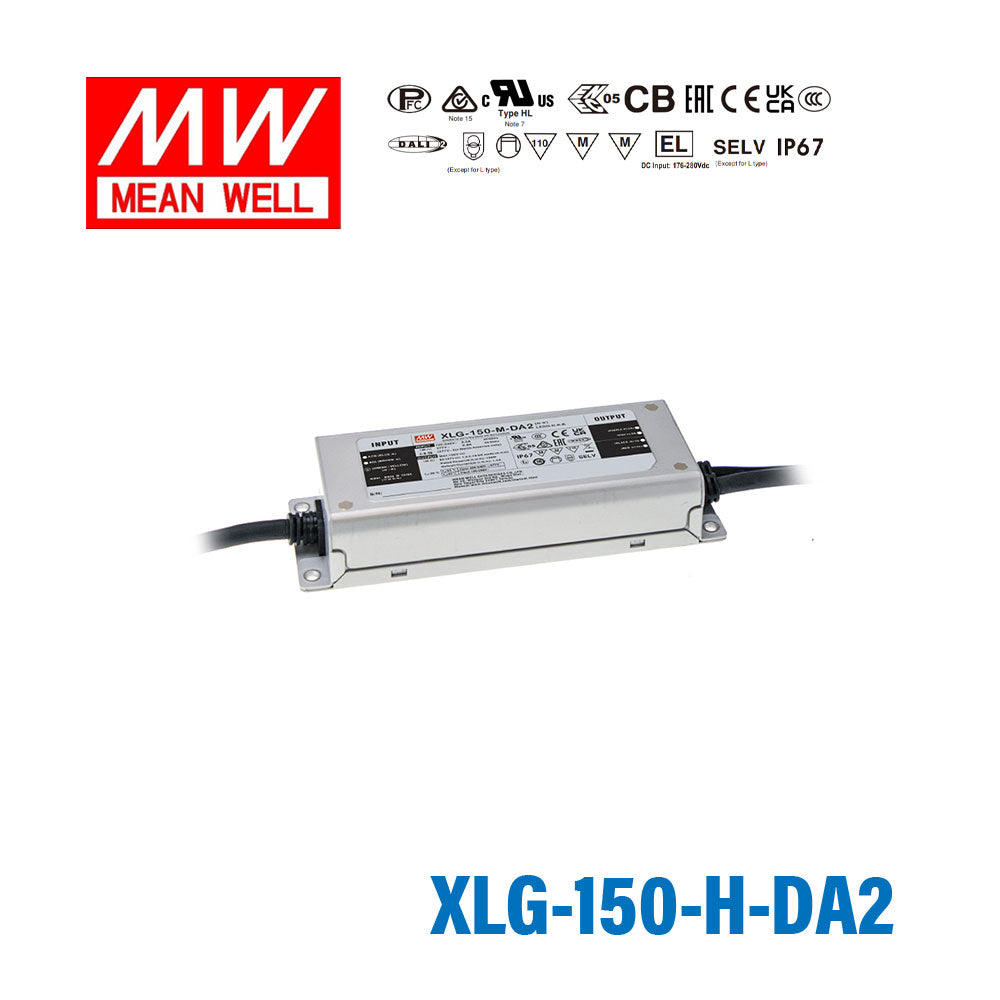

Mean Well XLG-150-H-DA2 Power Supply 150W 2800mA - DALI2 Dimmable

Name: Mean Well XLG-150-H-DA2 Power Supply 150W 2800mA - DALI2 Dimmable
Brand: Mean Well
SKU: XLG-150-H-DA2
Price: 124.69 NZD
Availability: InStock

constant current region 27~56V, current adjustable from 1400~4170mA, minimum dimming level 8%

SKU:

XLG-150-H-DA2

Please for Pricing

Notify me when it's back in stock

Description

Features:

Wide input range 100~305V AC(Class I)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV
DALI-2 Dimming with a minimum level 8%
12V/250mA Auxiliary power available(optional)
Protection functions: SCP/OTP
Lifetime >50,000 hrs
5 years warranty

General Specification

AC input voltage range

100 ~ 305VAC 142VDC ~ 431VDC

AC inrush current (max.)

COLD START 60A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Over-voltage protection

320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed). Can survive input voltage stress of 440Vac for 48 hours

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

Working temperature

Tcase = -40 ~ +90℃

Safety standards

UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent, GB19510.1,GB19510.14; EAC TP TC 004;IS 15885(Part2/Sec13)(for XLG-200I-DA2 only); IP67 approved

Dimension (LxWxH)

180x63x35.5mm

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

150 Watt
Output Voltage

65 Volt
Rated Current

2.8 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

18 cm
Width

6.3 cm
Height

3.55 cm
Weight

0.8 kg
