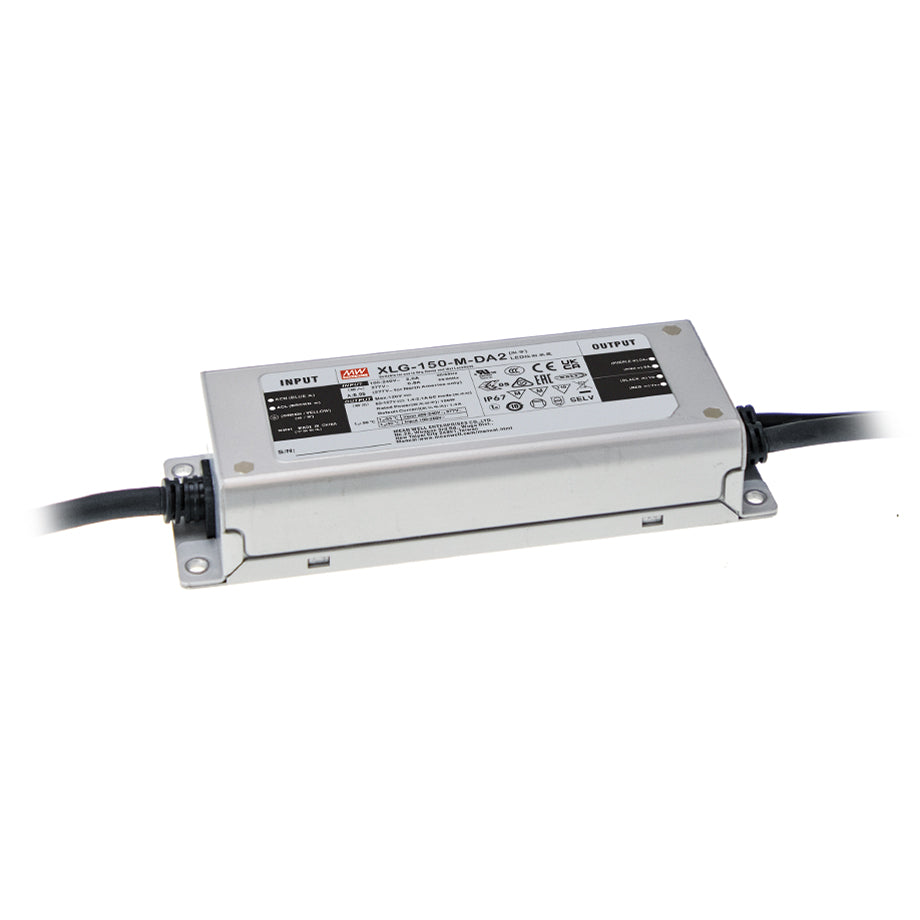

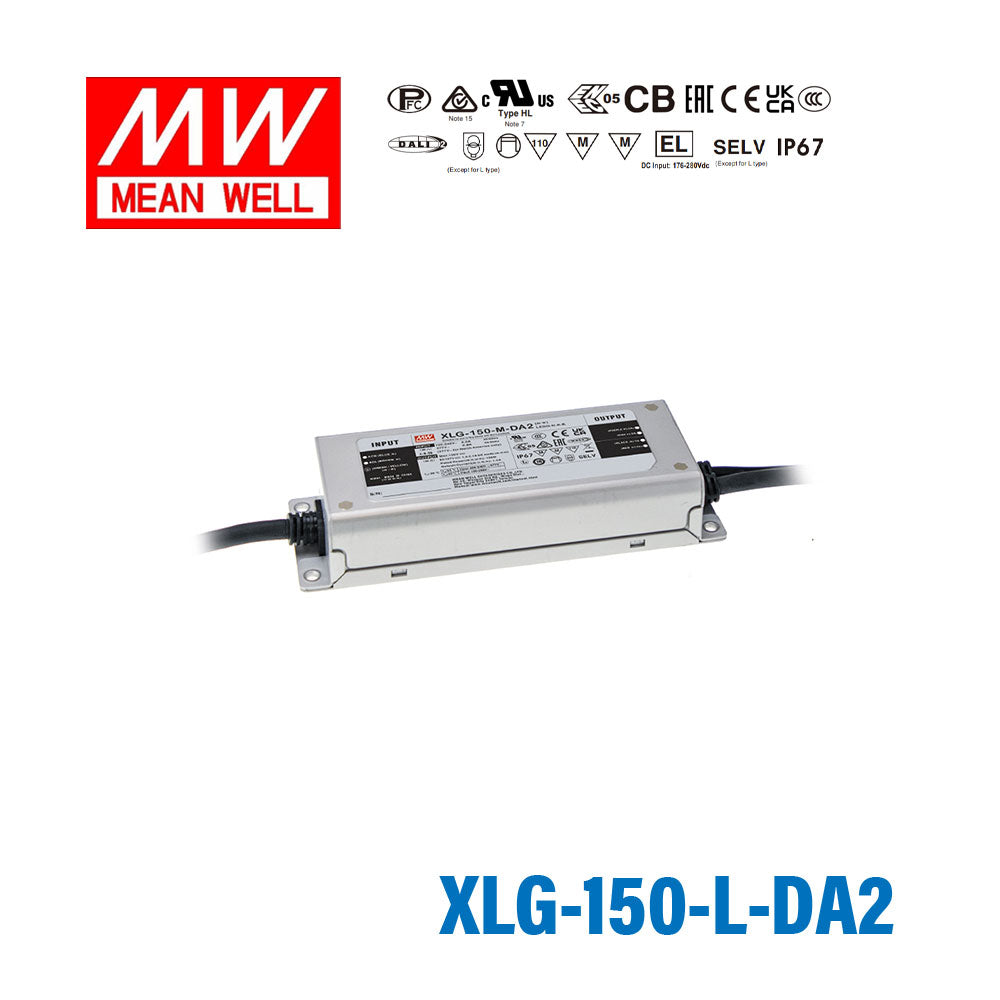

Mean Well XLG-150-L-DA2 Power Supply 150W 700mA - DALI2 Dimmable

constant current region 120~214V, current adjustable from 350~1050mA, minimum dimming level 8%

|

Description

Features:

  • Wide input range 100~305V AC(Class I)
  • Full power output at 70~100% Constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV
  • DALI-2 Dimming with a minimum level 8%
  • 12V/250mA Auxiliary power available(optional)
  • Protection functions: SCP/OTP
  • Lifetime >50,000 hrs
  • 5 years warranty

General Specification

AC input voltage range

100 ~ 305VAC 142VDC ~ 431VDC

AC inrush current (max.)

COLD START 60A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Over-voltage protection

320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed). Can survive input voltage stress of 440Vac for 48 hours

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

Working temperature

Tcase = -40 ~ +90℃

Safety standards

UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent, GB19510.1,GB19510.14; EAC TP TC 004;IS 15885(Part2/Sec13)(for XLG-200I-DA2 only); IP67 approved

Dimension (LxWxH)

180x63x35.5mm

Specifications

  • Brand
    Mean Well
  • Series
    XLG Series
  • Power Rating
    150 Watt
  • Output Voltage
    240 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,SELV
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    18 cm
  • Width
    6.3 cm
  • Height
    3.55 cm
  • Weight
    0.8 kg

File Downloads

::specification::
