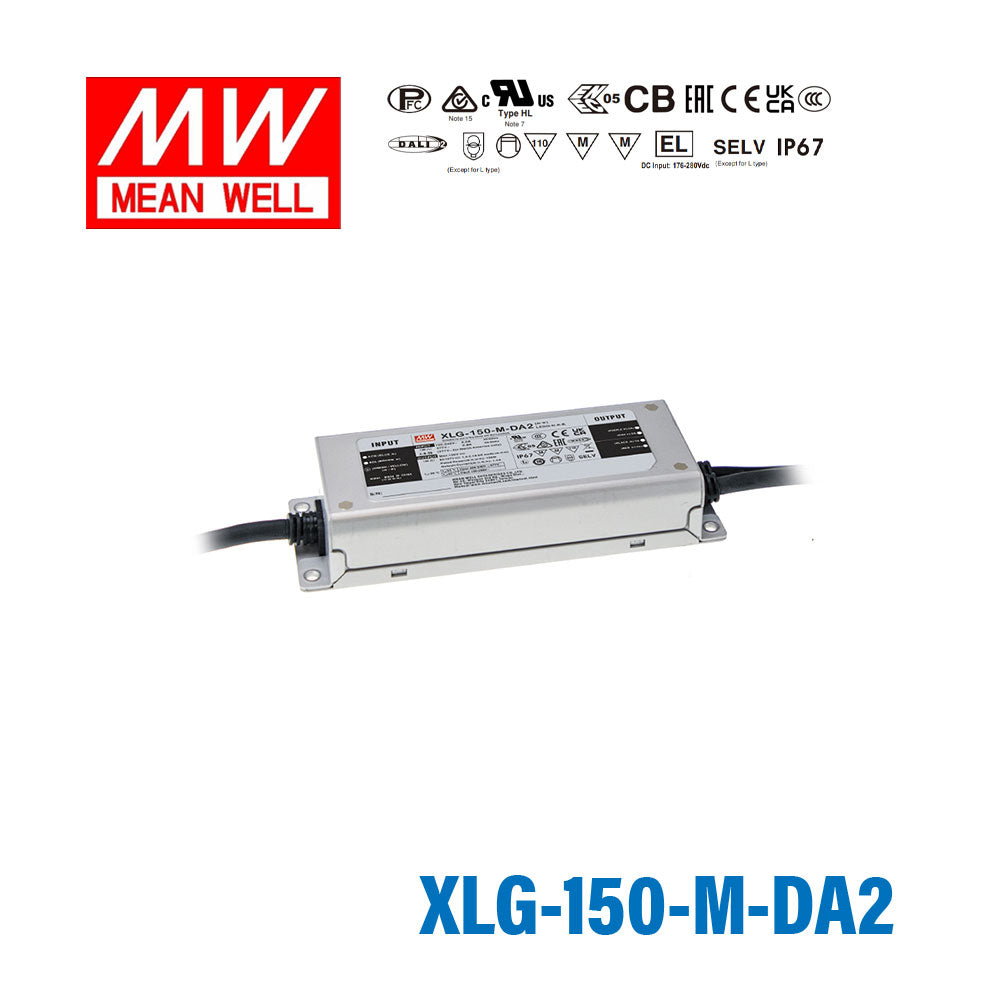

Mean Well XLG-150-M-DA2 Power Supply 150W 1400mA - DALI2 Dimmable

constant current region 60~107Vcurrent adjustable from 700~2100mAminimum dimming level 8%

SKU:

XLG-150-M-DA2

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

XLG-150-M-DA2

XLG-75-H-DA2 1400mA DALI2 Dimmable Low stock

XLG-150-M-DA2 1400mA DALI2 Dimmable Low stock

XLG-240-H-A 1400mA H Adjustable Backorder

XLG-240-H-AB 1400mA Adjustable and Dimmable Backorder

XLG-240-M-A 1400mA M Adjustable Backorder

XLG-240-M-AB 1400mA M Adjustable and Dimmable Backorder

XLG-240-M-DA2 1400mA DALI2 Dimmable Backorder

XLG-320-L-DA2 1400mA DALI2 Dimmable Backorder

Product variants

Notify me when it's back in stock

Key Features

✓Wide input range 100~305V AC(Class I)
✓Full power output at 70~100% Constant power mode operation
✓Metal case with IP67, suitable for outdoor application
✓Surge protection with 6KV/4KV
✓DALI-2 Dimming with a minimum level 8%
✓12V/250mA Auxiliary power available(optional)
✓Protection functions: SCP/OTP
✓Lifetime >50,000 hrs
✓5 years warranty

Frequently Asked Questions

Can the XLG-150-M-DA2 power LED downlights or panel lights in a mid-voltage DALI2 lighting system?

Yes. At 150W and 1400mA with a constant current range of 60–107V, the XLG-150-M-DA2 suits LED downlight and panel applications where the LED string voltage falls in the mid-voltage range. DALI2 dimming down to 8% enables integration with building control systems.

Is the XLG-150-M-DA2 appropriate for outdoor LED area or sports lighting that requires moisture protection?

Yes. The IP67 waterproof rating and -40°C to +90°C operating range make the XLG-150-M-DA2 suitable for outdoor area, sports, or floodlighting installations where the driver may be exposed to rain, dust, or temperature extremes.

Can I use the XLG-150-M-DA2 for LED linear arrays in a retail or architectural lighting project?

Yes. The DALI2 dimming interface and adjustable current from 700mA to 2100mA make this driver flexible for architectural or retail LED linear arrays, provided the LED string voltage stays within the 60–107V constant current region.

How many LEDs can be driven in series by the XLG-150-M-DA2?

The driver maintains constant current across a 60–107V output range. The number of LEDs you can place in series depends on the forward voltage of each LED — the combined string voltage must fall within that 60–107V window.

How does the XLG-150-M-DA2 differ from the XLG-150-H-DA2 and XLG-150-L-DA2?

All three are 150W IP67 DALI2 constant current drivers. The XLG-150-H-DA2 outputs 2800mA across 27–56V, the XLG-150-M-DA2 outputs 1400mA across 60–107V, and the XLG-150-L-DA2 outputs 700mA across 120–214V. Choose the variant whose voltage range matches your LED string design.

Can this driver supply LED loads in industrial or manufacturing facilities that use 200–240VAC mains?

Yes. The XLG-150-M-DA2 accepts input voltages from 100VAC to 305VAC, covering standard 200–240VAC industrial mains supplies worldwide without any additional conditioning equipment.
