Versaan Integral C1 Casambi Push Coupler 5 Channel
Please Login for Pricing
Description
Description

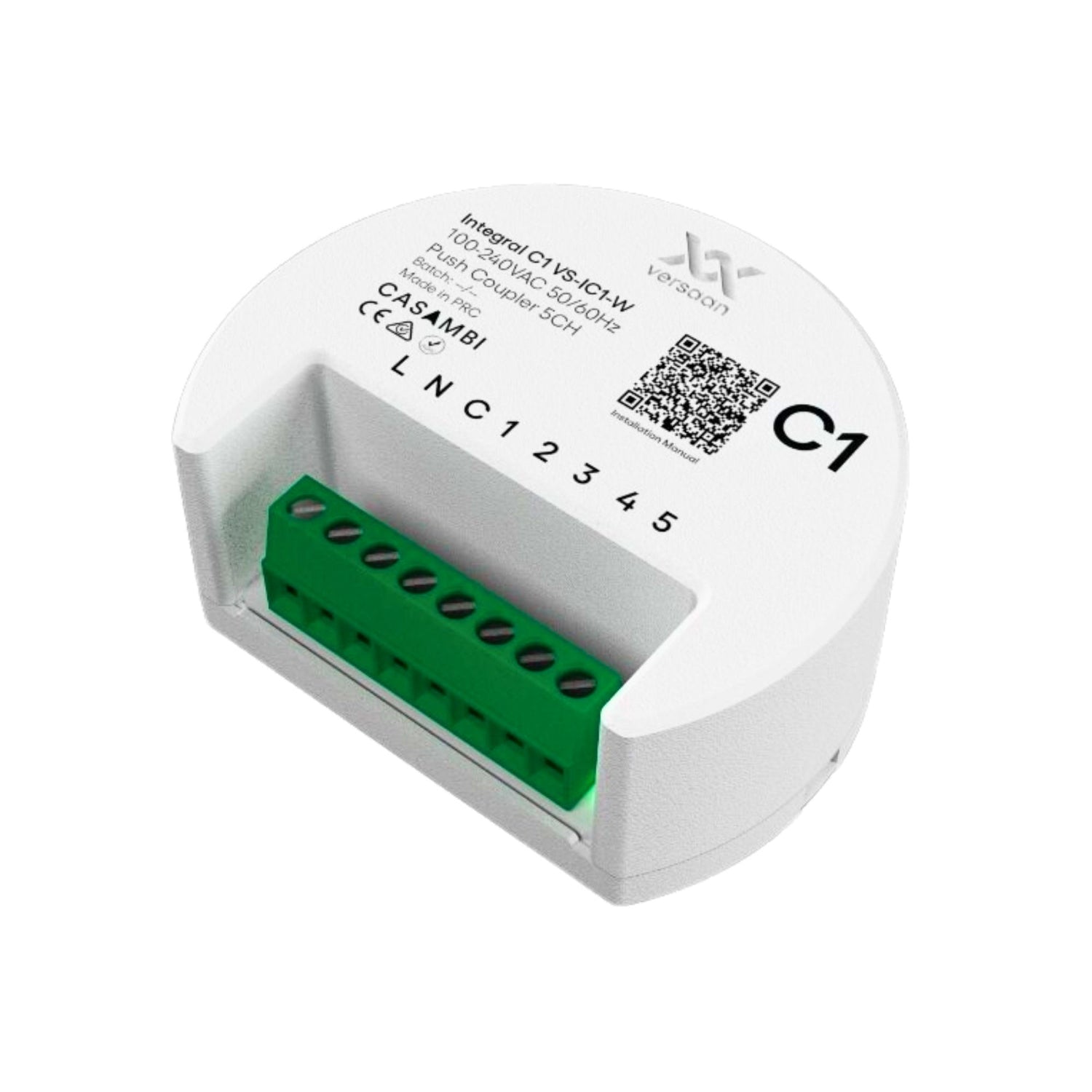

The Integral C1 is a compact 5-channel push-button interface designed for seamless integration into Casambi-controlled lighting systems. Perfectly suited for switch box installations, the C1 allows connection to up to five traditional push-button switches, each of which can be independently configured for on/off, dimming, or scene control. Whether used in single rooms or large buildings, the C1 leverages the Casambi mesh network for scalable, wireless lighting automation. It is part of the Integral range, which supports DALI, Phase-dim, Relay, and PWM control in a unified, miniaturised architecture.
Key Features
-
5x push-button inputs for on/off, scene, dimming, and custom control
-
Casambi wireless integration with mesh networking support
-

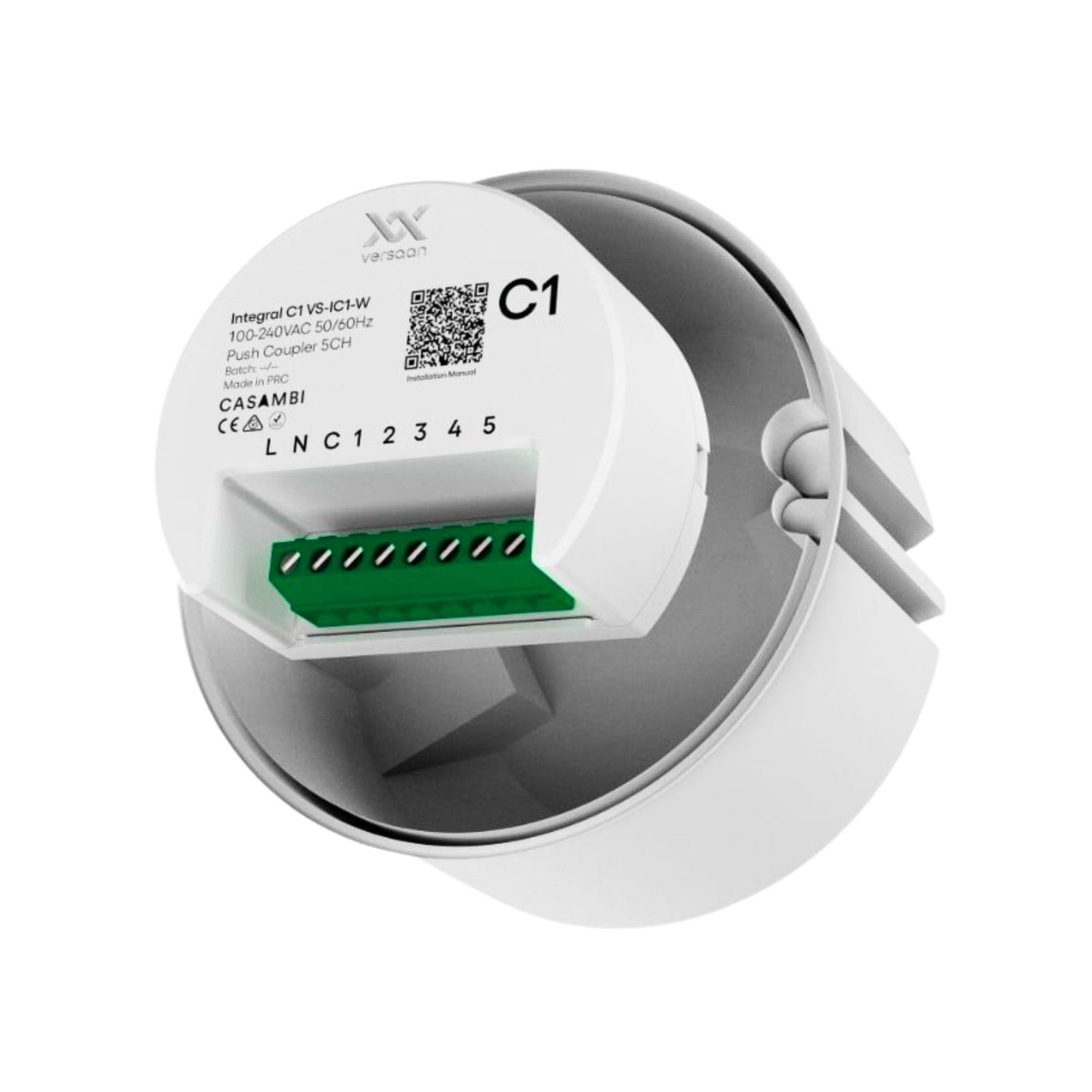

Compact design (52x42.51x22mm) ideal for switch box installation
-
100–240VAC power supply, 50/60Hz
-
Loop-in/loop-out wiring with 1.5mm² terminal capacity
-

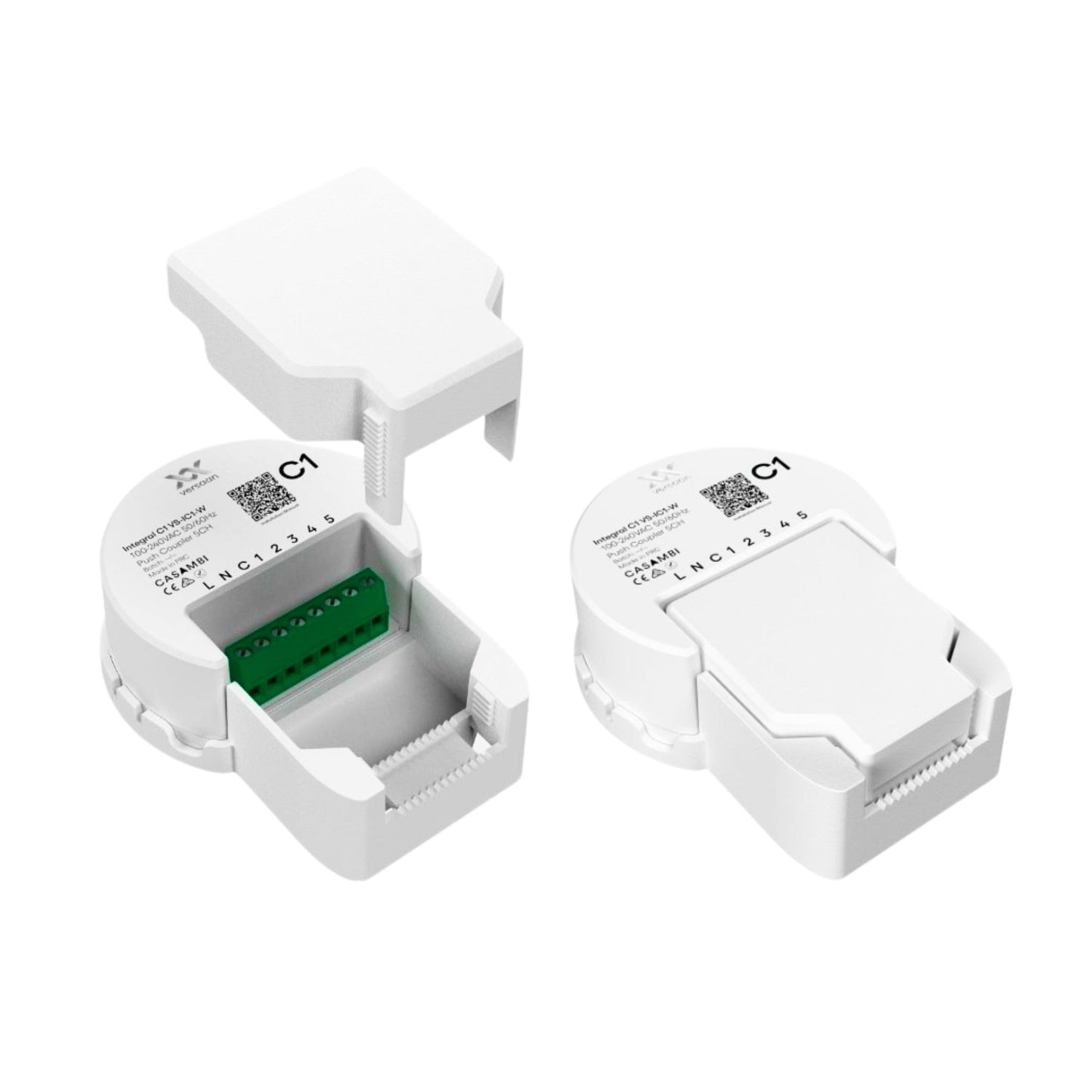

Optional surface mount kit with built-in cable clamp
-

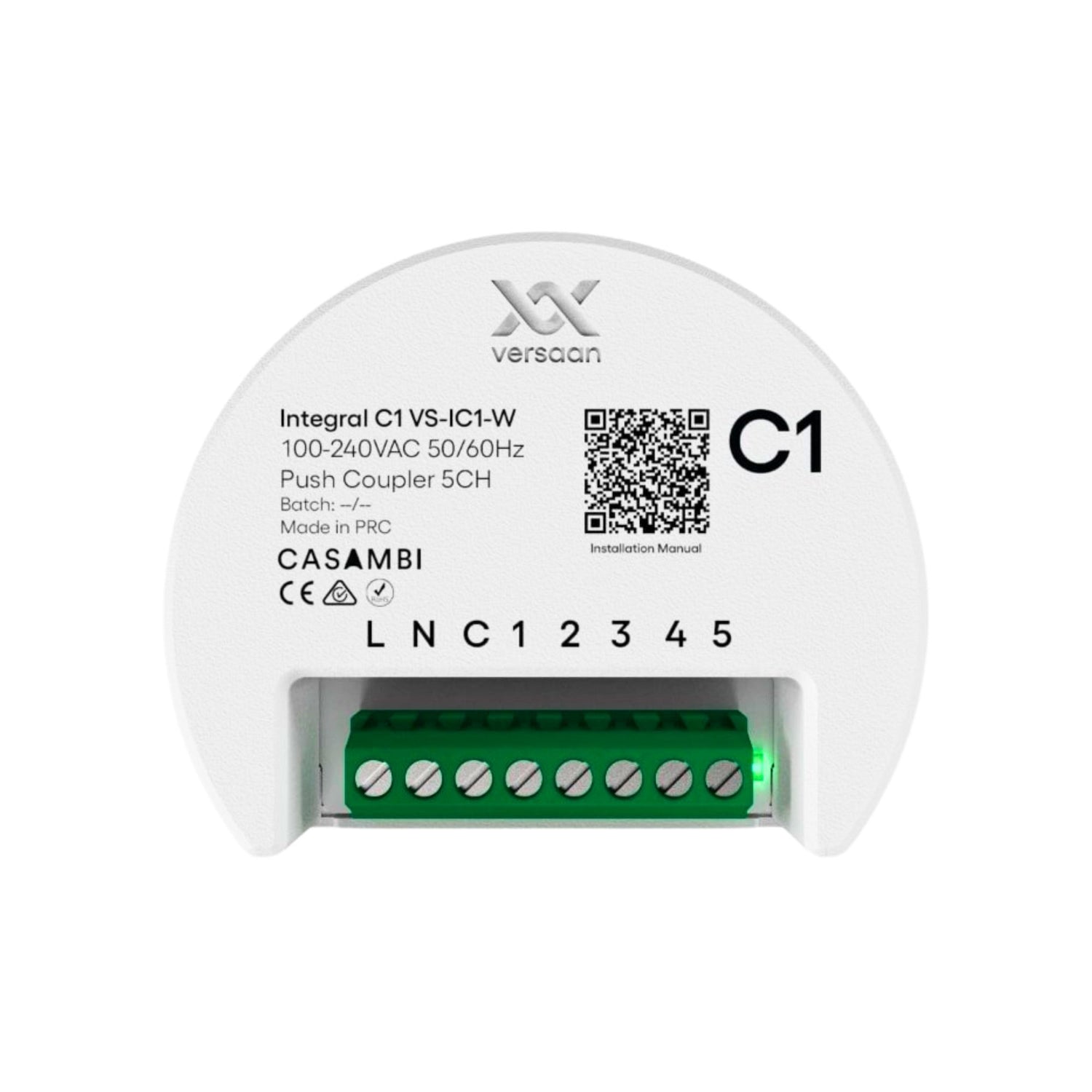

Built-in LED indicator for easy identification and commissioning
-
Flame-retardant ABS+PC enclosure with IP20 rating
-
Wireless range: up to 180m (open air, line-of-sight)
-
Operating temperature: 0°C to 55°C
-
5-year warranty
Specifications
Specifications
-
BrandVersaan
-
SeriesVersaan Casambi
-
Input Voltage100V~240V
-
Standards MetCE,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~55°C
-
Warranty5 Year
-
Length5.2 cm
-
Width4.25 cm
-
Height2.2 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Versaan Integral C1 Casambi Push Coupler 5 Channel used for?
The VS-IC1-W is a compact push-button interface for Casambi-controlled lighting systems. It is used to bring traditional push-button control into a Casambi wireless lighting setup for functions such as on/off, dimming, or scene control.
How many push-button controls can the Integral C1 support?
The Integral C1 is designed as a 5-channel interface. Each channel can be independently configured within a Casambi lighting system for control functions such as switching, dimming, or scenes.
Is the VS-IC1-W compatible with Casambi lighting systems?
Yes. This model is specifically described as a Casambi push coupler and is intended for use in Casambi-controlled lighting systems. It uses Casambi control along with push-button input functionality.
Can the Integral C1 be used for scene control?
Yes. The product description states that connected push-button switches can be configured for scene control in a Casambi system. They may also be configured for on/off or dimming functions.
What operating temperature range does the VS-IC1-W support?
The listed operating temperature range for this model is 0 °C to 55 °C. This makes it suitable for controlled indoor environments that stay within that temperature range.
What warranty period applies to the Integral C1?
The Versaan Integral C1 Casambi Push Coupler 5 Channel is listed with a 5-year warranty period. This warranty length is specific to the product data provided for SKU VS-IC1-W.
How much does the VS-IC1-W weigh?
The listed weight for the VS-IC1-W is 0.2000 kg. This compact weight is consistent with its role as a small lighting control interface rather than a power supply or large driver.
