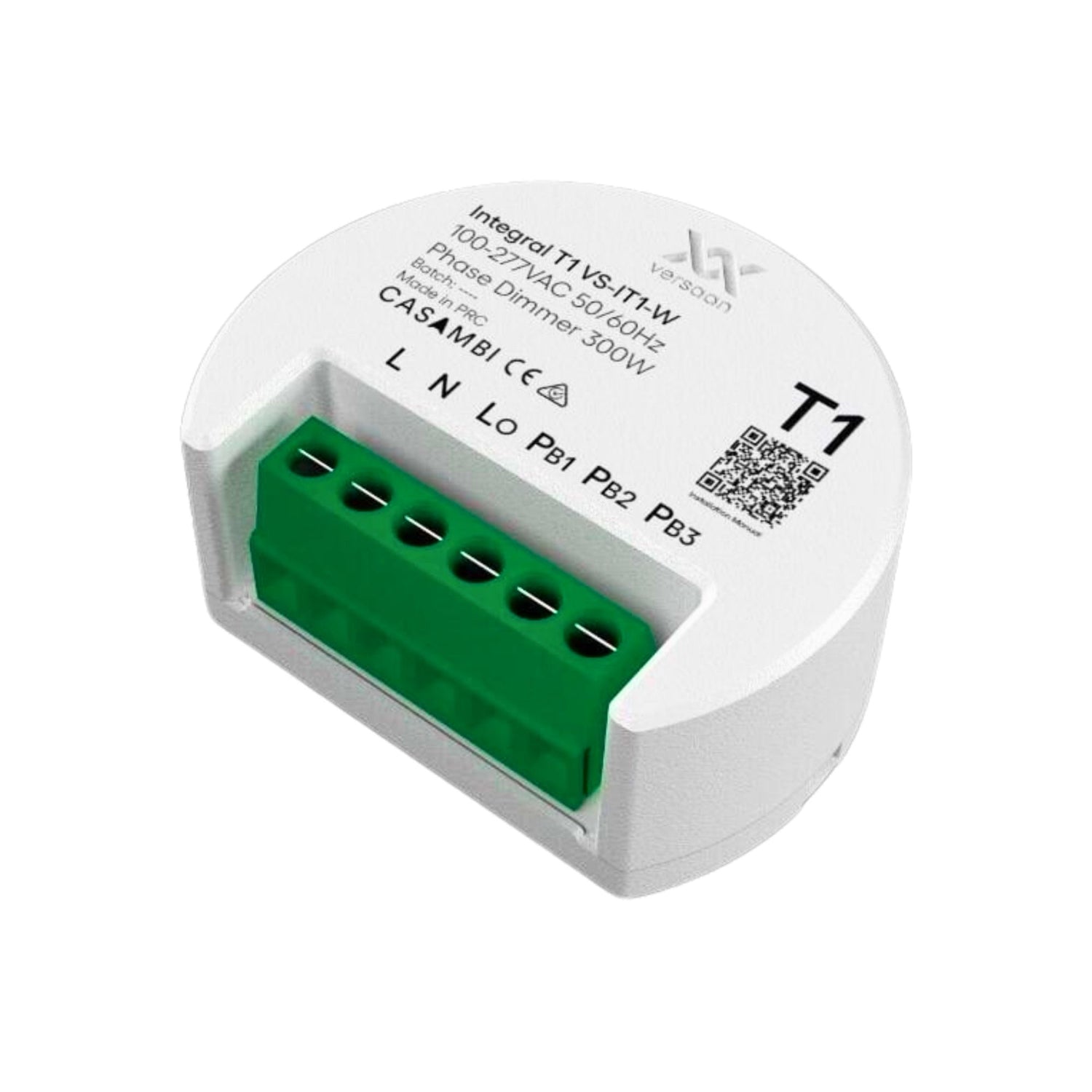

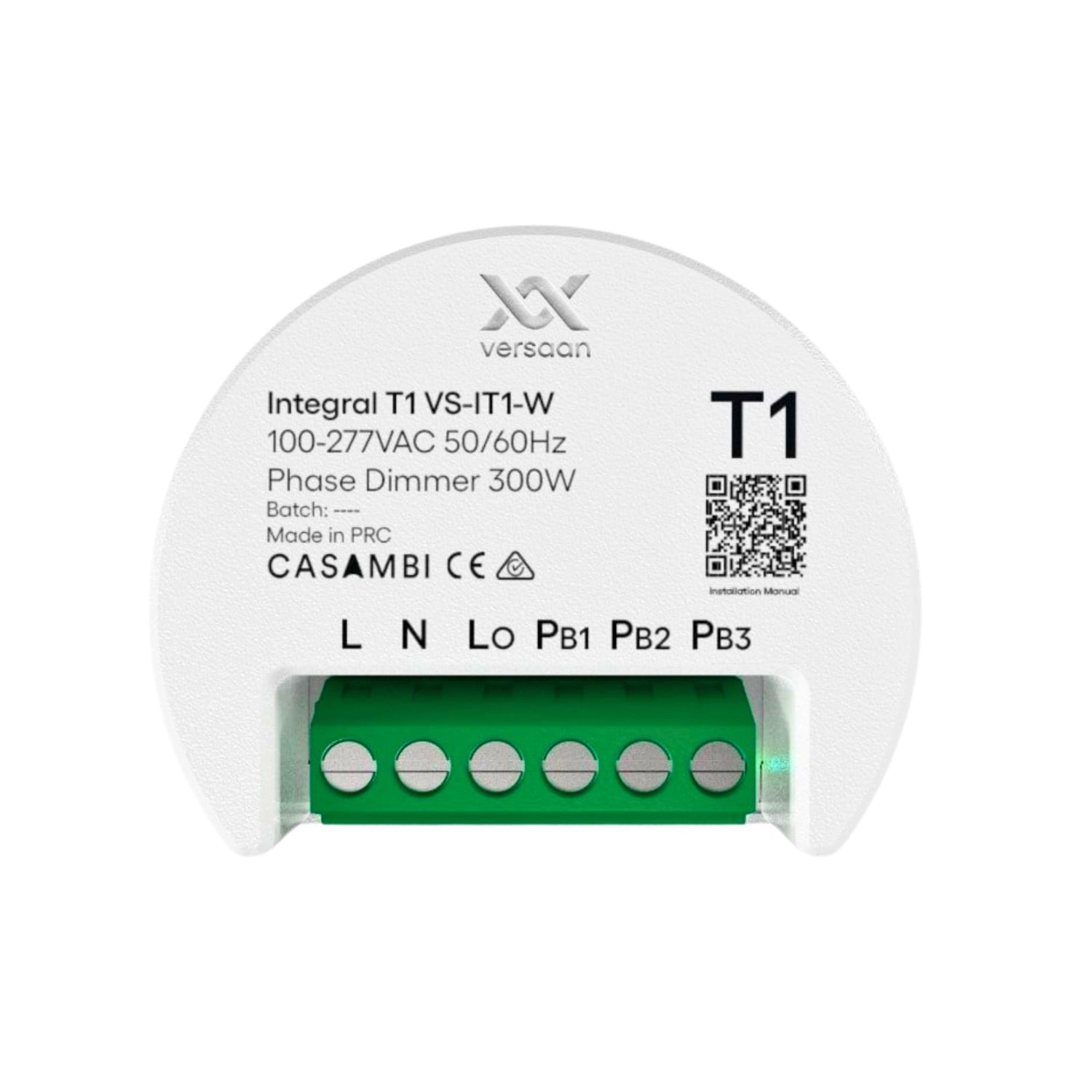

Versaan Integral T1 Casambi to Triac Converter - 300W
Please Login for Pricing
Description
Description
The Integral T1 is a high-performance wireless phase dimmer designed for integration into Casambi-based smart lighting systems. Capable of delivering up to 300W of dimmable output, the T1 supports a wide range of phase-dim luminaires while maintaining a compact footprint suitable for switch box installation. Featuring three configurable push-button inputs, it provides flexible local control alongside powerful wireless automation. The T1 is part of the Integral control range, offering unified design and seamless compatibility across DALI, Phase-dim, Relay, and PWM solutions for both residential and commercial applications.
Key Features
-
300W phase dimming output with high inrush resilience
-
Casambi wireless control including Long Range support
-
3x push-button inputs for scenes, dimming, and on/off control
-

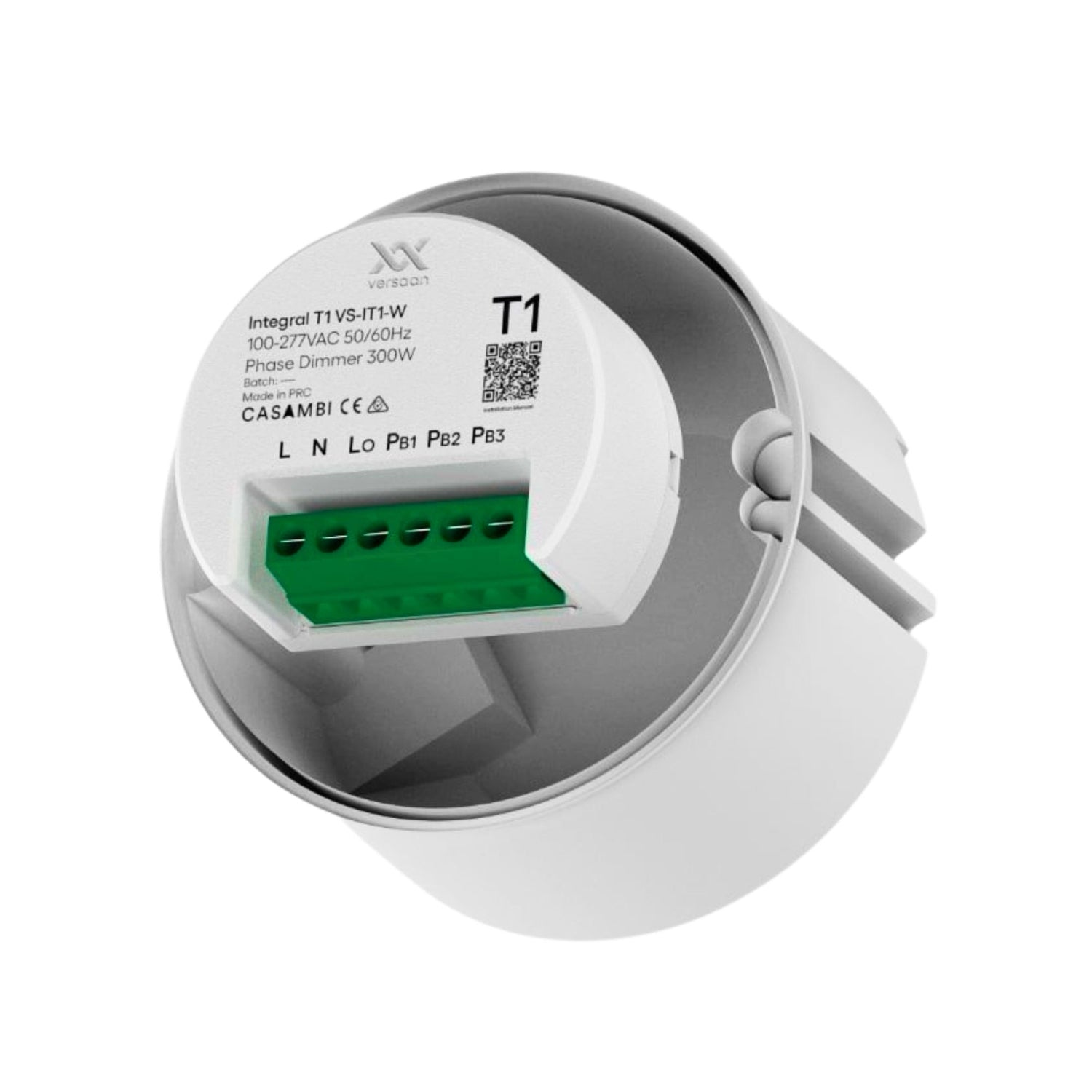

Compact size (52x42.51x22mm) fits standard switch boxes
-

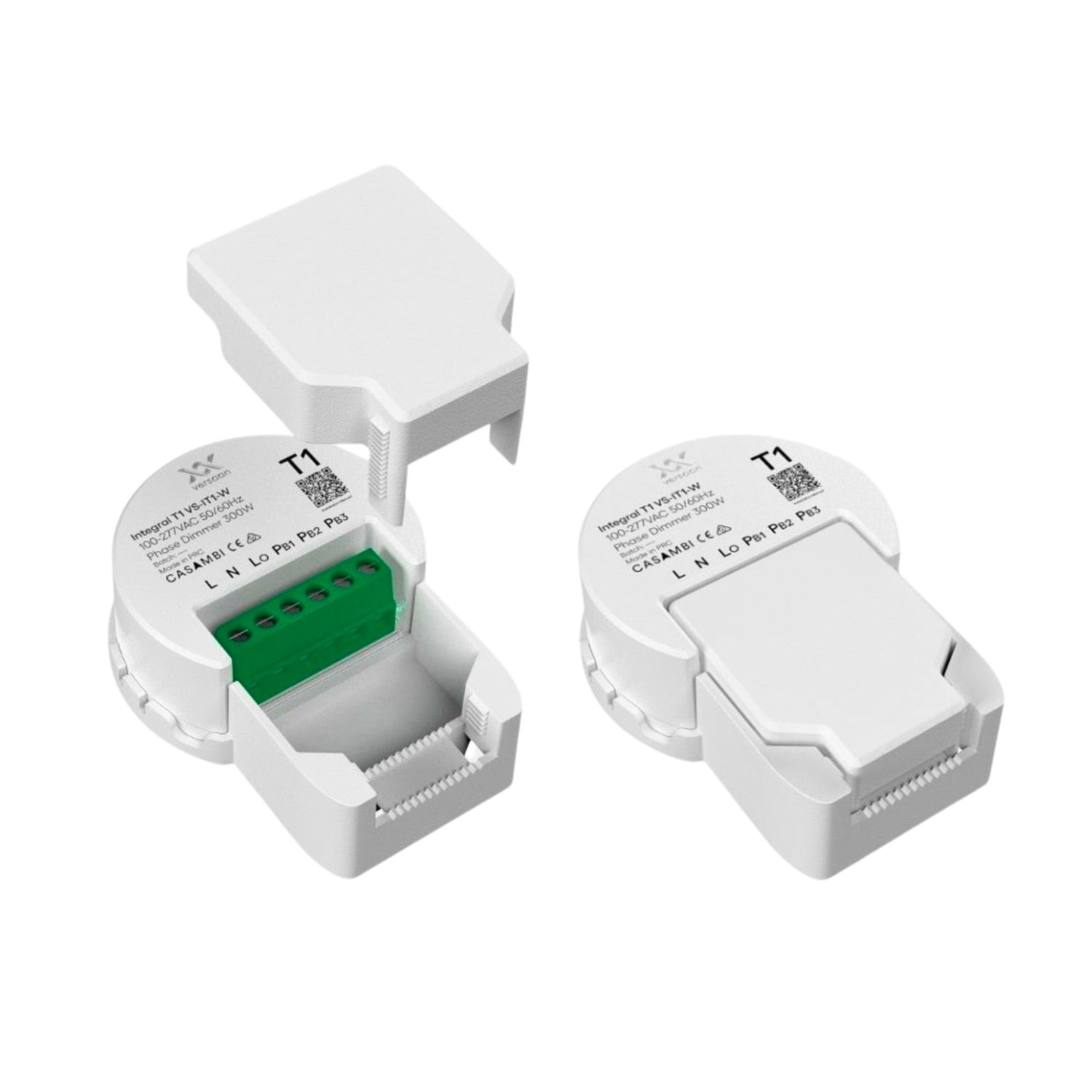

Optional surface mount kit with built-in cable strain relief
-
Built-in LED for easy identification during commissioning
-
100–277VAC input voltage range, 50/60Hz
-
Flame-retardant ABS+PC enclosure with IP20 rating
-
Loop-in/loop-out wiring with 2.5mm² terminal capacity
-
Wireless range up to 180m (open air, line-of-sight)
-
5-year warranty
Specifications
Specifications
-
BrandVersaan
-
SeriesVersaan Casambi
-
Power Rating300 Watt
-
Input Voltage100V~277V
-
Standards MetCE,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~55°C
-
Warranty5 Year
-
Length5.2 cm
-
Width4.25 cm
-
Height2.2 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Versaan Integral T1 used for?
The Versaan Integral T1 is used to add wireless Casambi-based control to phase-dimmable lighting loads. It converts Casambi control into AC phase-cut dimming for compatible luminaires, with up to 300W of dimmable output.
Is the Integral T1 compatible with Casambi lighting systems?
Yes. The Integral T1 is designed for integration into Casambi-based smart lighting systems. It supports Casambi wireless control while also offering local push-button control inputs.
What is the maximum power rating of the Integral T1?
This model is rated for up to 300W of dimmable output. It is intended for compatible phase-dimmable luminaires within that rating.
What dimming methods does the Integral T1 support?
The Integral T1 supports AC phase-cut dimming, Casambi wireless control, and push-button control. This makes it suitable for projects that need both smart automation and local control options.
What operating temperature range does the Integral T1 support?
The Integral T1 is rated for operation from 0°C to 55°C. It should be specified for indoor or controlled environments that remain within that temperature range.
What warranty does the Integral T1 include?
The Versaan Integral T1 includes a 5-year warranty. This warranty period applies to model VS-IT1-W.
Other Versaan Casambi Series Models
5 other models| Model | Outputs | Output Type | Dimming | |
|---|---|---|---|---|
| Versaan Integral R1 Casambi Relay - 10A, 250A Inrush | 1 | — | Casambi,Push Dimming | View |
| Versaan Unity S1 Casambi All-in-One PIR Sensor White | — | — | Casambi | View |
| Versaan Integral P1 Casambi to PWM Converter - 4 Channel 300W | 4 | PWM | PWM | View |
| Versaan Integral D1 Casambi to DALI Converter - 50mA | — | DALI Signal | Casambi,DALI,DALI2,Push Dimming | View |
| Versaan Integral C1 Casambi Push Coupler 5 Channel | — | — | Casambi,Push Dimming | View |
