Versaan Integral R1 Casambi Relay - 10A, 250A Inrush
Please Login for Pricing
Description
Description

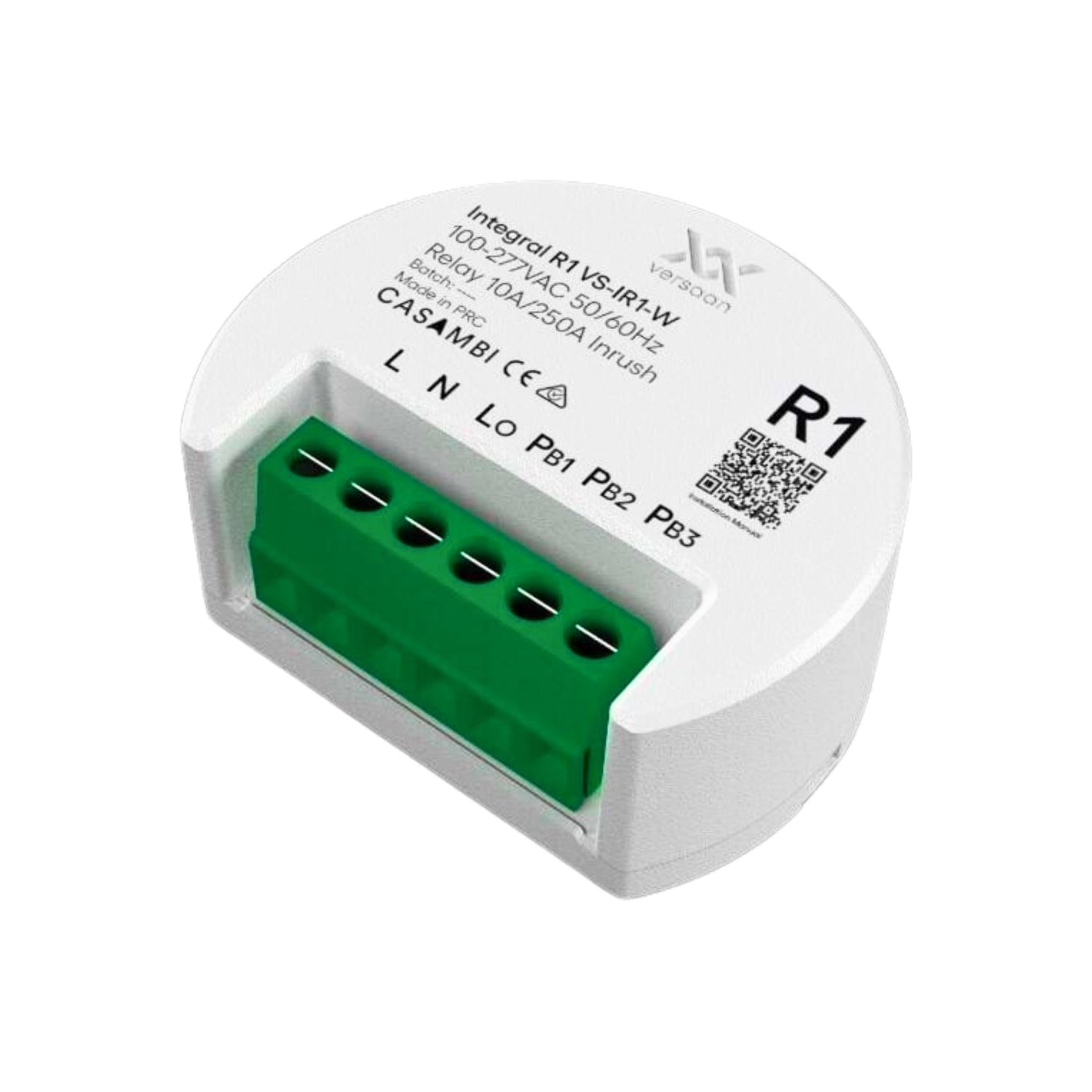

The Integral R1 is a compact, high-performance wireless relay controller designed to provide robust on/off control of lighting and other electrical loads up to 10A. Ideal for integrating into Casambi smart systems, the R1 supports high inrush currents up to 250A, making it suitable for LED and inductive loads. Three push-button inputs offer flexible manual control while the Casambi integration enables advanced automation, scene setting, and remote switching. As part of the Integral family, the R1 shares a unified miniaturised form factor with support for Relay, Phase-dim, DALI, and PWM outputs in a single system architecture.
Key Features
-
10A relay output for resistive, capacitive, and inductive loads
-
Handles high inrush current (up to 250A/1ms) — ideal for LED lighting
-
Casambi wireless control with Long Range compatibility
-
3x configurable push-button inputs for local scene/dimming/on-off control
-

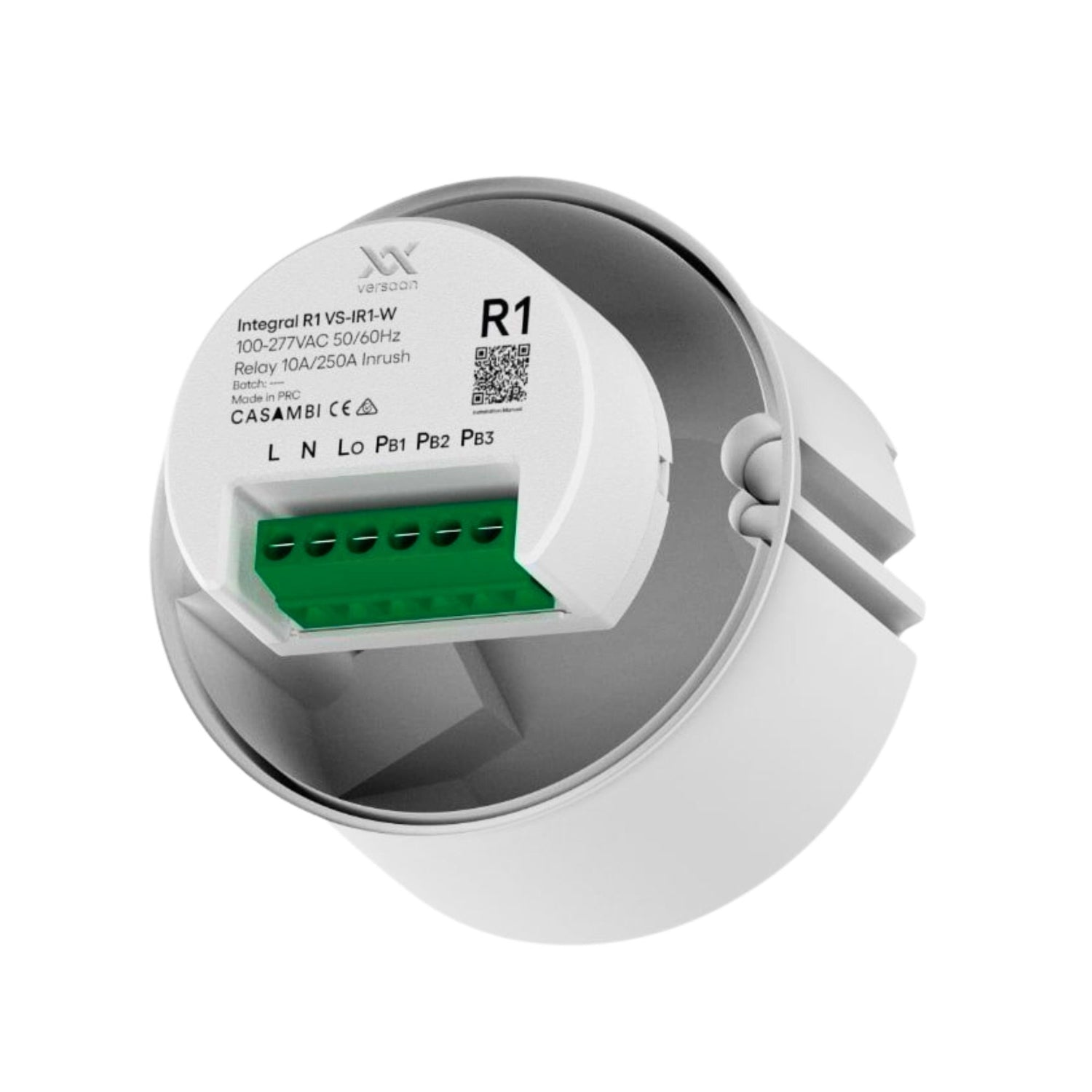

Compact housing (52x42.51x22mm) fits standard switch boxes
-

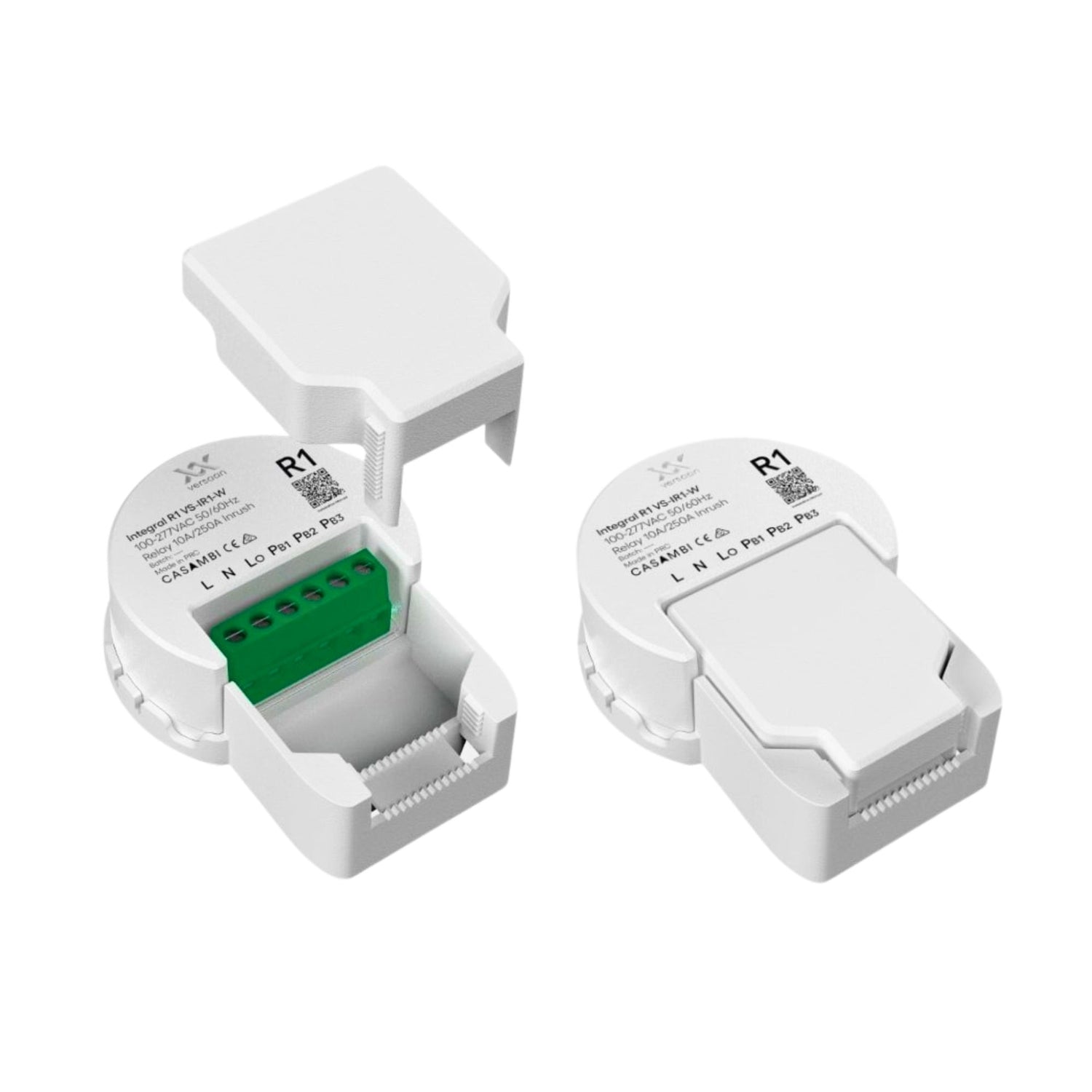

Optional surface mount kit with integrated cable strain relief
-

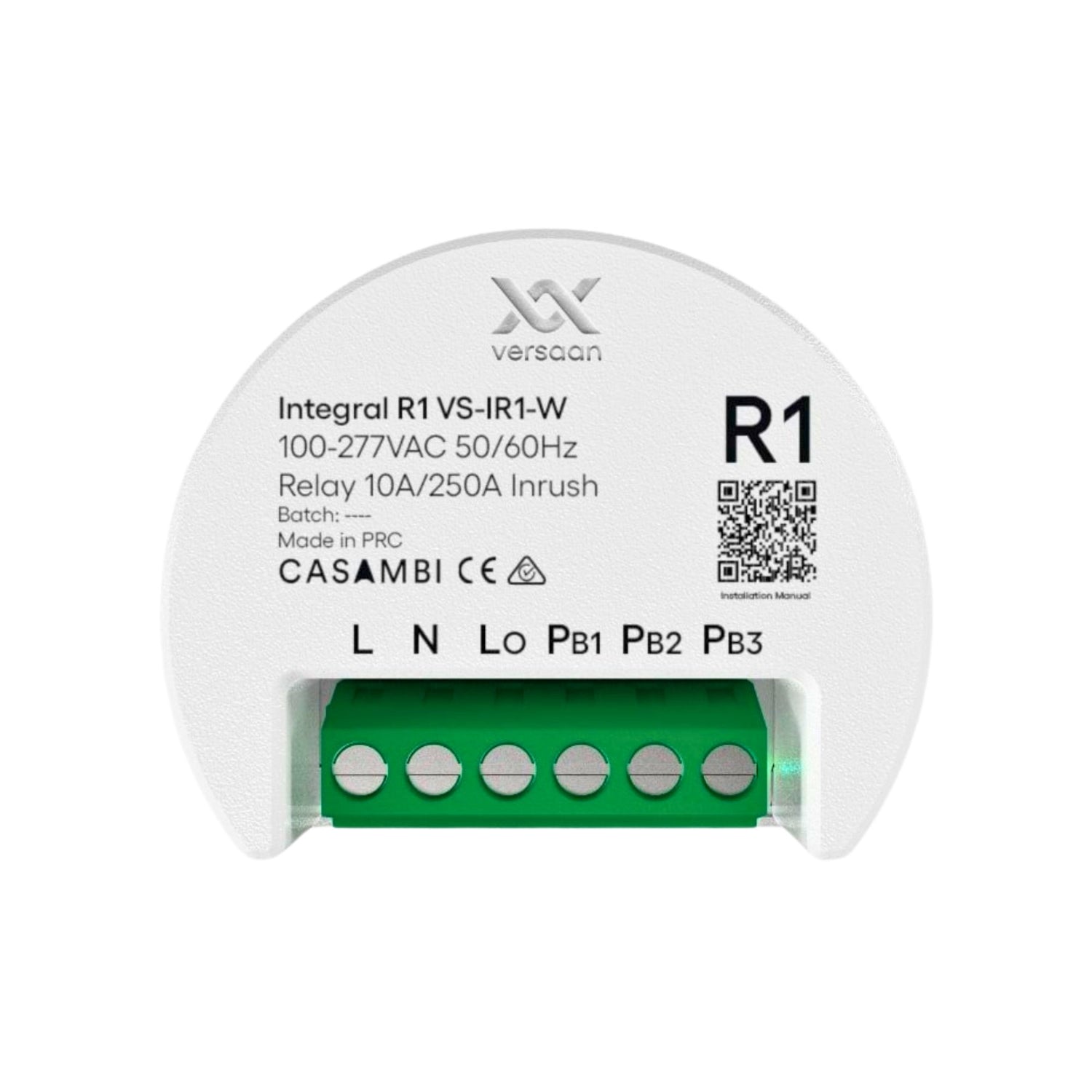

Loop-in/loop-out wiring with 2.5mm² terminal support
-
Flame-retardant ABS+PC enclosure, IP20 rated
-
Wireless range: up to 180m (open air, line-of-sight)
-
Operating temperature: 0°C to 55°C
-
5-year warranty
Specifications
Specifications
-
BrandVersaan
-
SeriesVersaan Casambi
-
Rated Current10 Ampere
-
Input Voltage100V~277V
-
Standards MetCE,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~55°C
-
Warranty5 Year
-
Length5.2 cm
-
Width4.25 cm
-
Height2.2 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Versaan Integral R1 Casambi Relay used for?
The VS-IR1-W is a wireless relay controller for on/off control of lighting and other electrical loads up to 10A. It is designed for Casambi smart lighting systems where relay-based switching, scenes, automation, or remote control are needed.
Is the Integral R1 suitable for LED loads with high inrush current?
Yes. This model supports inrush currents up to 250A, which makes it suitable for many LED and inductive load applications where startup current can be higher than the normal operating current.
Does the VS-IR1-W provide dimming control?
The listed control methods for this model are Casambi and push-button control. The product is described as a relay controller for robust on/off control, so buyers should treat it as a switching relay rather than a dimming driver unless their system design specifically supports the desired control behavior.
What smart lighting systems is this relay compatible with?
The Integral R1 is designed for use with Casambi smart systems. In a Casambi environment, it can support automation, scene setting, remote switching, and manual control through its push-button input capability.
What is the rated current of the Integral R1?
The VS-IR1-W is rated for electrical loads up to 10A. Its high 250A inrush rating helps distinguish it from basic relay controllers used with less demanding lighting loads.
What operating temperature range does this relay support?
This model is rated for operation from 0°C to 55°C. That range makes it appropriate for controlled indoor electrical and lighting control environments that remain within those temperature limits.
What warranty is included with the Versaan Integral R1?
The VS-IR1-W has a listed warranty period of 5 years. This is useful for commercial and B2B lighting projects where long-term component support is part of the purchasing decision.
