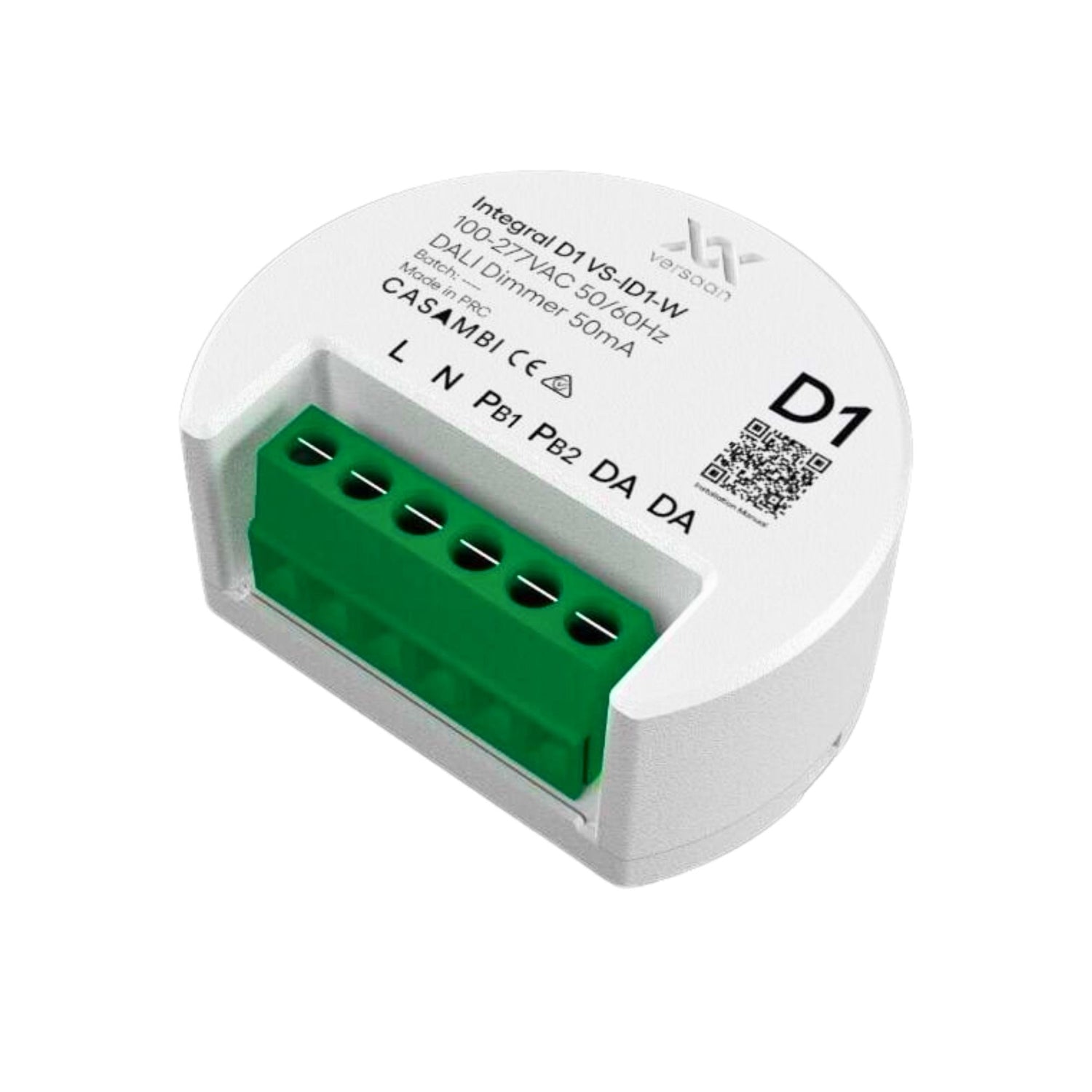

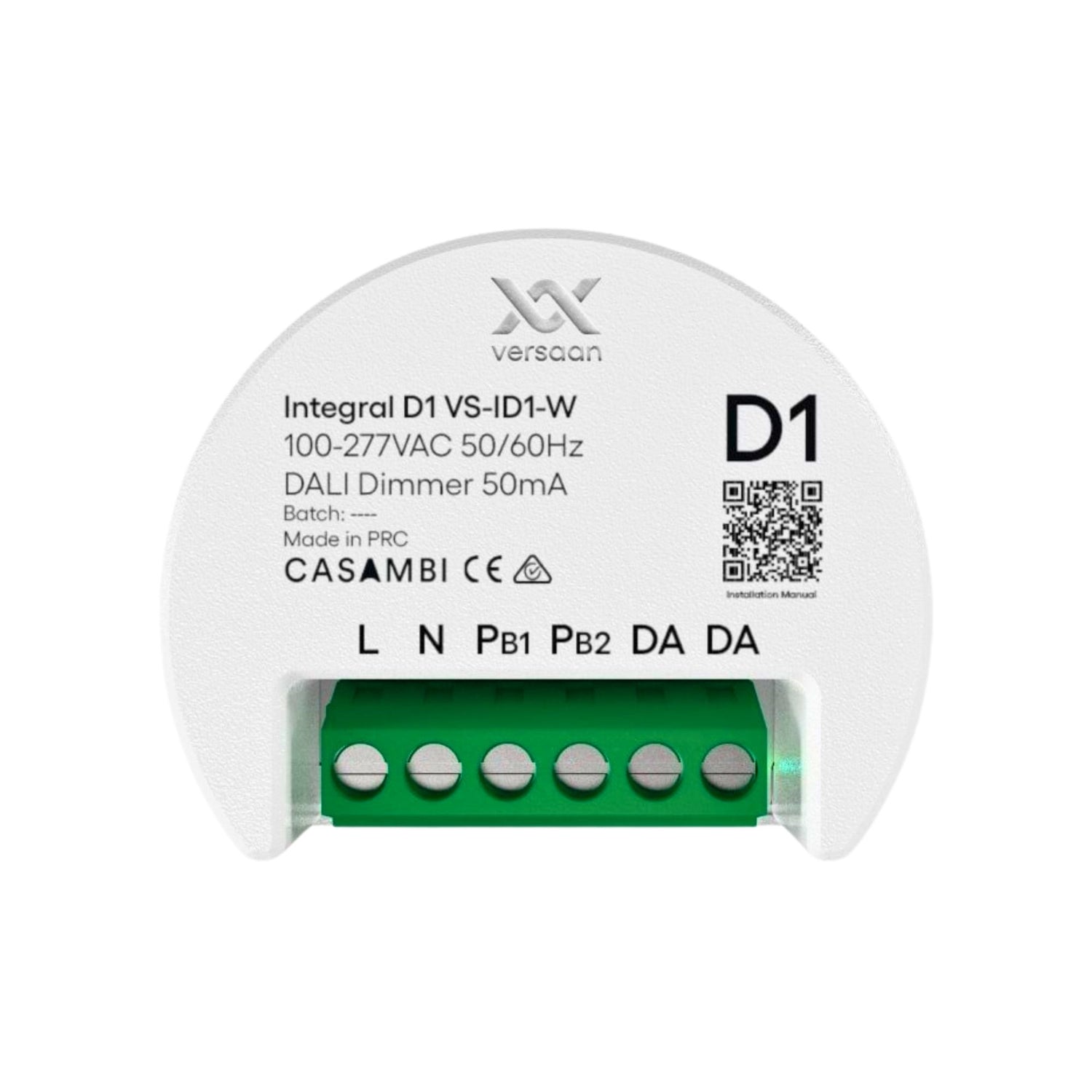

Versaan Integral D1 Casambi to DALI Converter - 50mA
Please Login for Pricing
Description
Description
The Integral D1 is a compact and powerful DALI controller engineered for seamless integration into Casambi wireless lighting systems. With support for DT6 and DT8 protocols, it provides a 50mA DALI bus supply and allows control of up to 25 luminaires. Designed for both residential and commercial applications, it features two push-button inputs for manual control, scene setting, and dimming via the Casambi app. Its small form factor fits easily into switch boxes, making it a versatile and discreet solution for smart lighting installations.
Key Features
-

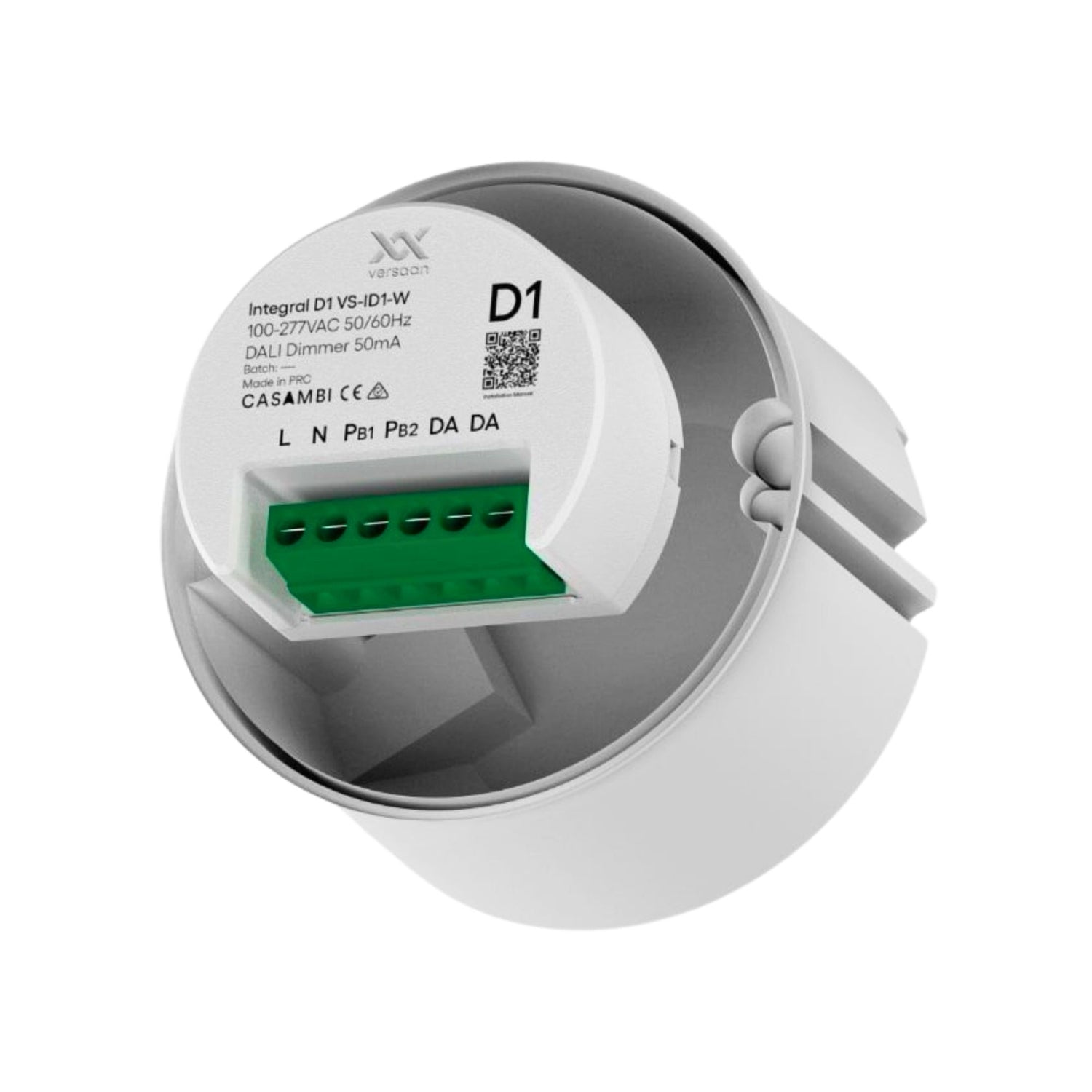

Compact design (52x42.51x22mm) ideal for switch boxes
-
Casambi wireless control including Long Range support
-
Supports DALI DT6 and DT8 control for up to 25 luminaires
-
2x push-button inputs for scene and dimming control
-
Built-in LED indicator for easy identification
-
Loop-in/loop-out wiring with 2.5mm² terminal capacity
-

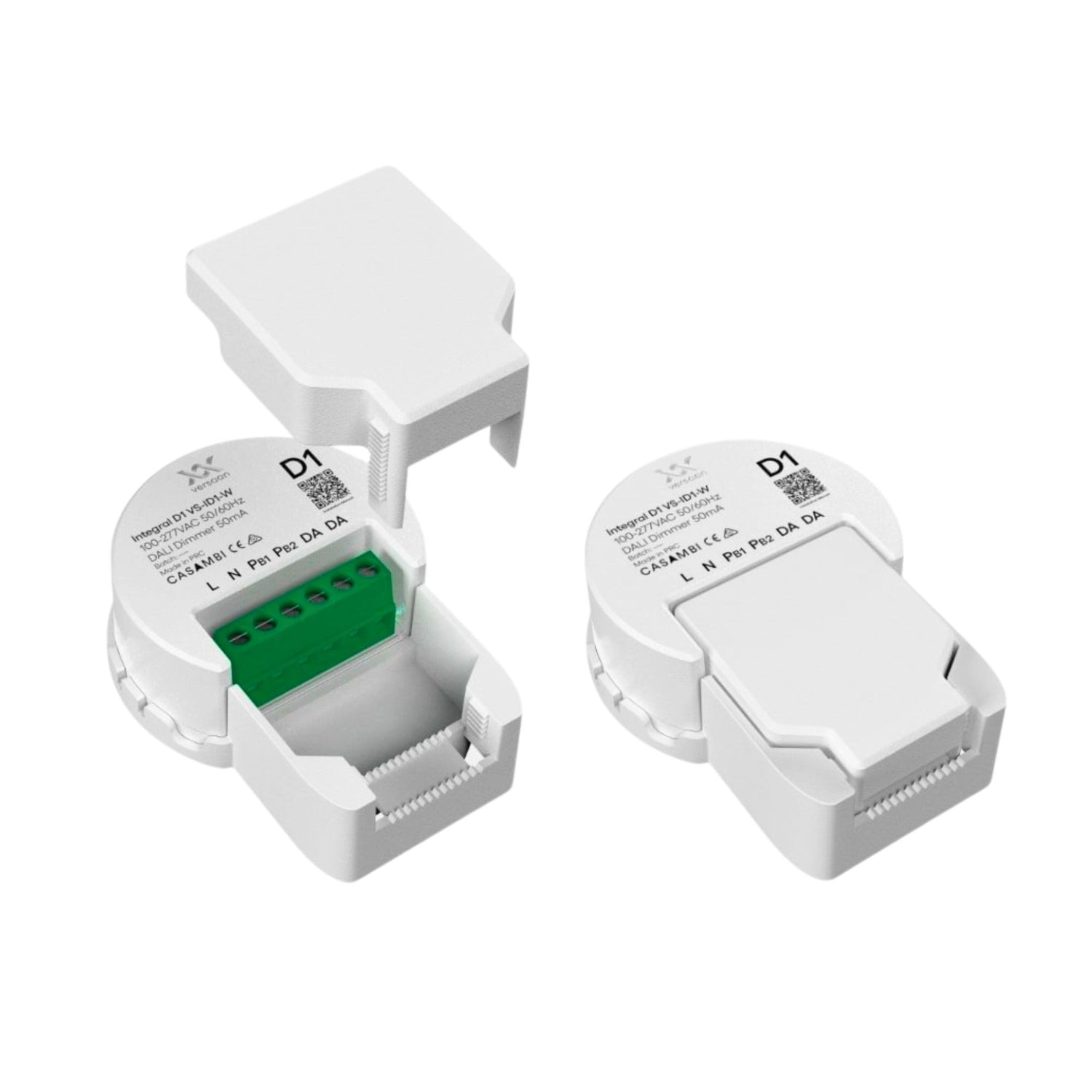

Surface mount kit available for easy installation
-
100–277VAC input range, 50/60Hz
-
Flame-retardant ABS+PC construction
-
IP20 rated with 5-year warranty
-
Wireless range up to 180m (Open Air Line-of-Sight)
Specifications
Specifications
-
BrandVersaan
-
SeriesVersaan Casambi
-
Input Voltage100V~277V
-
Standards MetCE,RCM
-
Operating Temperature0°C~50°C
-
Warranty5 Year
-
Length5.2 cm
-
Width4.25 cm
-
Height2.2 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Versaan Integral D1 used for?
The Versaan Integral D1 is used to bring DALI lighting control into a Casambi wireless lighting system. It is suited for residential and commercial projects where DALI luminaires need to be managed through Casambi-based control.
How many luminaires can the Integral D1 control?
This model can control up to 25 luminaires. It includes a 50mA DALI bus supply, making it appropriate for compact DALI control groups within a Casambi system.
Does the Integral D1 support DT6 and DT8 DALI control?
Yes. The Integral D1 supports both DT6 and DT8 protocols, allowing it to work with compatible DALI and DALI-2 lighting equipment that uses those control types.
Can this converter be controlled from the Casambi app?
Yes. The Integral D1 is designed for Casambi wireless lighting systems and supports control through the Casambi app, including dimming and scene control functions.
Does the Integral D1 include manual control options?
Yes. This model includes two push-button inputs for manual control, scene setting, and dimming. That gives projects a local control option in addition to Casambi app-based control.
What operating temperature range does the Integral D1 support?
The Integral D1 is rated for operation from 0°C to 50°C. It is intended for indoor residential or commercial environments that stay within that temperature range.
What warranty does the Versaan Integral D1 include?
The Versaan Integral D1 has a 5 year warranty period. Its listed product weight is 0.2000 kg.
