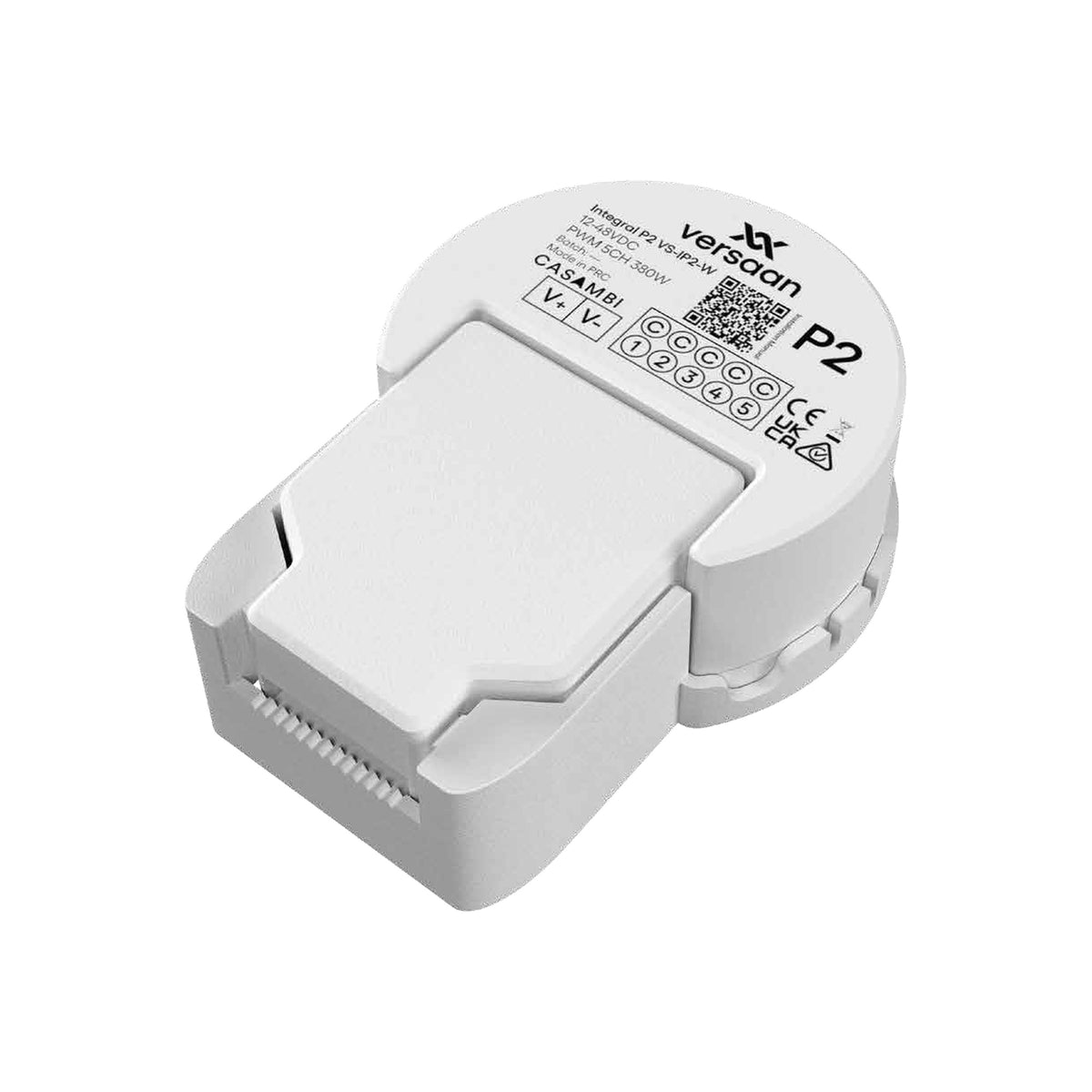

Versaan Integral P2 Casambi to PWM Converter - 5 Channel 380W

surface kit included16kHz flicker free performance5 channels for RGBTW

SKU VS-IP2-W

Log in to see price Trade pricing & online ordering for account holders

Available to order

The Integral P2 is a compact, high-performance PWM LED controller designed for flexible and precise lighting control in Casambi smart environments. With a wide 12–48VDC input range and up to 380W output capacity, the P2 supports single-colour, tunable white, RGB, RGBW and RGBTW LED configurations. Its five-channel architecture adds a dedicated channel over the four-channel P1, ensuring smooth dimming and colour transitions with flicker-free performance at 16kHz. The P2 ships with its surface mount kit included and is ideal for architectural, commercial or residential lighting applications requiring high-frequency, wireless control and advanced automation.

Key Features

5-channel PWM output for Single Colour, Tunable White, RGB, RGBW and RGBTW
12–48VDC input range, up to 380W output
Max load 15A/CH at 12VDC, 12.5A/CH at 24VDC, 8.2A/CH at 48VDC
High-frequency output at 16kHz for flicker-free performance
Seamless Casambi wireless integration, including Long Range support
Wireless range up to 86m, or 160m with Casambi Long Range (open air, line-of-sight)
Surface mount kit included (74.75x55.10x24.69mm)
Screw / push terminals, 2.5mm² in and 1.5mm² out
Mounts on 2x M3 flat head screws at 25mm centres
IP20 flame-retardant ABS+PC enclosure
Max case temperature 60°C
5-year warranty
