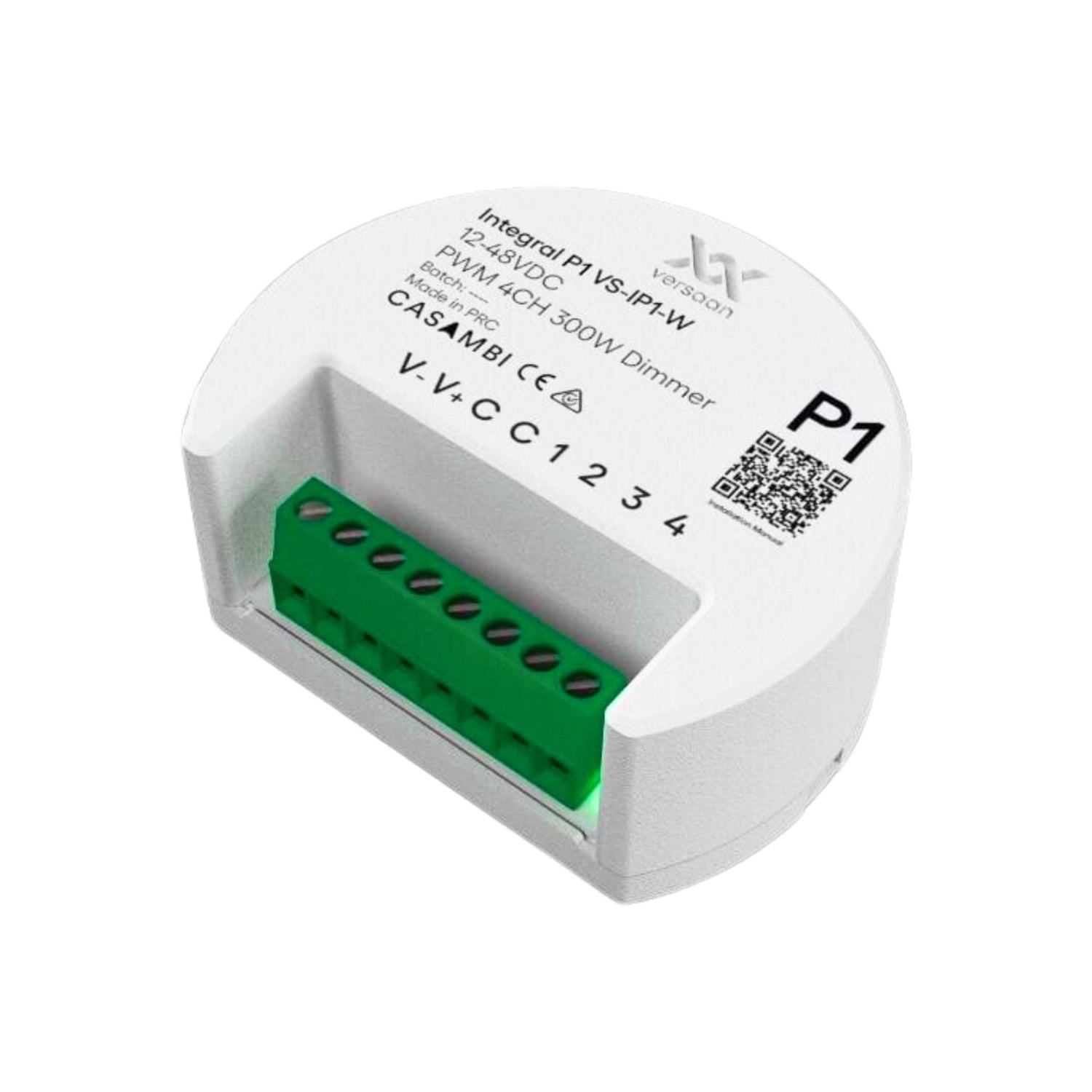

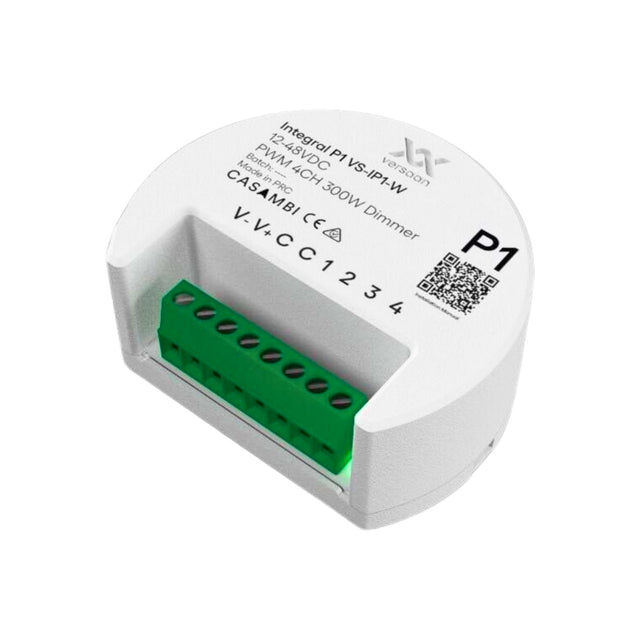

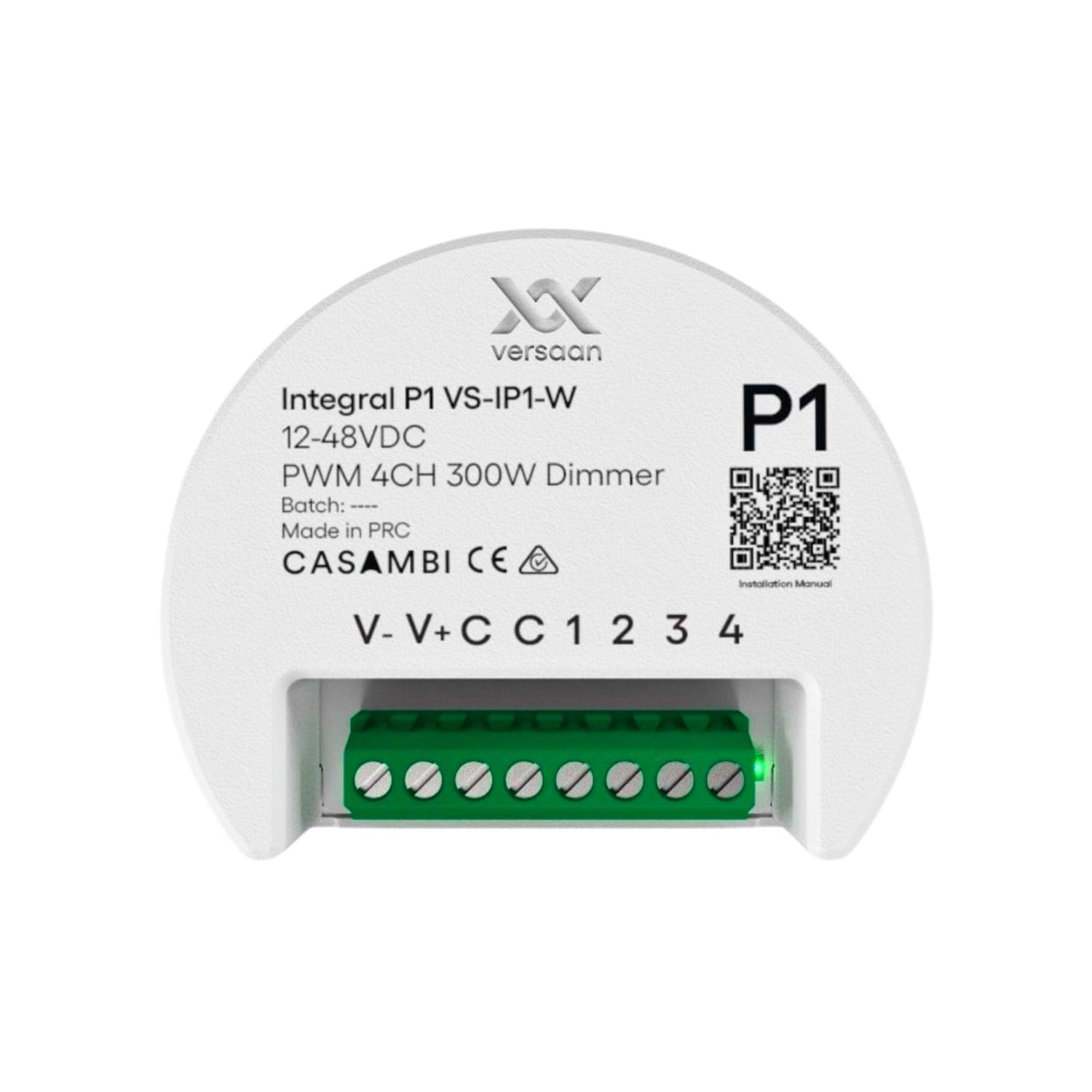

Versaan Integral P1 Casambi to PWM Converter - 4 Channel 300W
Please Login for Pricing
Description
Description
The Integral P1 is a compact, high-performance PWM LED controller designed for flexible and precise lighting control in Casambi smart environments. With a wide 12–48VDC input range and up to 300W output capacity, the P1 supports single-colour, RGB, RGBW, and tunable white LED configurations. Its four-channel architecture ensures smooth dimming and colour transitions with flicker-free performance at 18kHz. The P1’s small form factor fits conveniently into standard switch boxes and is ideal for architectural, commercial, or residential lighting applications requiring high-frequency, wireless control and advanced automation.
Key Features
-
4-channel PWM output for Single Colour, RGB, RGBW, and Tunable White
-
12–48VDC input range, up to 300W output
-
High-frequency output at 18kHz for flicker-free performance
-
Seamless Casambi wireless integration, including Long Range support
-

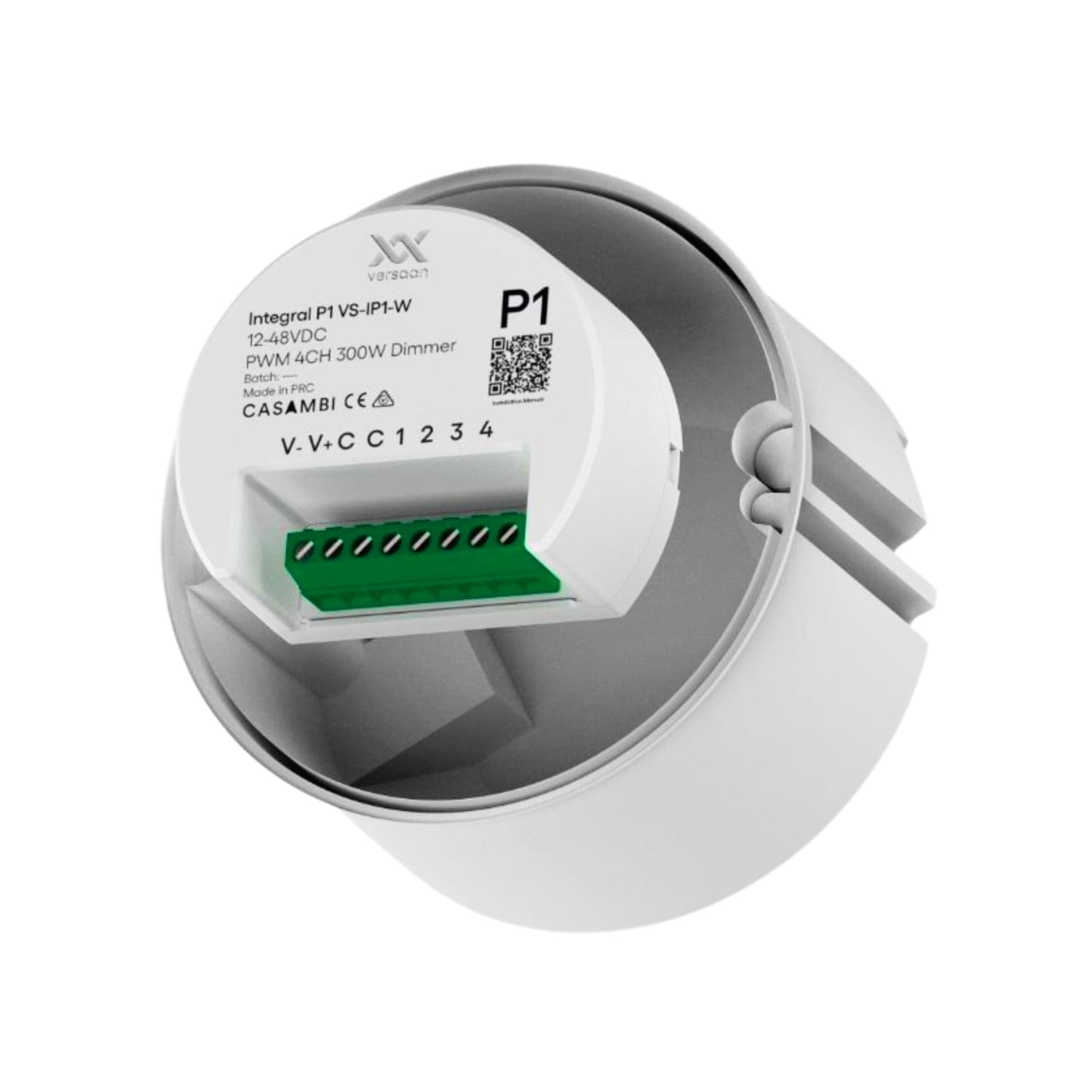

Compact footprint (52x42.51x22mm) fits into switch boxes
-

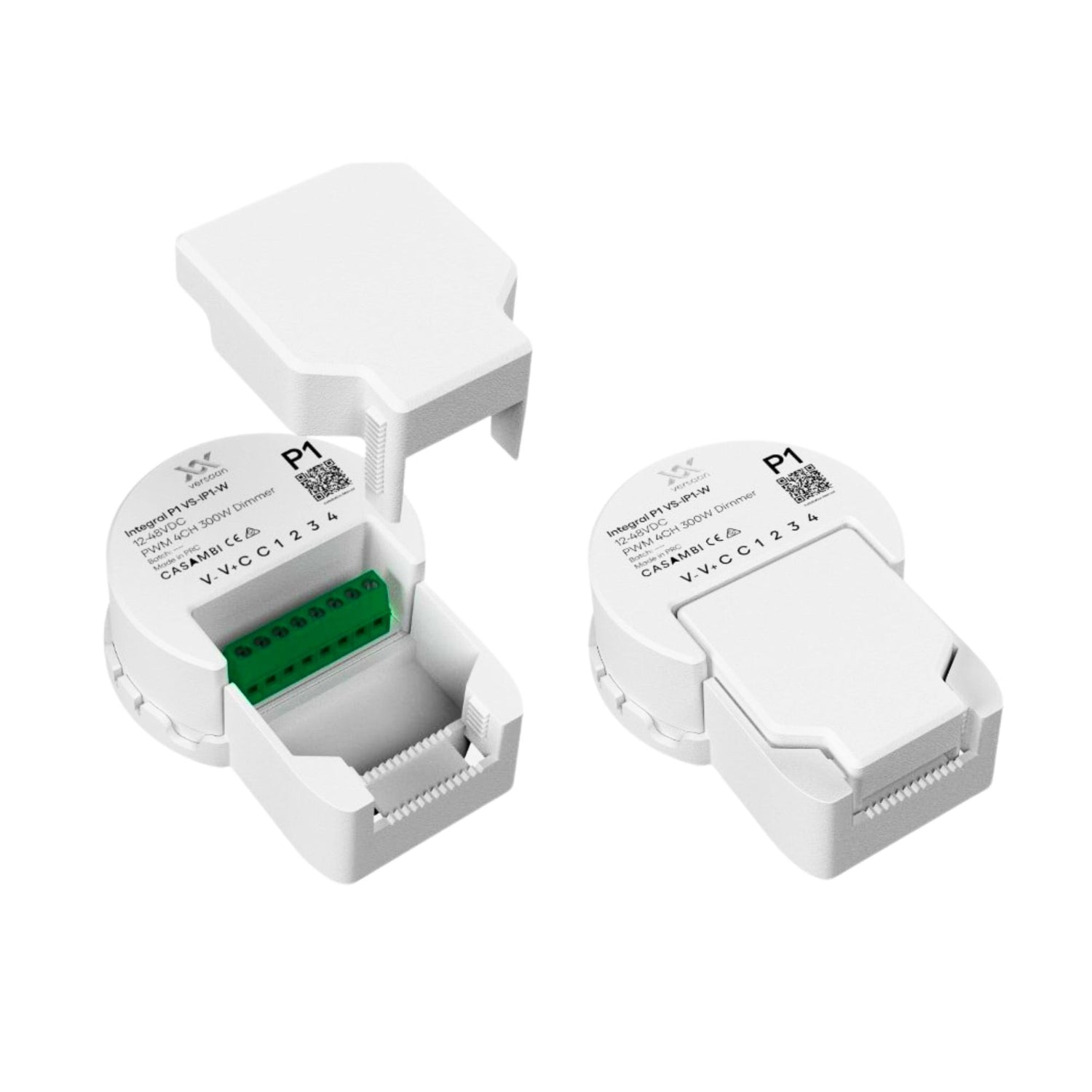

Optional surface mount kit with snap cable clamp
-
Loop-in/loop-out wiring, 1.5 mm² terminal capacity
-
Built-in LED for device identification and pre-commissioning
-
IP20 flame-retardant ABS+PC enclosure
-
Wireless range up to 180m (open air, line-of-sight)
-
Operating temperature: 0°C to 55°C
-
5-year warranty
Specifications
Specifications
-
BrandVersaan
-
SeriesVersaan Casambi
-
Power Rating300 Watt
-
Input Voltage12V~48V
-
Standards MetCE,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~55°C
-
Length5.2 cm
-
Width4.25 cm
-
Height2.2 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Versaan Integral P1 used for?
The Versaan Integral P1 is a Casambi to PWM converter for controlling LED lighting in smart lighting environments. It is suited for single-colour, RGB, RGBW, and tunable white LED applications where four-channel PWM control is required.
How much LED load can the Integral P1 support?
This model is rated for up to 300 W of output capacity. The actual usable load depends on the LED configuration and operating voltage, but the listed product rating for VS-IP1-W is 300 W.
What input voltage range does the VS-IP1-W support?
The Integral P1 supports a wide 12-48 VDC input range. This makes it suitable for low-voltage LED systems within that specified DC range.
What types of LED configurations can this controller handle?
The VS-IP1-W supports single-colour, RGB, RGBW, and tunable white LED configurations. Its four-channel architecture gives it flexibility across common architectural and commercial LED control layouts.
Is the Integral P1 compatible with Casambi lighting control systems?
Yes. The product is designed for use in Casambi smart environments as a Casambi to PWM converter. It is intended for projects that need PWM LED control within a Casambi-based lighting system.
What dimming method does the Integral P1 use?
The Integral P1 uses PWM dimming control. It operates with an 18 kHz PWM frequency, which supports smooth dimming and colour transitions with flicker-free performance as described for this model.
What operating temperature range is specified for this product?
The specified operating temperature range is 0 °C to 55 °C. This should be considered when selecting the product for indoor commercial, architectural, or controlled-environment lighting applications.
