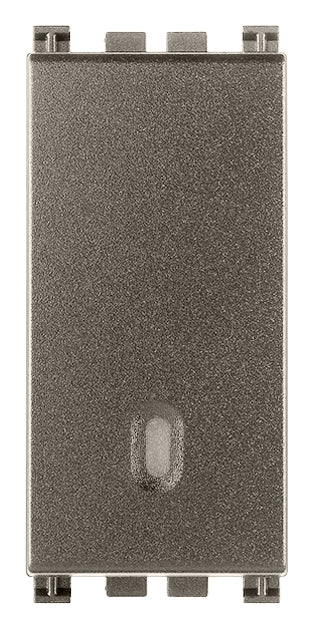

Vimar Arke 1P 16AX 1-Way Switch Metal

1P NO 16A Metal
SKU VM-19001.M
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

VM-19001.M is Vimar ARKÉ 19001.M, 1P 16AX 1-way switch Metal.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, Metal. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-19001.MSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
36.8 mm
Built-in depth
25 mm

Packaging

EAN
8007352594975
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
25 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), PSE (Japan), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), SASO (Saudi Arabia), WEEE Directive, TISI (Thailand)

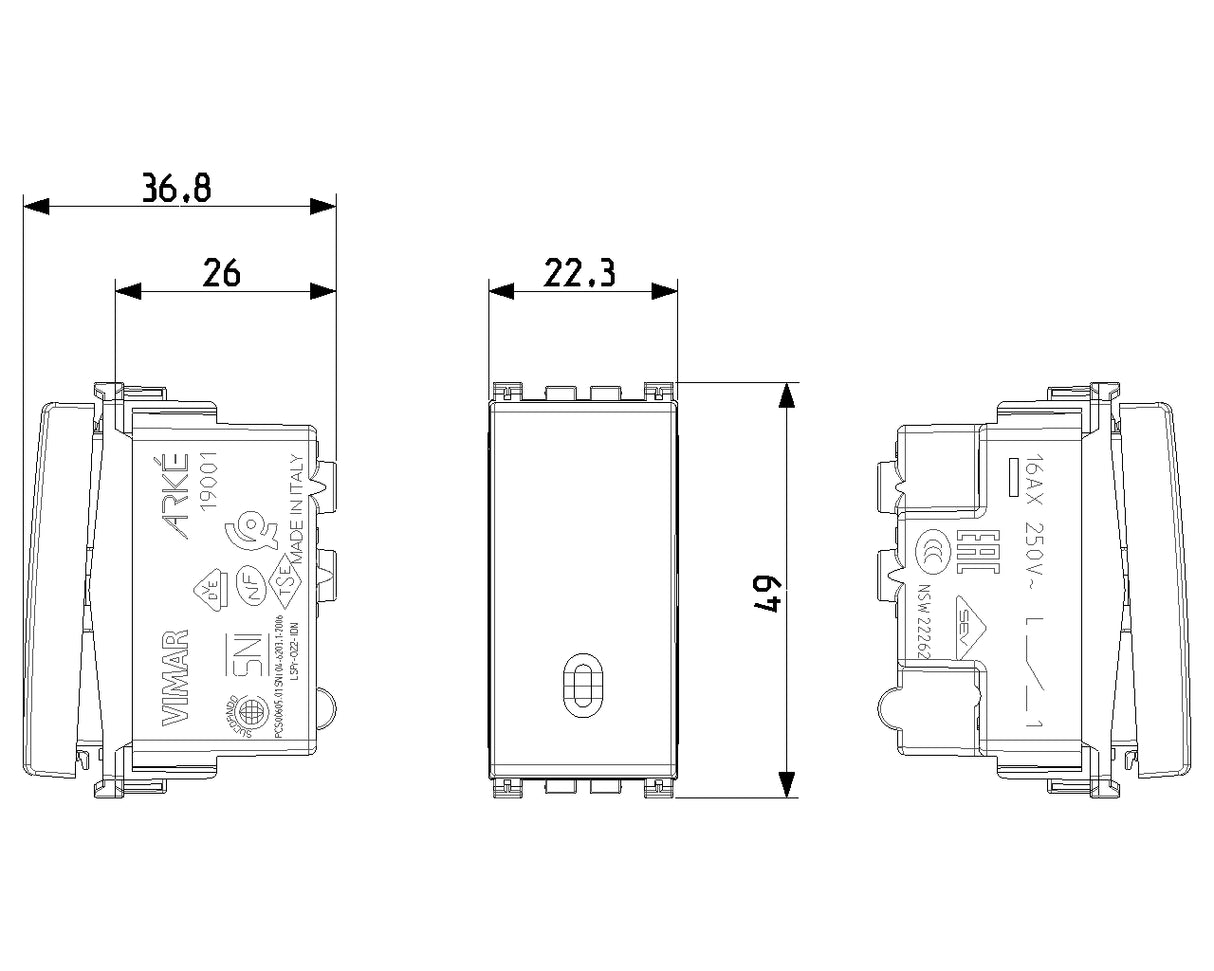

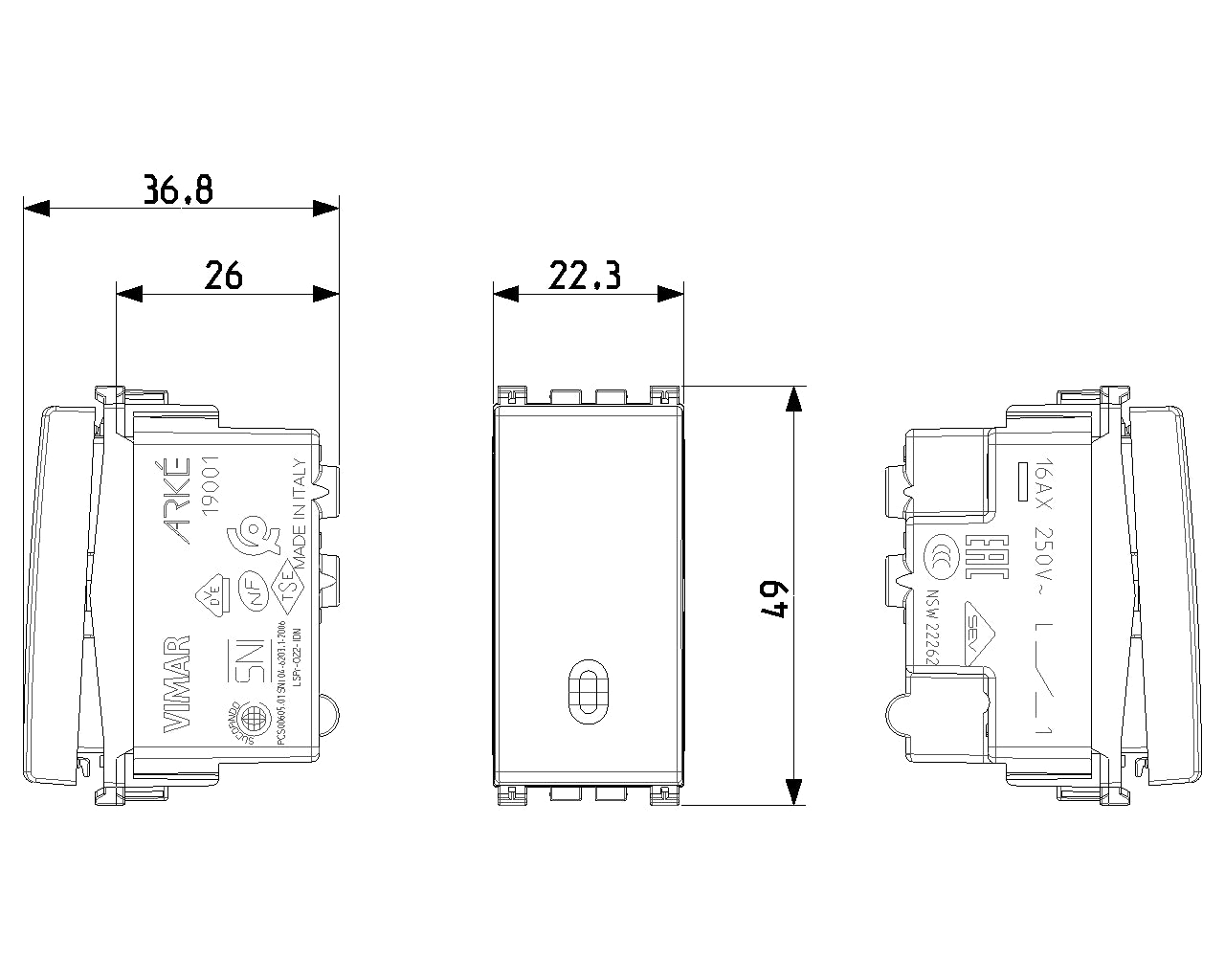

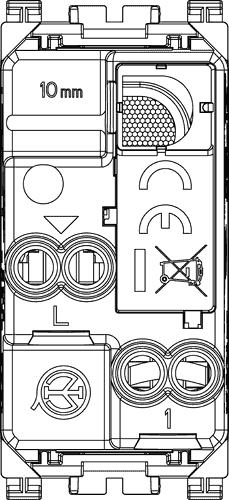

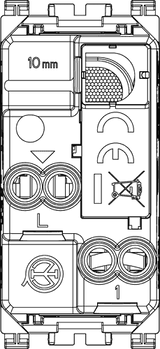

Technical drawings

VM-19001.M Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke 1P 16AX 1-Way Switch Metal designed for?

This model is a 1-way switch intended for controlling a single lighting circuit from one location. It is part of the Vimar Arké range and is aimed at applications where both functional switching and a refined finish are important. Its metal-look styling makes it especially suitable for commercial interiors, hospitality spaces, and premium residential projects.

What makes the Metal version of this Vimar Arke switch different from standard finishes?

The main differentiator is its grey, metal-inspired finish within the Arké design family. Compared with more neutral or basic-looking versions, this model is intended for spaces where the finish contributes to the overall interior style. It combines the same product role with a more distinctive aesthetic.

What is the rated current of the Vimar Arke 1P 16AX 1-Way Switch Metal?

This switch has a rated current of 16 A. That rating identifies the model as a robust switching device within its product category. Buyers specifying components for projects should use this value when checking whether it matches their application requirements.

Is this switch suitable for demanding temperature conditions?

This model is rated for ambient temperatures from -20°C to 50°C. That gives it a useful operating range for many indoor environments where conditions may vary through the year. It is important to confirm that the planned location stays within that stated range.

Is this product part of the Vimar Arke series?

Yes, this switch belongs to the Vimar Arké series. That matters for buyers who are standardizing the visual style and product family across a project. It is specifically identified as an Arké module with a metal finish variant.

What warranty is provided for this switch?

The listed warranty period for this model is 3 years. This gives buyers a clear reference for post-purchase coverage when specifying the product for residential or commercial use. Warranty terms should still be checked against the seller's policy and project location.
