Vimar Arke 1P 16AX 2-Way Switch White

1P NO 16A White
SKU VM-19005.B
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

VM-19005.B is Vimar ARKÉ 19005.B, 1P 16AX 2-way switch white.

1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-19005.BSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
40.5 mm
Built-in depth
25 mm

Packaging

EAN
8007352454507
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
28.7 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), PSE (Japan), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), SASO (Saudi Arabia), WEEE Directive, TISI (Thailand)

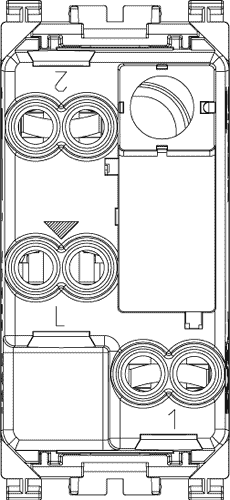

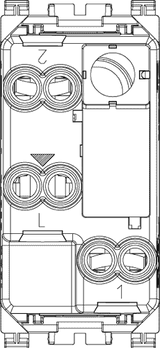

Technical drawings

VM-19005.B Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke 1P 16AX 2-Way Switch White used for?

This model is a 2-way switch module for controlling lighting circuits in spaces that use the Vimar Arké range. Its clean white finish suits commercial, hospitality, and residential interiors where a neutral appearance is preferred. It is intended for buyers who need a branded switch module rather than a decorative plate or full assembled mechanism.

What are the key electrical specifications of this switch?

The Vimar Arke 1P 16AX 2-Way Switch White is rated at 16AX. That makes it a higher-current switching module within its category and suitable for applications that require a clearly stated 16AX rating. The listed product weight is 0.0287 kg, which reflects its compact switch-module format.

Is this switch suitable for demanding temperature conditions?

This model has a stated operating temperature range from -20°C to 50°C. That range supports use in a wide variety of indoor environments where ambient temperatures may vary seasonally. Buyers should still match the product to the conditions of the overall enclosure and project specification.

How does this white version compare with other finishes in the Arké range?

This version is the classic white option, designed for a minimalist look that integrates easily into many interiors. The Arké family also includes more material-driven and design-led finishes, but this specific model is the white variant. It is typically the straightforward choice when visual neutrality and broad compatibility with surrounding decor are priorities.

Is this product part of the Vimar Arké modular series?

Yes, this switch belongs to the Vimar Arké series and is identified as an Arké switch module. For project buyers, that matters because product selection is usually based on matching modules within the same series and design system. The product name and category data both place it within the Arké switch and dimmer family.

What warranty is provided for the Vimar Arke 1P 16AX 2-Way Switch White?

The listed warranty period for this model is 3 years. That provides a defined coverage term for buyers specifying the product for fit-outs, maintenance stock, or repeat project use. Warranty terms should still be reviewed alongside the seller's standard supply conditions.
