Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

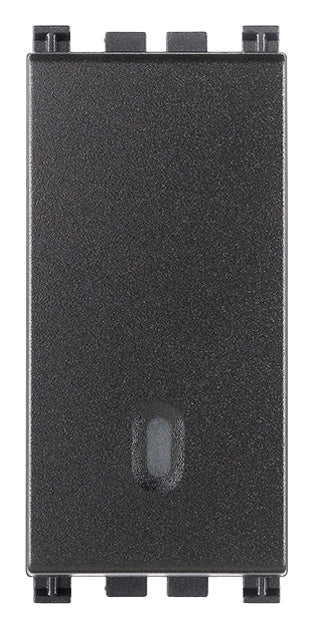

Vimar Arke 1P 16AX 2Way Switch Grey

1P 16A Grey
SKU VM-19005
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19005 is Vimar ARKÉ 19005, 1P 16AX 2-way switch grey.

1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-19005Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
36.8 mm
Built-in depth
25 mm

Packaging

EAN
8007352412682
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
28.7 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), PSE (Japan), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), RoHS UAE, SASO (Saudi Arabia), TISI (Thailand), WEEE Directive

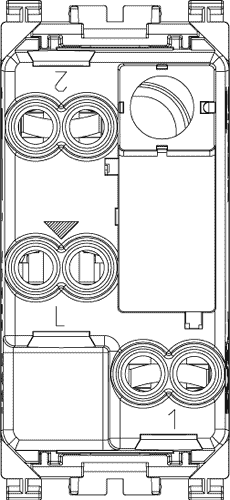

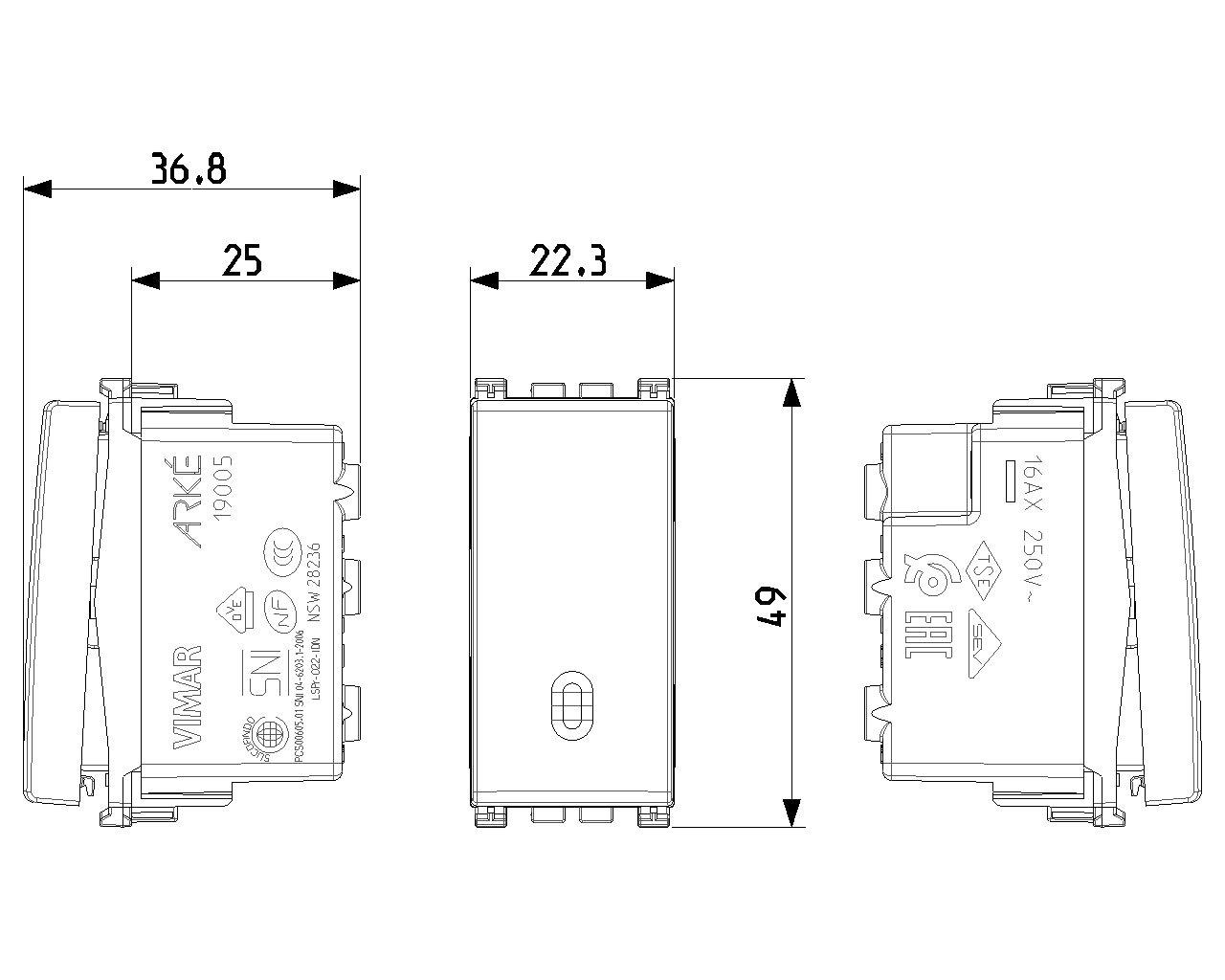

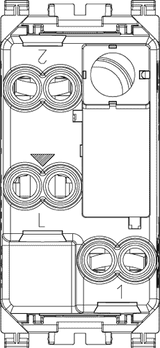

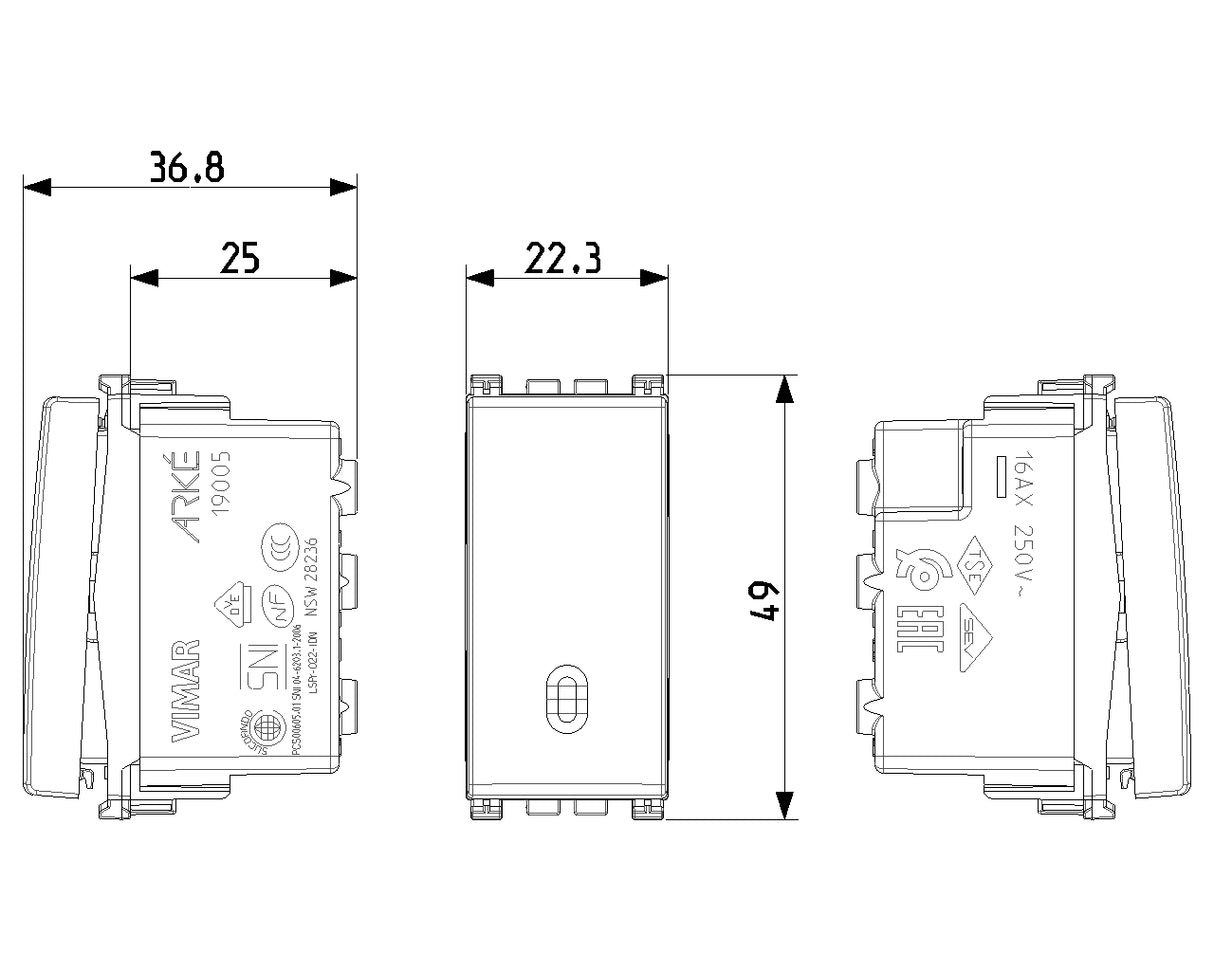

Technical drawings

VM-19005 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke 1P 16AX 2Way Switch Grey used for?

This model is a switch module designed for lighting control in Arke-series electrical installations. It is suited to projects that need a 2-way switch function and a clean grey finish for coordinated residential or commercial interiors.

What are the key specifications of the Vimar Arke 1P 16AX 2Way Switch Grey?

This switch is rated at 16AX with a current rating of 16 A. It comes in a grey finish, weighs 0.0287 kg, and is backed by a 3-year warranty.

Is this switch suitable for demanding indoor environments?

This model is specified for operating temperatures from -20 deg C to 50 deg C. That makes it suitable for a wide range of normal indoor conditions where reliable switching performance is required.

How does this grey version compare with other Arke finishes?

The grey version offers a more contemporary look while staying within the Vimar Arke design language. It is a good fit for projects where a neutral, modern finish is preferred over classic white or more decorative material-led styles.

Is this product part of the Vimar Arke range?

Yes, this switch module belongs to the Vimar Arke series. It is intended for use where Arke-compatible styling and product consistency are important across the installation.
