Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

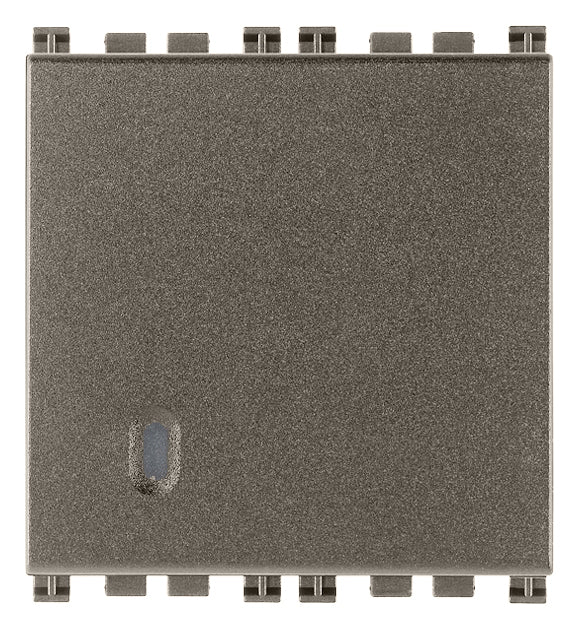

Vimar Arke 1P NO 10A Push Button 2M Metal

1P NO 10A 2M Metal
SKU VM-19008.2.M
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19008.2.M is Vimar ARKÉ 19008.2.M, 1P NO 10A push-button 2M Metal.

1P NO 10 A 250 V~ push button, lightable, replaceable button, Metal - 2 modules

Specifications

VM-19008.2.MSpecifications from the official datasheet

Technical data

Product type
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Operating method
Push button
Number of rockers
1
Number of modules (module system)
200
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
Monitoring contact
No
Mounting method
Built-in
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
44.8 mm
Device height
49 mm
Device depth
36.8 mm

Packaging

EAN
8007352601369
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
32.9 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), SNI-SUCOFINDO Indonesia, ISI (India), TSE (Turkey), CCC (China), NOM (Mexico), WEEE Directive, SASO (Saudi Arabia)

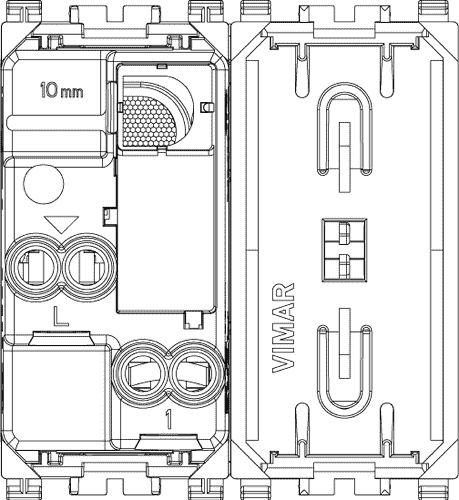

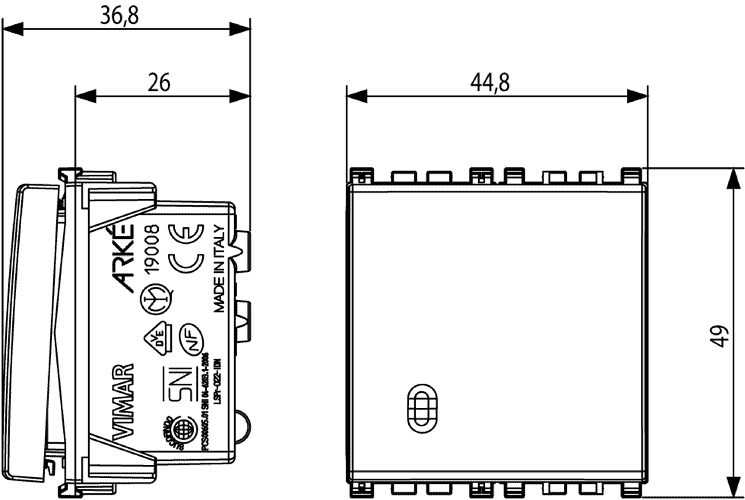

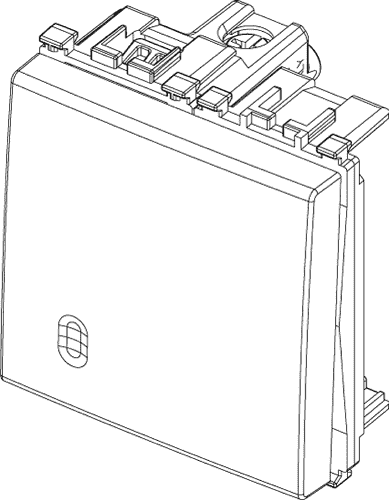

Technical drawings

VM-19008.2.M Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke 1P NO 10A Push Button 2M Metal used for?

This model is a push button module designed for control points in Vimar Arke systems where a normally open push action is required. It is suited to projects that need a modular switch component with a refined metal-look finish for residential or hospitality interiors.

What are the key specifications of this push button?

The Vimar Arke 1P NO 10A Push Button 2M Metal is rated at 10 A and comes in a 2-module format. It has a grey metal finish, a weight of 0.0329 kg, and includes a 3-year warranty period.

What does '1P NO' mean on this Vimar Arke push button?

In this model name, '1P NO' identifies it as a single-pole, normally open push button. That makes it appropriate for applications where the contact is only engaged while the button is being pressed.

Is this product a good match for design-focused interiors?

Yes. This version is part of the Vimar Arké Metal range, which is positioned for spaces that want a more distinctive material-driven look while keeping a clean, contemporary appearance. The grey metallic finish makes it especially suitable for residential spaces and hotels that emphasize detail and style.

What temperature range can this push button handle?

This model is specified for ambient temperatures from -20 °C to 50 °C. That range supports use in a wide variety of normal indoor operating environments within its stated limits.

Is this push button part of the Vimar Arke modular range?

Yes. This product belongs to the Vimar Arke series and uses a 2-module format, making it suitable for projects built around that range. Buyers looking to maintain a consistent Arke aesthetic and product family can use this model as part of that selection.
