Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke 1P NO 10A Single Push Button Grey

1P NO 10A Grey
SKU VM-19008
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

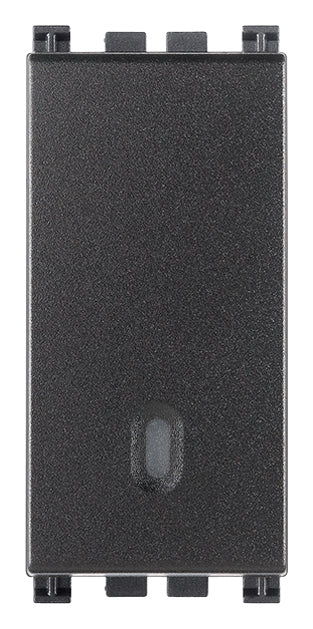

VM-19008 is Vimar ARKÉ 19008, 1P NO 10A push button grey.

1P NO 10 A 250 V~ push button, lightable, replaceable button, grey

Specifications

VM-19008Specifications from the official datasheet

Technical data

Product type
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Operating method
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
Monitoring contact
No
Mounting method
Built-in
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22.3 mm
Device height
49 mm
Device depth
36.9 mm

Packaging

EAN
8007352413023
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
25 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), SNI-SUCOFINDO Indonesia, TSE (Turkey), Product Environm. Profile, CCC (China), RoHS UAE, NOM (Mexico), SASO (Saudi Arabia), WEEE Directive

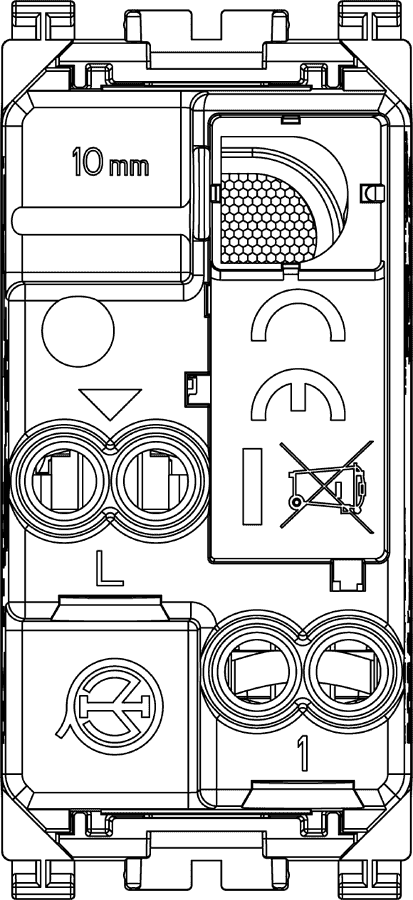

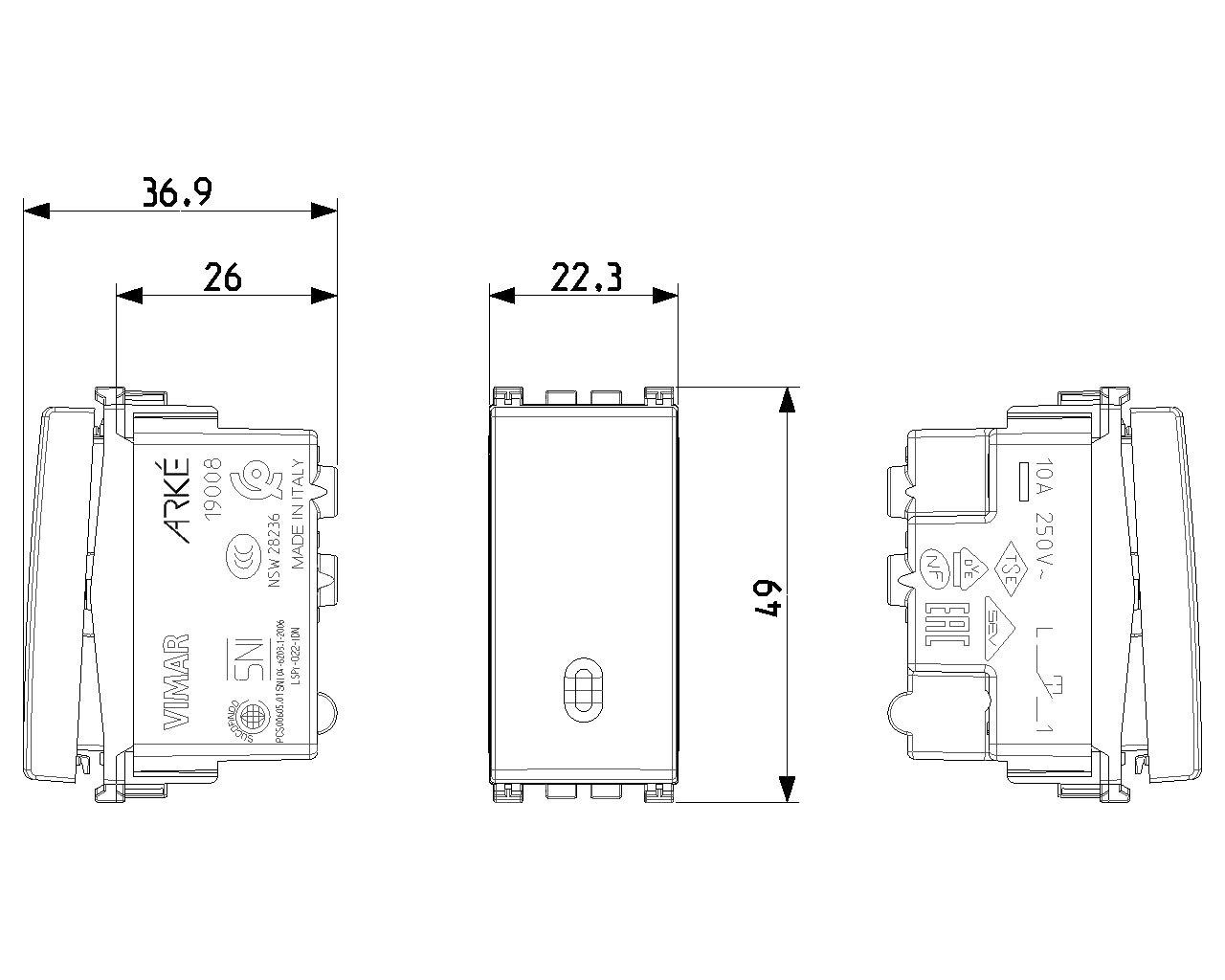

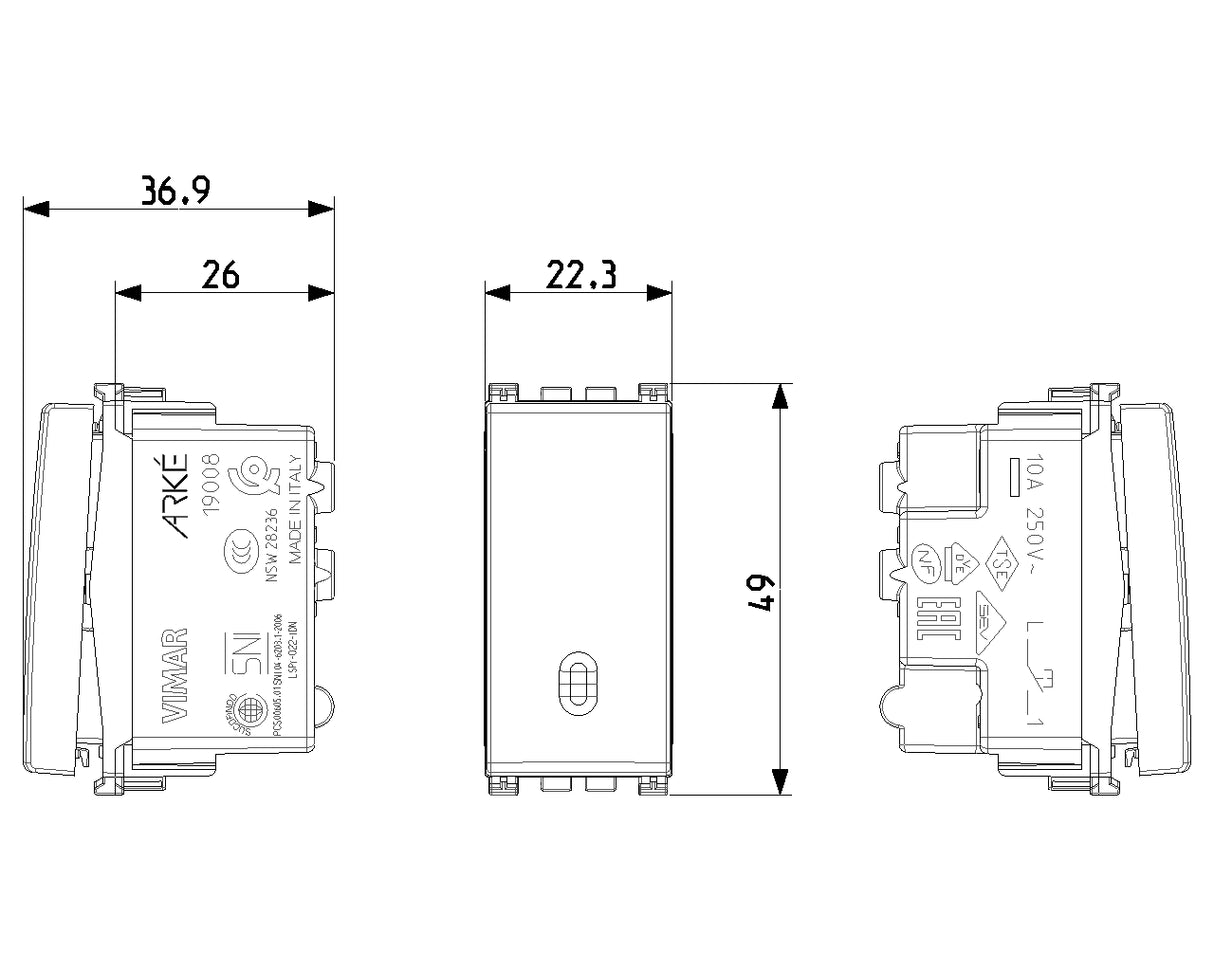

Technical drawings

VM-19008 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke 1P NO 10A Single Push Button Grey used for?

This model is a single push button module intended for switch applications within the Vimar Arke range. It suits commercial and residential projects that need a compact control component with a clean grey finish. It is a practical choice where a momentary push-button style control is required.

What are the key specifications of SKU VM-19008?

The Vimar Arke 1P NO 10A Single Push Button Grey is rated at 10A. It has a grey finish, weighs 0.0252 kg, and includes a 3-year warranty. Its operating temperature range is from -20°C to 50°C.

Is this push button part of the Vimar Arke series?

Yes, this product is part of the Vimar Arke series. The product name and category data both place it within the Arke switch and dimmer module family. That makes it relevant for buyers specifically sourcing Arke-branded modular devices.

How does this model differ from a standard light switch?

This product is described as a single push button rather than a standard fixed-position switch. Buyers comparing product types should note that it belongs to the push-button module category within the Arke series. That distinction matters when matching the correct control style for a project specification.

Can this push button be used in demanding temperature conditions?

This model is specified for use in ambient temperatures from -20°C up to 50°C. That makes it suitable for a broad range of normal indoor operating environments and some more demanding conditions within its stated limits. Buyers should keep use within that published temperature range.
