Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

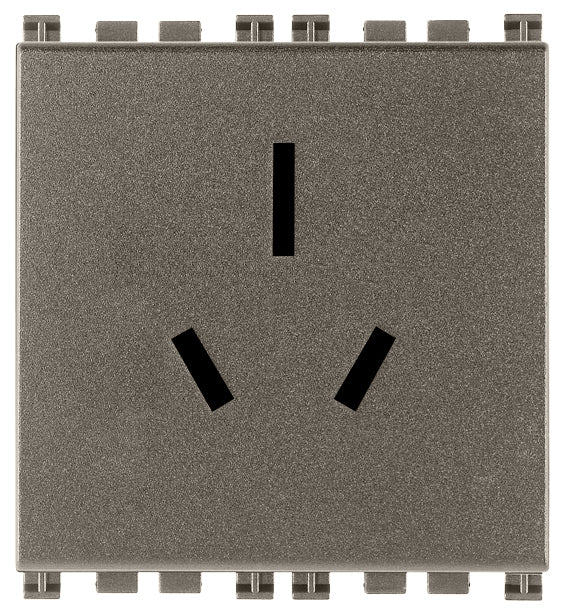

Vimar Arke 2P+E 15A Australian Sicury Outlet Aluminium

2P+E 15A Aluminium
SKU VM-19262.M
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19262.M is Vimar ARKÉ 19262.M, 2P+E 15A Australian SICURY outlet Metal.

2P+E 15 A 250 V~ SICURY socket outlet, Australian standard, Metal - 2 modules

Specifications

VM-19262.MSpecifications from the official datasheet

Technical data

Product type
Socket outlet
Number of socket outlets
1
Number of modules (module system)
2
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Aluminium
RAL-number (similar)
9007
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Frequency
50 - 60 HZ
Suitable for degree of protection (IP)
IP20
Device width
44.7 mm
Device height
49 mm
Device depth
38.9 mm

Packaging

EAN
8007352596986
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
44.8 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), RCM (Australia), WEEE Directive

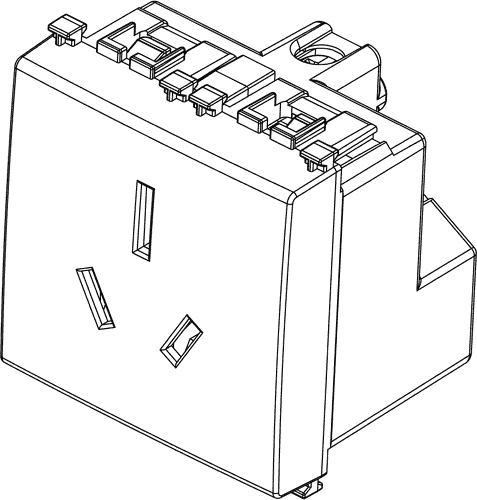

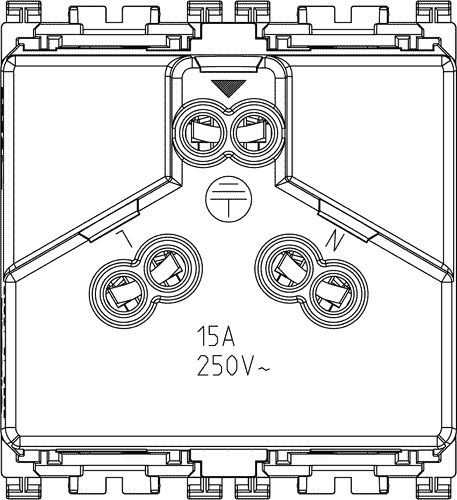

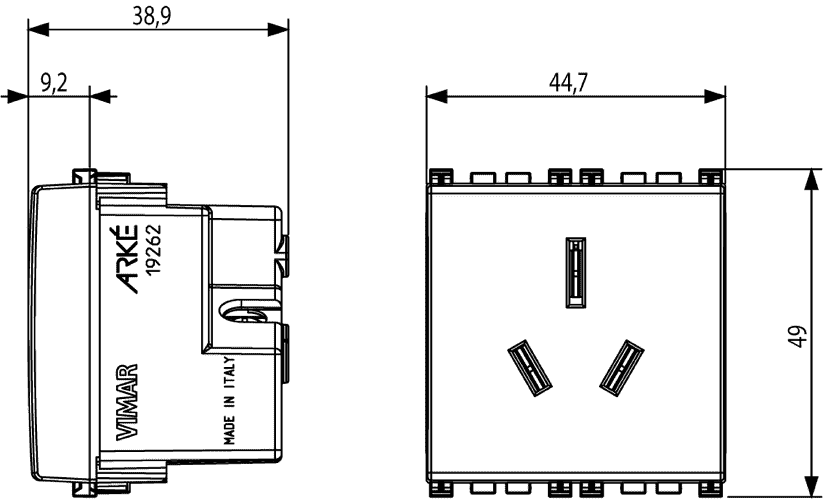

Technical drawings

VM-19262.M Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke VM-19262.M used for?

The VM-19262.M is a Vimar Arke switch/socket module for Australian-style 2P+E outlet applications. It is suited to residential, hotel, and commercial interiors where an aluminium finish is preferred.

What current rating does this outlet have?

This Vimar Arke outlet is rated at 15 A. That rating should be matched to the project requirements and applicable electrical standards.

Is this outlet part of the Vimar Arke series?

Yes, this product belongs to the Vimar Arke range. It is listed under Arke socket and module categories, making it relevant for projects using the Vimar Arke design series.

What temperature range is specified for this model?

The VM-19262.M is specified for operation from -20 °C to 50 °C. This makes it suitable for typical indoor residential, hospitality, and commercial environments within that range.

Why choose the aluminium finish version?

The aluminium finish provides a metallic look from the Vimar Arke Metal style range. It is a good choice where the design brief calls for a contemporary, material-driven finish rather than a plain white appearance.

What warranty period applies to this product?

This Vimar Arke 2P+E 15A Australian Sicury Outlet is listed with a 3-year warranty period. The warranty applies to this specific model, SKU VM-19262.M.
