Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

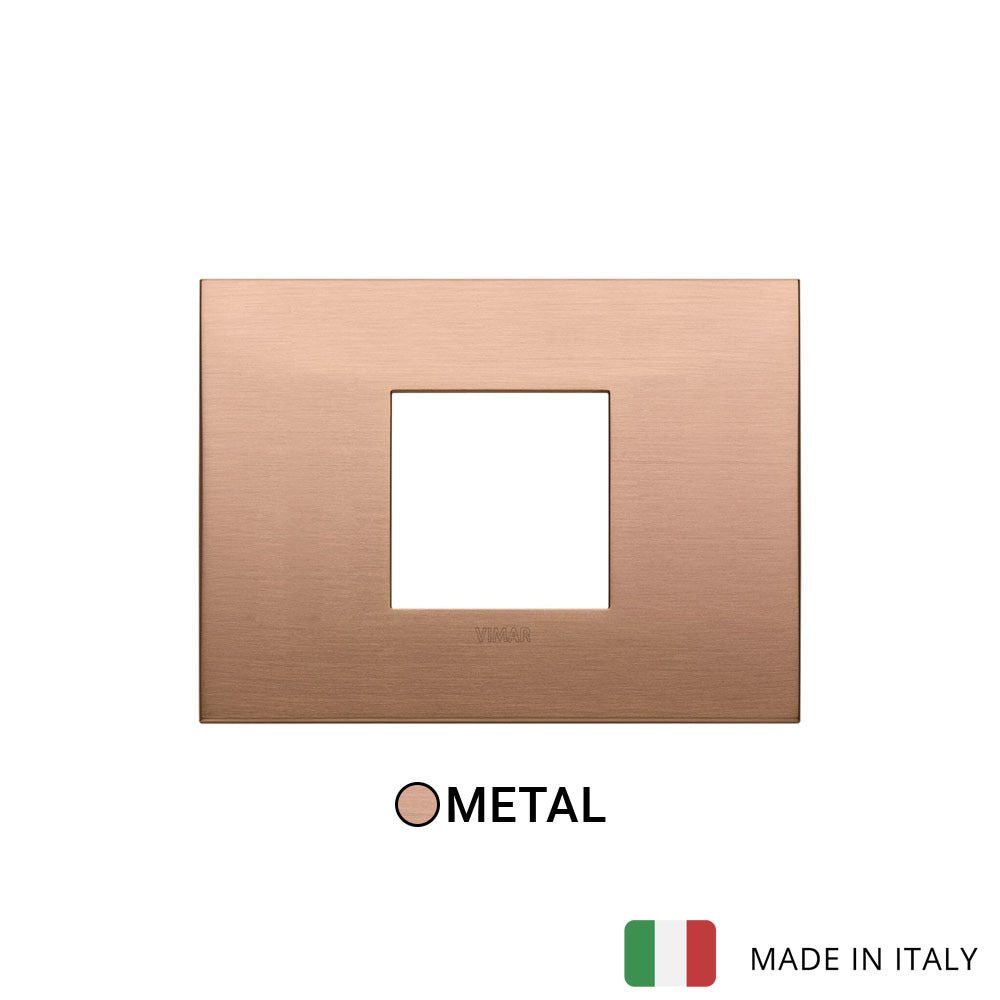

Vimar Arke Classic Plate 2centrM Metal Brushed Copper

2 Module Center Classic Brushed Copper
SKU VM-19652.11
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19652.11 is Vimar ARKÉ 19652.11, classic 2MC cover plate, brushed copper.

Classic 2-module central cover plate, metal, brushed copper

Specifications

VM-19652.11Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Matt
RAL-number (similar)
3012
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.6 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352602120
Packed size (cm)
12.75 × 9.5 × 1.62
Packed weight
126 g
Pieces per box
5

Certifications

Certifications
CE marking (EU)

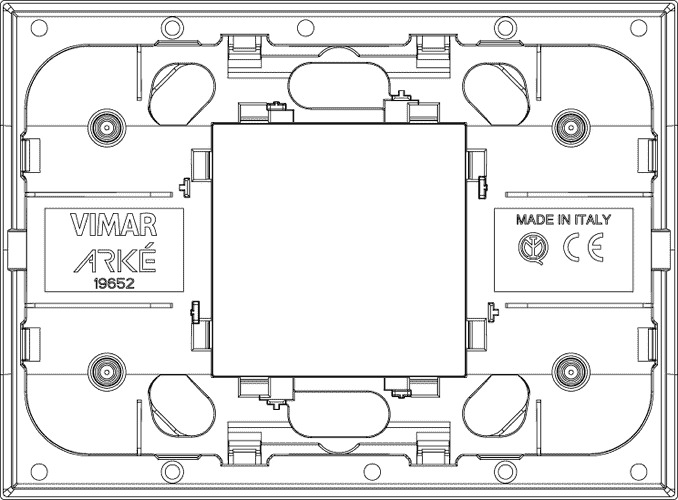

Technical drawings

VM-19652.11 Drawings
Drawings

Downloads

FAQ

What is the VM-19652.11 used for?

The VM-19652.11 is a Vimar Arke Classic cover plate for light switch and socket applications. It is intended for buyers selecting a brushed copper metal finish within the Vimar Arke range.

What finish does this Vimar Arke Classic plate have?

This model has a brushed copper finish. The product description identifies it as a processed zamak plate with a special treatment designed to make the material shinier.

Is the VM-19652.11 suitable for metal-finish interior projects?

Yes, this plate is specifically described as a refined interpretation of popular metals used in interior design. Its brushed copper colour is suited to projects where the visible switch plate finish needs to coordinate with warm metallic details.

What temperature range is specified for this cover plate?

The specified operating temperature range is -20 °C to 50 °C. This makes the listed environmental tolerance clear for procurement and specification checks.

How much does the VM-19652.11 weigh?

The listed weight for this model is 0.1260 kg. This can help when estimating shipment weight or comparing similar cover plate options.

What warranty period is listed for this product?

The VM-19652.11 has a listed warranty period of 3 years. Buyers should keep the SKU and purchase documentation for warranty reference.
