Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Classic Plate 3M Metal Matt Slate Grey

3 Module Classic Matt Slate Grey
SKU VM-19653.02
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

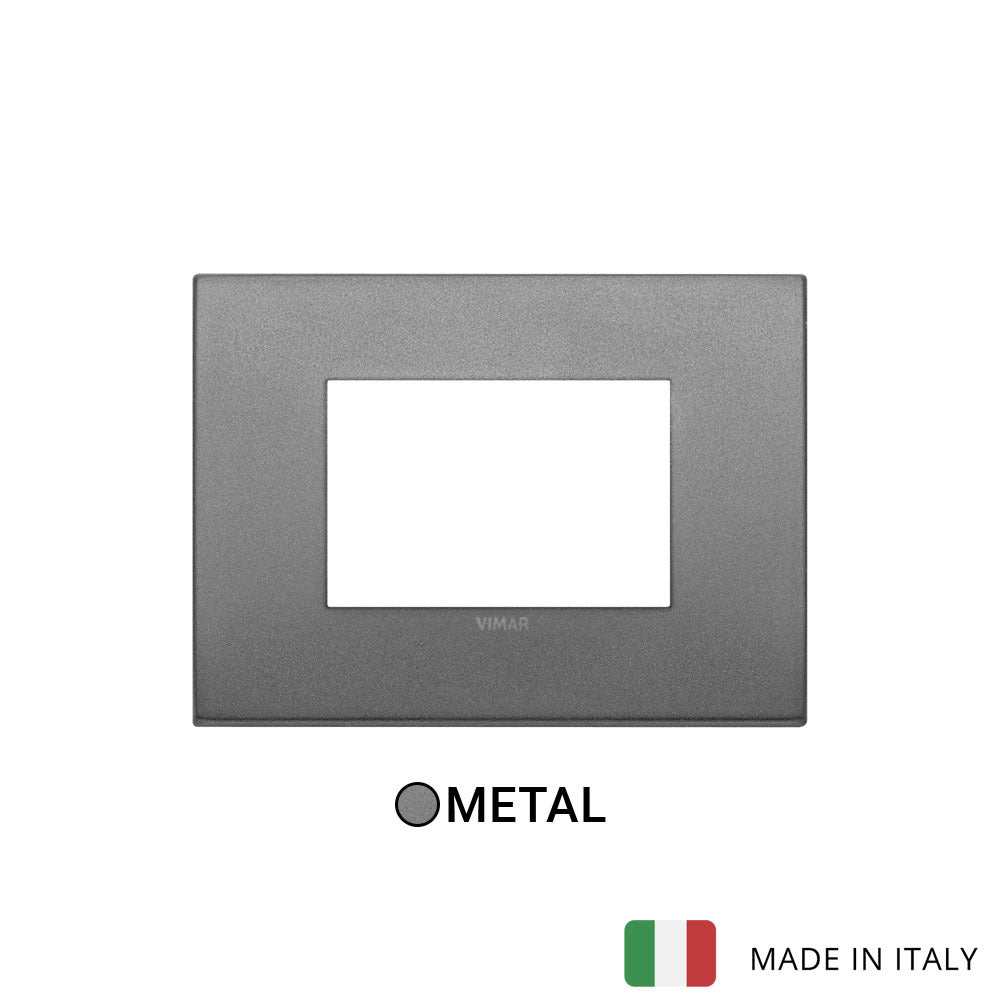

VM-19653.02 is Vimar ARKÉ 19653.02, classic plate 3M metal matt slate.

3-module Classic cover plate, metal, matt slate

Specifications

VM-19653.02Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.6 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352446021
Packed size (cm)
12.75 × 9.5 × 1.62
Packed weight
113.2 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

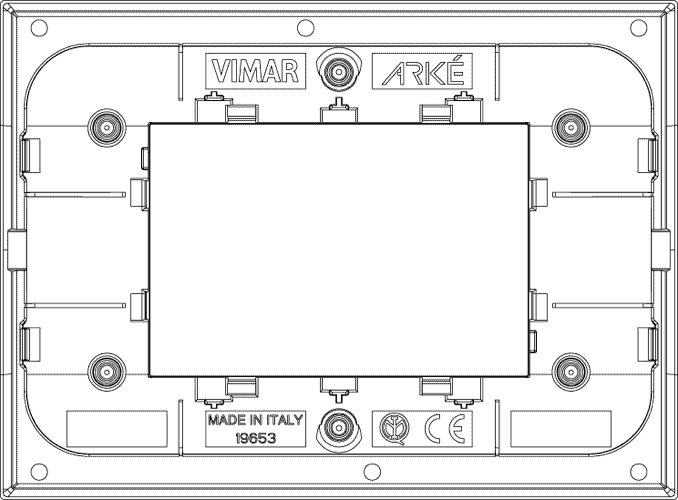

Technical drawings

VM-19653.02 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Classic Plate 3M Metal Matt Slate Grey used for?

The VM-19653.02 is a cover plate for Vimar Arké switch and socket layouts. It is intended for product pages where a 3M Arké cover plate with a matt slate grey metal finish is required.

What material is this Vimar Arké cover plate made from?

This model is made from painted zamak. The material gives the Arké plate a more high-tech appearance while supporting the matt slate grey finish.

What colour and finish does VM-19653.02 have?

This cover plate has a grey colour finish. The product name specifies it as Metal Matt Slate Grey, giving it a muted metallic appearance for Arké switch ranges.

Is this plate part of the Vimar Arké range?

Yes, VM-19653.02 belongs to the Vimar Arké cover plate range. It is listed under Arké switch cover and Vimar Arké module categories.

What temperature range is this cover plate rated for?

The specified operating temperature range is from -20 °C to 50 °C. This makes the product suitable for environments that stay within those listed limits.

What warranty period applies to this product?

The VM-19653.02 has a listed warranty period of 3 years. Buyers should use this warranty value when comparing it with other Vimar Arké cover plate options.
