Vimar

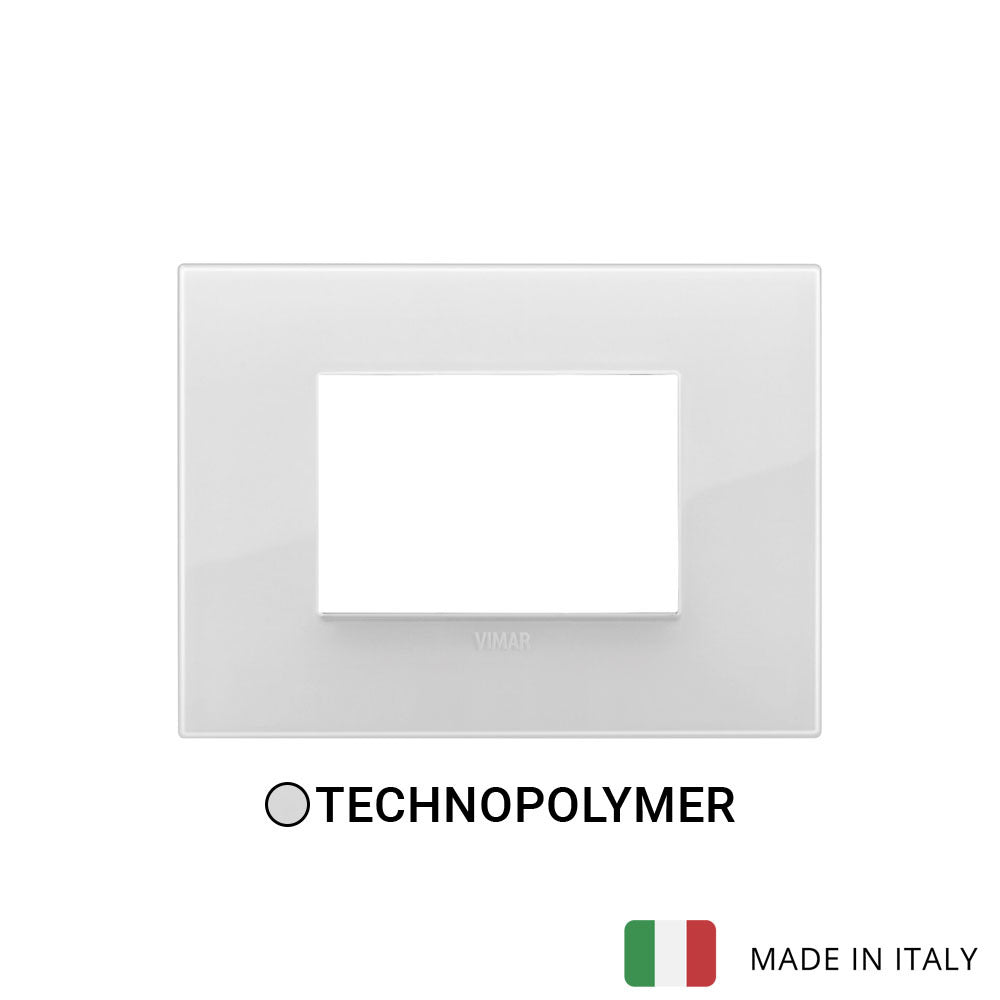

Vimar Arke Classic Plate 3M Reflex Ice White

3 Module Classic White
SKU VM-19653.66
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19653.66 is Vimar ARKÉ 19653.66, classic 3M Reflex ice cover plate.

Classic 3-module cover plate, technopolymer, Reflex ice

Specifications

VM-19653.66Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
9.1 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352552289
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
38 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

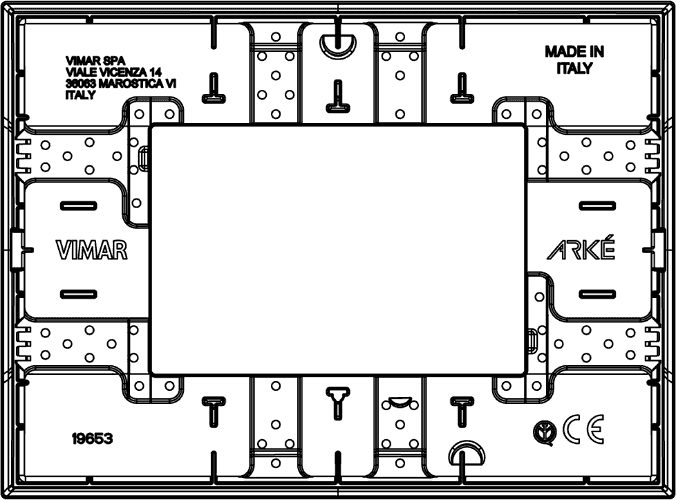

Technical drawings

VM-19653.66 Drawings
Drawings

Downloads

FAQ

What product series is the Vimar VM-19653.66 plate for?

The VM-19653.66 is a cover plate from the Vimar Arké Classic range. It is listed for Arké switch cover applications and is intended for use within the Vimar Arké system.

What colour and finish is this Vimar Arké Classic plate?

This model is Reflex Ice White, with the finish colour specified as white. It is suited to projects where a clean, minimalist white switch plate is required.

Where is this Vimar Arké Classic 3M plate commonly used?

This plate is suitable for residential, hotel, and commercial interiors using the Vimar Arké range. Its white finish is designed to blend with a wide range of modern interior styles.

What temperature range is this cover plate rated for?

The specified operating temperature range for this model is -20 °C to 50 °C. This makes it suitable for typical indoor environments within that stated range.

How much does the Vimar VM-19653.66 plate weigh?

The listed weight for the VM-19653.66 is 0.0380 kg. This lightweight plastic cover plate is part of the Vimar Arké Classic switch cover range.

What warranty period is listed for this product?

The warranty period shown for this Vimar Arké Classic plate is 3 years. This applies to the VM-19653.66 model as specified in the product data.
