Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

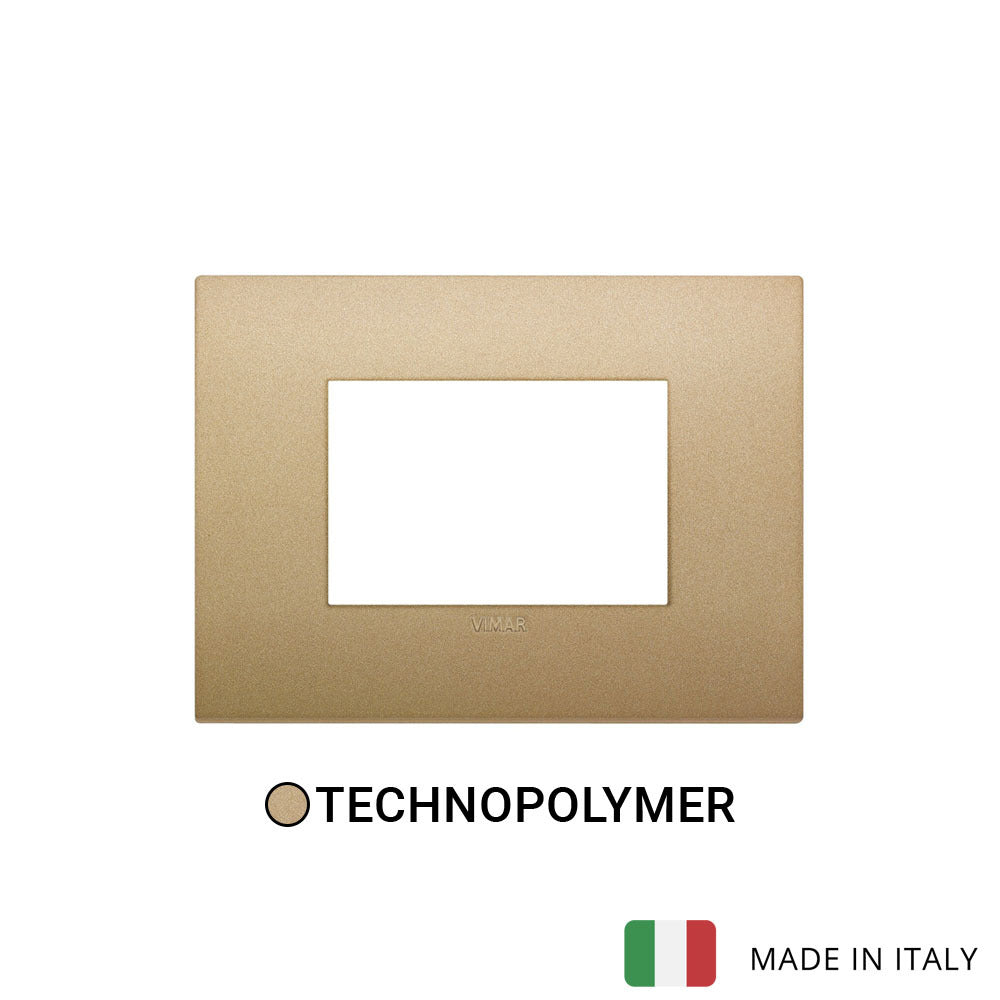

Vimar Arke Classic Plate 3M Technopolymer Matt Gold

3 Module Classic Gold
SKU VM-19653.78
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19653.78 is Vimar ARKÉ 19653.78, classic plate 3M technopolymer matt gold.

3-module Classic cover plate, technopolymer, matt gold

Specifications

VM-19653.78Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.6 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352446229
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
20.3 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-19653.78 Drawings
Drawings

Downloads

FAQ

What product range is the Vimar VM-19653.78 plate designed for?

The VM-19653.78 is a cover plate for the Vimar Arke range. It is identified as a Classic Plate 3M, so it is intended for Arke 3-module switch and socket configurations that use matching Vimar Arke components.

What material is this Vimar Arke Classic Plate made from?

This model is made from technopolymer. The product description notes a special painted finish that creates a metallic effect while keeping the plate in the plastic material category.

What finish does the VM-19653.78 plate have?

The VM-19653.78 has a matt gold finish. It is designed to give a metallic visual effect with a modern, decorative appearance for matching Vimar Arke switch points.

What temperature range is this switch cover plate rated for?

This Vimar Arke cover plate is specified for temperatures from -20 °C to 50 °C. That range is useful for checking suitability in indoor commercial or residential environments where the ambient temperature stays within those limits.

How heavy is the Vimar Arke Classic Plate 3M Matt Gold?

The listed weight for SKU VM-19653.78 is 0.0203 kg. This makes it a lightweight cover plate suitable for standard product stocking, handling, and specification on B2B orders.

What warranty period applies to this model?

The VM-19653.78 is listed with a 3-year warranty period. Buyers should use the SKU and product name when checking warranty coverage or matching it against project documentation.
