Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

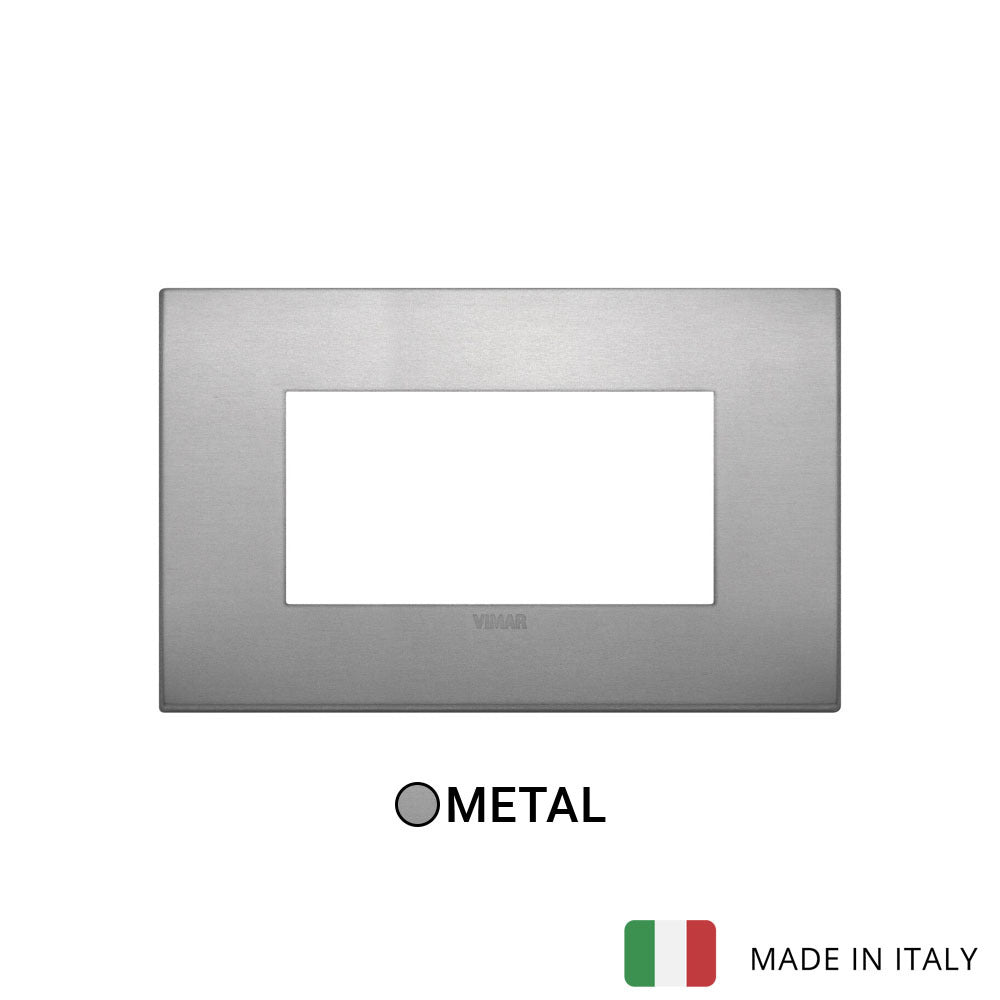

Vimar Arke Classic Plate 4M Aluminium Lava

4 Module Classic Aluminium Lava
SKU VM-19654.16
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19654.16 is Vimar ARKÉ 19654.16, classic plate 4M aluminium lava.

4-module Classic cover plate, aluminium, lava

Specifications

VM-19654.16Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
7048
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
8.6 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352439429
Packed size (cm)
15 × 9.6 × 1.6
Packed weight
54 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

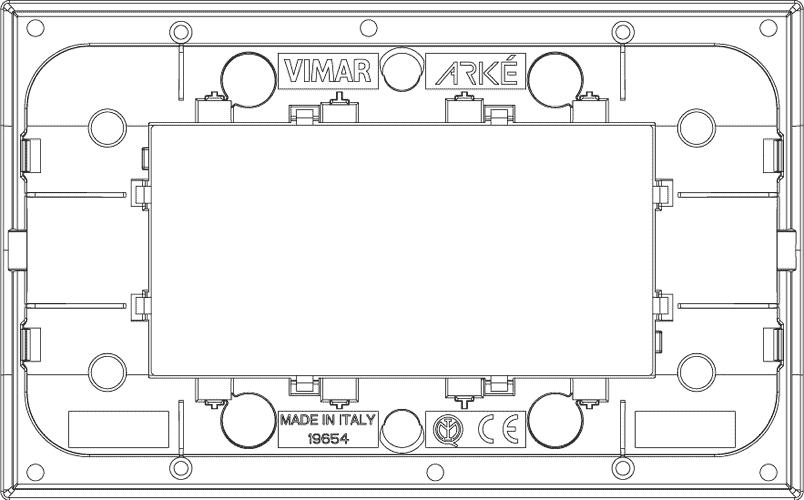

Technical drawings

VM-19654.16 Drawings
Drawings

Downloads

FAQ

What product series is the Vimar VM-19654.16 plate designed for?

The VM-19654.16 is a cover plate from the Vimar Arké Classic range. It is listed for Arké cover plate and Arké module categories, making it relevant for buyers selecting parts within the Vimar Arké system.

What finish does the Vimar Arke Classic Plate 4M Aluminium Lava have?

This model has an aluminium finish in the lava colour version. The description highlights aluminium as a modern, technological material used to support the contemporary look of the Arké range.

Where is this Vimar Arké Classic plate typically used?

This product is a switch cover plate for light switch and socket applications within the Vimar Arké range. Its aluminium lava finish makes it suitable for projects where a contemporary metal appearance is required.

What temperature range is specified for the VM-19654.16?

The specified operating temperature range is from -20 °C to 50 °C. This helps buyers confirm whether the plate is appropriate for the expected ambient conditions of their project.

How much does the Vimar VM-19654.16 cover plate weigh?

The listed weight for this model is 0.0540 kg. This is useful for order planning, logistics, and comparing similar cover plate options.

What warranty period is listed for this Vimar cover plate?

The VM-19654.16 has a listed warranty period of 3 years. Buyers should use this value when comparing warranty coverage across compatible Vimar Arké cover plate options.
