Vimar

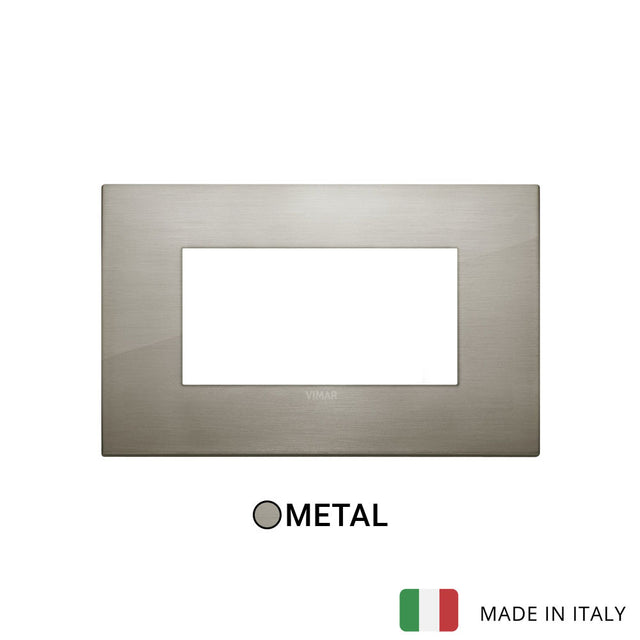

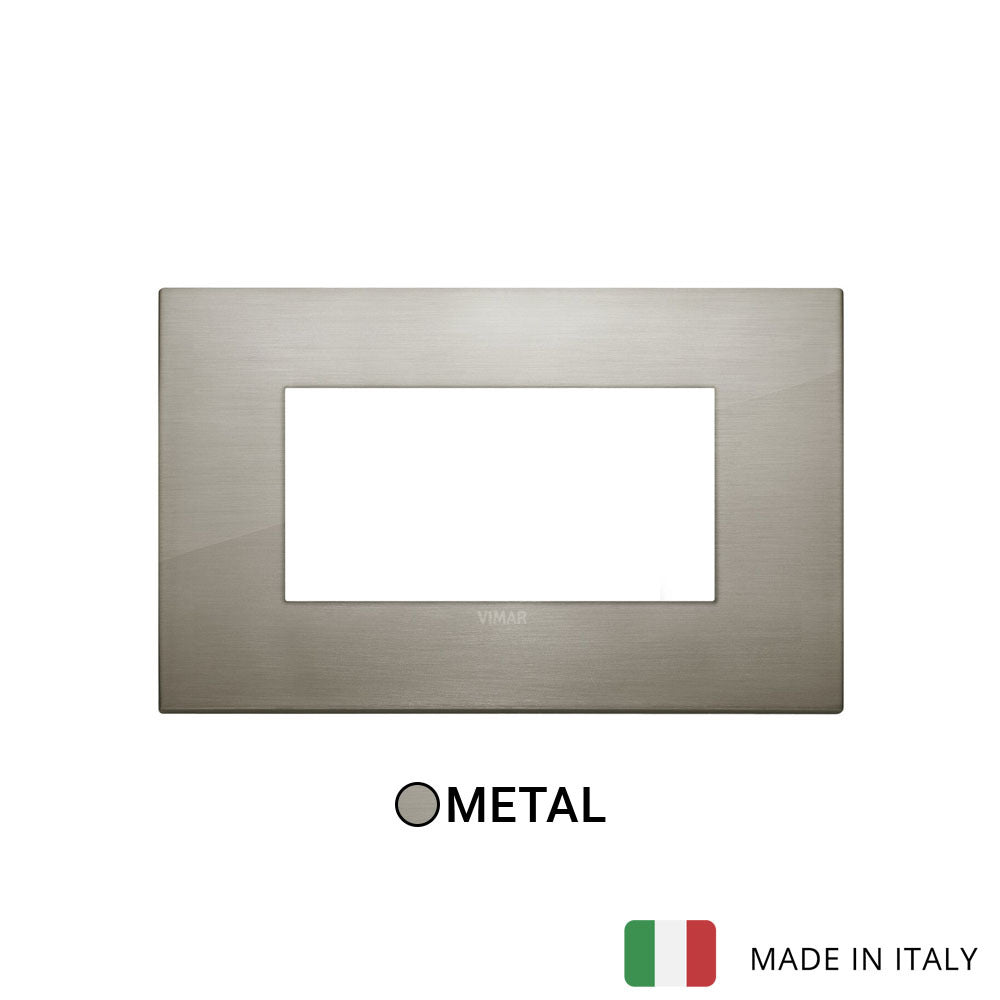

Vimar Arke Classic Plate 4M Metal Brushed Inox

4 Module Classic Brushed Inox
SKU VM-19654.08
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19654.08 is Vimar ARKÉ 19654.08, classic plate 4M metal brushed inox.

4-module Classic cover plate, metal, brushed inox

Specifications

VM-19654.08Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Matt
Colour
Stainless steel
RAL-number (similar)
7048
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
8.6 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352445123
Packed size (cm)
15 × 9.6 × 1.6
Packed weight
129.9 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

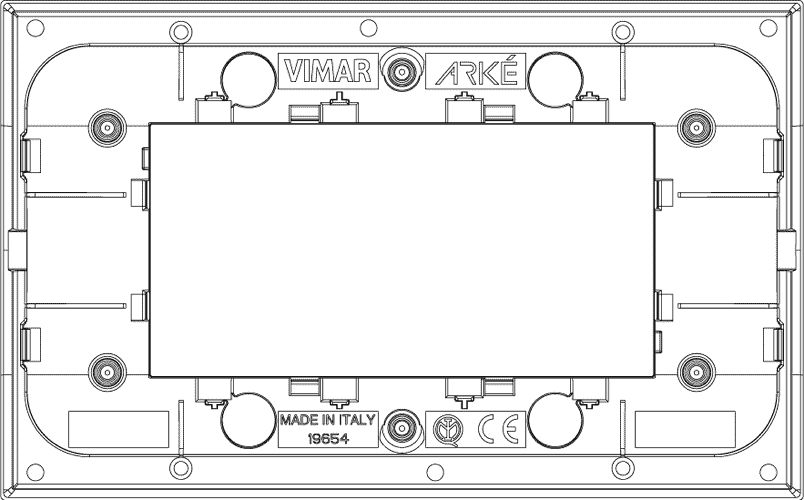

Technical drawings

VM-19654.08 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Classic Plate 4M Metal Brushed Inox used for?

The VM-19654.08 is a 4-module cover plate for Vimar Arke light switch and socket layouts. It is intended for applications where a brushed inox metal finish is preferred for a refined interior design appearance.

What finish does this Vimar Arke cover plate have?

This model has an inox finish with a brushed metal appearance. The product description notes that the processed zamak material receives a special treatment to make the surface shinier.

Is this cover plate made from metal?

Yes, this product is categorized as a metal switch cover plate. The description identifies it as processed zamak, presented in a refined metal-style finish.

What temperature range is this Vimar plate rated for?

The VM-19654.08 is specified for temperatures from -20 °C to 50 °C. This makes the listed operating range suitable for many indoor commercial and residential environments within those limits.

What is the warranty period for this model?

This Vimar Arke Classic Plate has a listed warranty period of 3 years. The warranty value applies specifically to SKU VM-19654.08 as provided in the product data.

How much does the VM-19654.08 cover plate weigh?

The listed weight for this model is 0.1299 kg. This specification is useful for procurement, inventory, and shipping calculations.
