Vimar

Vimar Arke Classic Plate 4M Reflex Smoke Grey

4 Module Classic Grey
SKU VM-19654.61
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

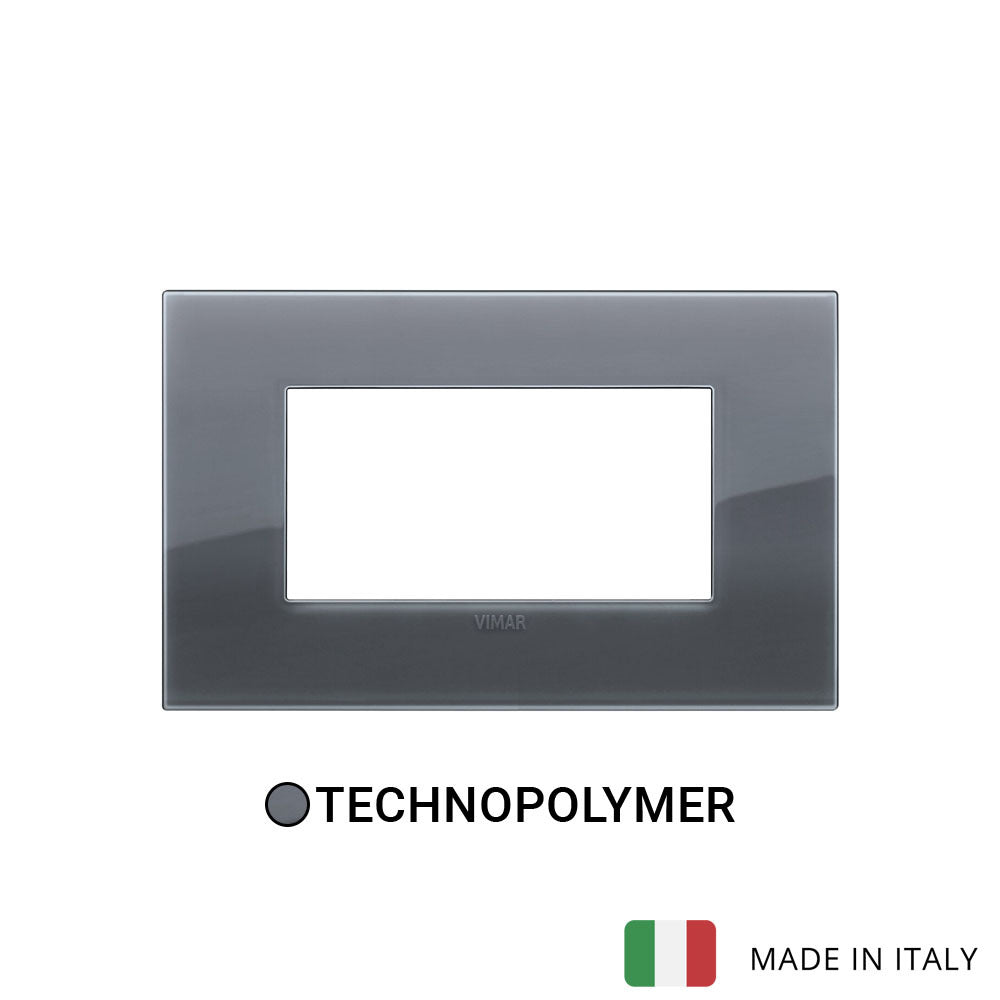

VM-19654.61 is Vimar ARKÉ 19654.61, classic plate 4M Reflex smoke grey.

4-module Classic cover plate, technopolymer, Reflex smoke grey

Specifications

VM-19654.61Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Grey
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
9.1 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352552302
Packed size (cm)
14.5 × 9 × 0.9
Packed weight
43 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

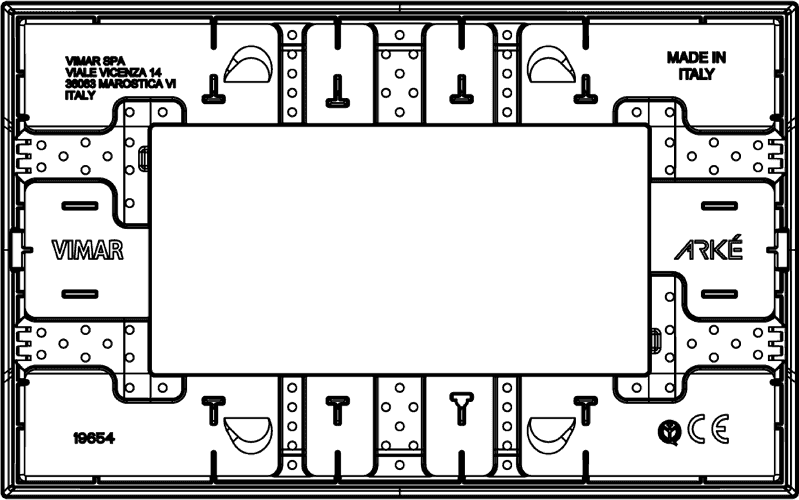

Technical drawings

VM-19654.61 Drawings
Drawings

Downloads

FAQ

What product range is the VM-19654.61 plate designed for?

The VM-19654.61 is a Vimar Arké Classic cover plate. It is intended for use within the Vimar Arké switch and module range, specifically as a 4M plate.

What colour and finish is this Vimar Arké Classic plate?

This model is Reflex Smoke Grey, with the product data listing the finish colour as grey. It is suited to projects that need a neutral, contemporary plate finish rather than a plain white cover.

Where is the Vimar Arké Classic Plate 4M Reflex Smoke Grey typically used?

This plate is suitable for residential spaces, hotels, and commercial interiors using the Vimar Arké range. Its smoke grey finish works well where the switch cover needs to complement modern interior details.

What temperature range is specified for this plate?

The VM-19654.61 is specified for temperatures from -20 °C to 50 °C. This makes it appropriate for normal indoor environments within that stated operating range.

How much does the Vimar VM-19654.61 plate weigh?

The listed weight for this model is 0.0430 kg. This lightweight construction is typical for a plastic switch cover plate.

What warranty period is listed for the VM-19654.61?

The product data lists a warranty period of 3 years. For warranty handling, buyers should refer to the seller or project procurement terms that apply to the order.
