Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

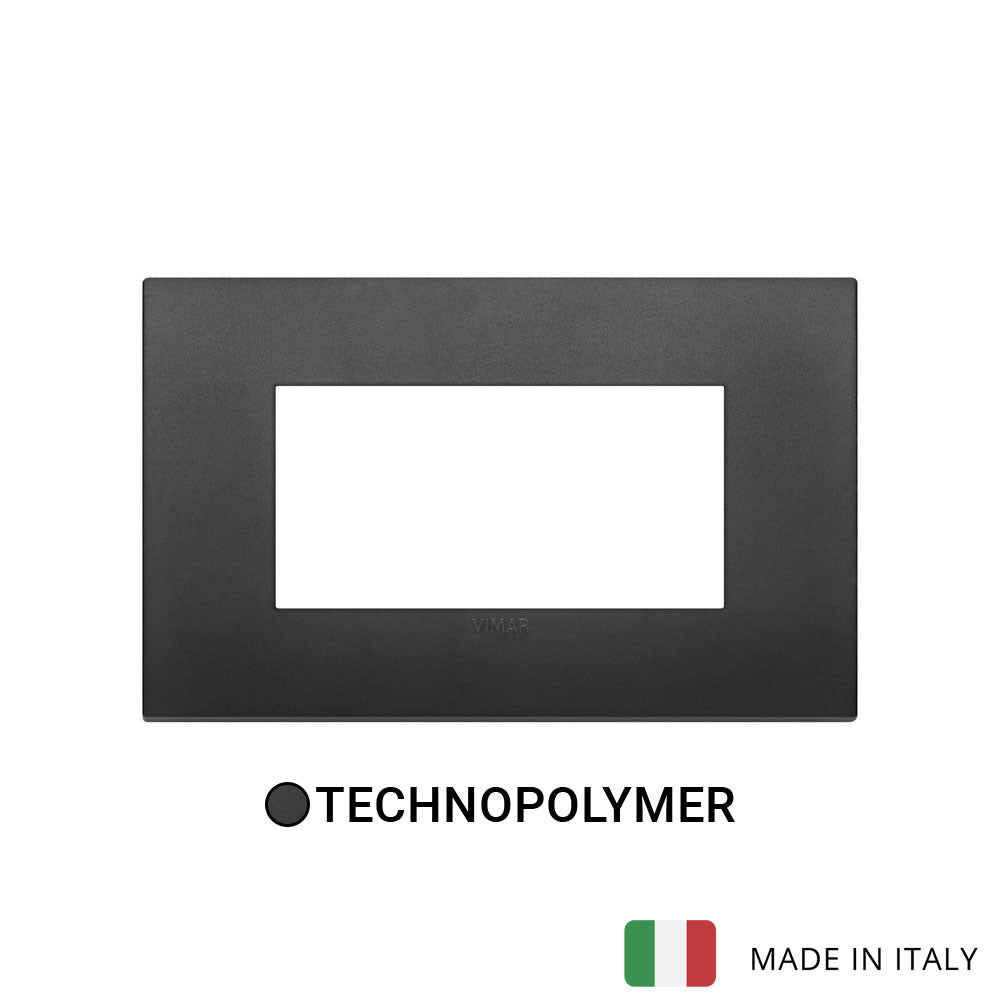

Vimar Arke Classic Plate 4M Technopolymer Black

4 Module Classic Black
SKU VM-19654.71
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19654.71 is Vimar ARKÉ 19654.71, classic plate 4M technopolymer black.

4-module Classic cover plate, technopolymer, black

Specifications

VM-19654.71Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
8.6 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352439443
Packed size (cm)
14.5 × 9 × 0.9
Packed weight
24.6 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-19654.71 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Classic Plate 4M used for?

The VM-19654.71 is a Vimar Arke Classic 4M cover plate for light switch and socket configurations in the Arke series. It is intended for product pages where buyers need a black technopolymer cover plate with a painted metallic-effect finish.

Is this cover plate compatible with the Vimar Arke range?

Yes. This model belongs to the Vimar Arke cover plate family and is categorized under Vimar Arke switches, covers, and modules. Buyers should match the 4M format and Arke series requirements when selecting it for a project.

What material and finish does this Vimar plate have?

This cover plate is made from technopolymer. It has a black painted finish designed to create an intriguing metallic effect with an elegant, modern appearance.

What operating temperature range is specified for this model?

The specified temperature range for VM-19654.71 is -20 °C to 50 °C. This helps buyers confirm whether the plate is suitable for the expected ambient conditions of the application.

How much does the Vimar Arke Classic Plate 4M weigh?

This model has a listed weight of 0.0222 kg. Its low weight is typical for a technopolymer cover plate and may be useful for procurement, shipping, and product comparison.

What warranty period applies to VM-19654.71?

The listed warranty period for this product is 3 years. This applies specifically to the Vimar Arke Classic Plate 4M Technopolymer Black model identified by SKU VM-19654.71.
