Vimar

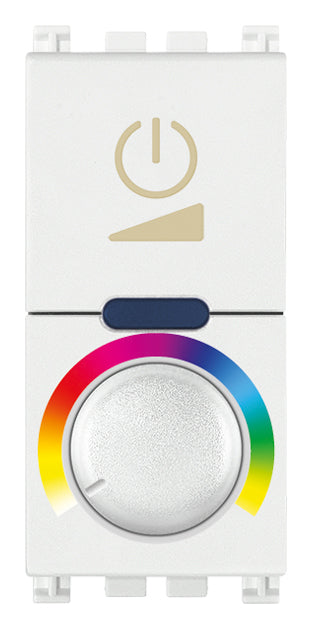

Vimar Arke RGB Rotary Dimmer 120V White

120V White
SKU VM-19138.120.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19138.120.B is Vimar ARKÉ 19138.120.B, RGB dimmer 120V white.

RGB dimmer 120 V~ 60 Hz for: RGB LED lamps, electronic RGB LED supply units, ON/OFF control und brightness adjustment with built-in push button or from peripheral NO push buttons, colour adjustment with rotary potentiometer, visible in darkness, white. Not for Isoset enclosures

Specifications

VM-19138.120.BSpecifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120 - 120.01 V
Frequency
60 - 60.01 HZ
Control voltage
120 - 120.01 V
Device width
22.3 mm
Device height
49 mm
Device depth
61.4 mm

Packaging

EAN
8007352497986
Packed size (cm)
5.2 × 3.9 × 6.2
Packed weight
59.5 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), NOM (Mexico), WEEE Directive

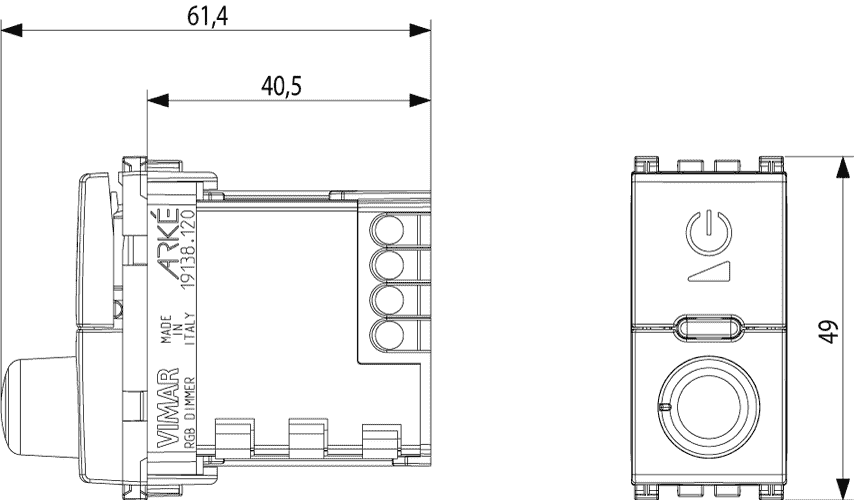

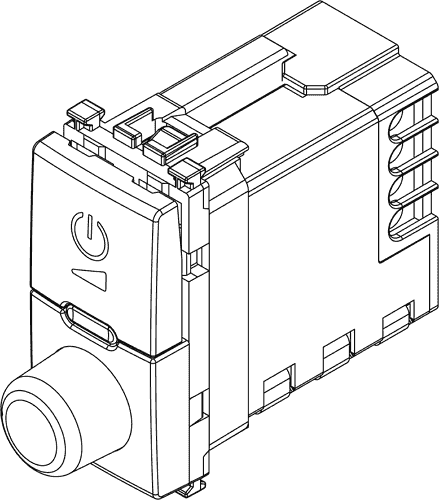

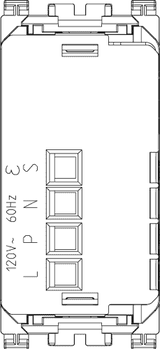

Technical drawings

VM-19138.120.B Drawings
Drawings

Downloads

FAQ

What type of product is the Vimar Arke RGB Rotary Dimmer 120V White?

The Vimar Arke RGB Rotary Dimmer 120V White is a rotary dimmer module in the Vimar Arké series. It is identified by SKU VM-19138.120.B and is intended for switch and dimmer applications within the Arké product family.

Where is the Vimar Arke RGB Rotary Dimmer 120V White best suited for use?

This model is well suited for projects that want a clean, minimalist white finish that blends easily into modern interiors. Based on the Arké design description, it fits residential spaces as well as hospitality environments that value a contemporary, understated look.

How does the white finish compare with other Vimar Arké design options?

This version uses the classic white finish, which is the most neutral and versatile option in the Arké aesthetic described for the line. It is a good choice when the goal is to coordinate with a wide range of wall colors and interior styles without drawing attention to the device itself.

What environmental temperature range is specified for this dimmer module?

The specified operating temperature range for this model is from -20°C to 50°C. That gives it a broad environmental tolerance for indoor applications where temperature conditions may vary.

What warranty is listed for the Vimar Arke RGB Rotary Dimmer 120V White?

This product carries a listed warranty period of 3 years. For procurement and project planning, that provides a defined manufacturer-backed coverage term for this specific model.

Is this product part of the Vimar Arké modular switch range?

Yes, this dimmer is part of the Vimar Arké module range and is categorized within Arké switch and dimmer groupings. That makes it relevant for buyers standardizing on the Vimar Arké series for a consistent product family across a project.

What is the listed weight of the Vimar Arke RGB Rotary Dimmer 120V White?

The listed product weight is 0.0595 kg. This is useful for cataloging, shipping estimates, and bill-of-material reviews for larger commercial orders.
