Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 2centrM Reflex Ice White

2 Module Center Round White
SKU VM-19682.66
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

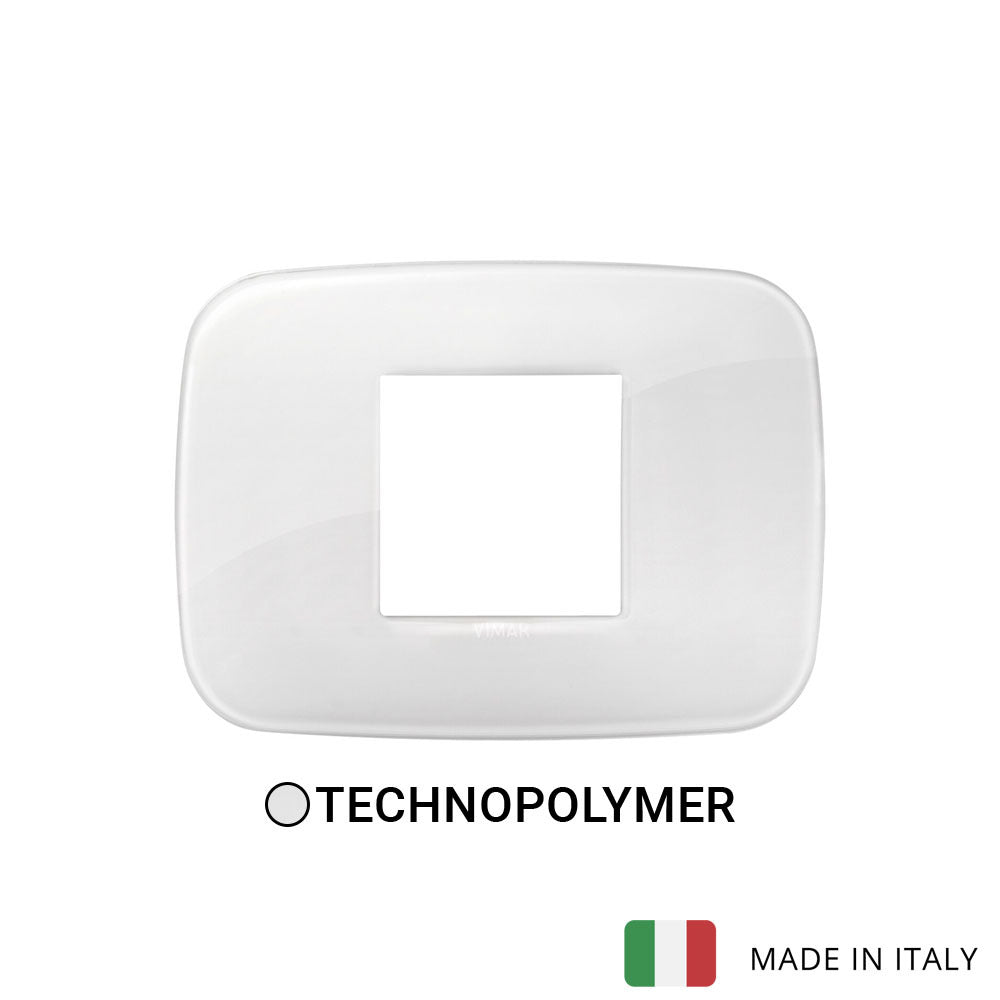

VM-19682.66 is Vimar ARKÉ 19682.66, round 2M central cover plate, Reflex ice.

Round 2-module central cover plate, technopolymer, Reflex ice

Specifications

VM-19682.66Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
9.1 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440302
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
39.6 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

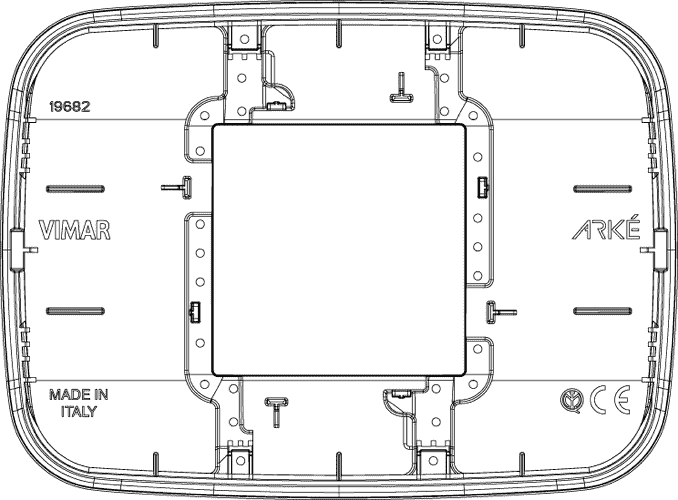

Technical drawings

VM-19682.66 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 2centrM Reflex Ice White used for?

The VM-19682.66 is a cover plate for Vimar Arké light switch and socket layouts. It is intended to provide a clean finished face for compatible Arké switch installations, with a white finish suited to residential, hotel, and commercial interiors.

Is this cover plate part of the Vimar Arké range?

Yes. This product is listed under the Vimar Arké switch cover categories and is named as a Vimar Arke Round Plate. It should be matched with compatible Arké components from the same system.

What colour and finish is this Vimar Arké plate?

This model has a white finish, described as Reflex Ice White. It is designed for a minimalist, contemporary appearance that can blend with many interior styles.

What temperature range is this cover plate rated for?

The specified operating temperature range is -20 °C to 50 °C. This makes the VM-19682.66 suitable for typical indoor environments within that temperature range.

What is the weight of the VM-19682.66 plate?

The listed weight is 0.0396 kg. This low weight is consistent with a plastic switch cover plate for wall-mounted switch and socket systems.

What warranty period is listed for this product?

The VM-19682.66 has a listed warranty period of 3 years. For B2B purchasing, this can help standardize replacement and project documentation for compatible Vimar Arké installations.
