Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 2centrM Reflex Marine Blue

2 Module Center Round Blue
SKU VM-19682.64
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

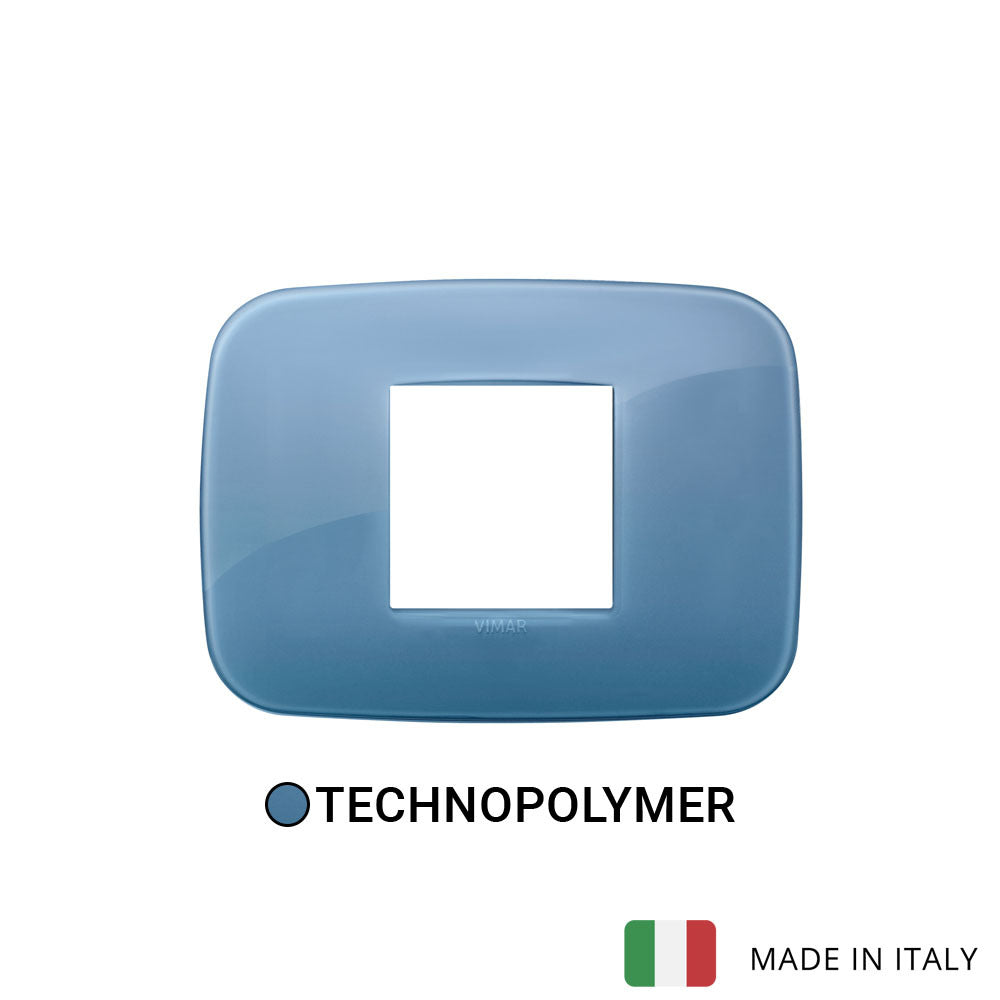

VM-19682.64 is Vimar ARKÉ 19682.64, round 2M central cover plate, Reflex ultramarine.

Round 2-module central cover plate, technopolymer, Reflex ultramarine

Specifications

VM-19682.64Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Blue
RAL-number (similar)
5009
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
9.1 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440265
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
39.5 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

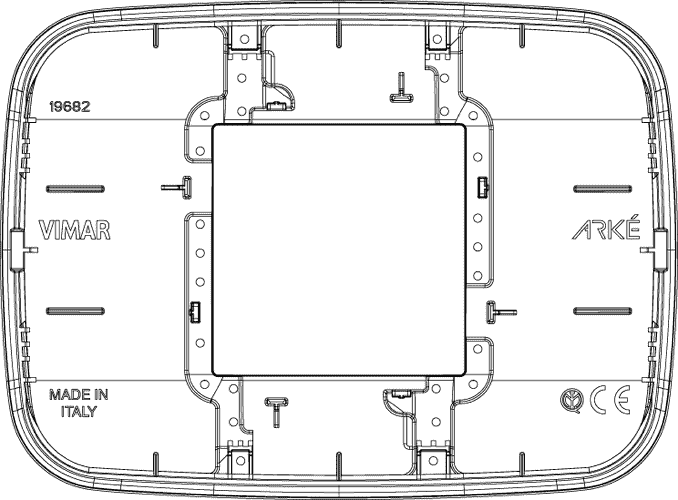

Technical drawings

VM-19682.64 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 2centrM Reflex Marine Blue used for?

The Vimar Arke Round Plate 2centrM Reflex Marine Blue is a switch cover plate for Vimar Arké switch applications. It provides the visible finishing piece for compatible Arké switch layouts where a blue reflex-style plate is desired.

Is this cover plate part of the Vimar Arké range?

Yes. This model is identified as a Vimar Arké cover plate and belongs to Arké switch and module categories. It is intended for use within the Arké design range.

What colour and finish is this Vimar Arké plate?

This model has a blue finish colour and is described as Reflex Marine Blue. It is designed as a contemporary decorative plate for switch applications.

What temperature range is this plate rated for?

The listed operating temperature range for this model is -20 °C to 50 °C. This makes it suitable for environments that remain within that specified temperature range.

What is the weight of the Vimar Arke Round Plate 2centrM Reflex Marine Blue?

The listed weight for SKU VM-19682.64 is 0.0495 kg. This is the product weight provided for this specific cover plate model.

What warranty period is listed for this product?

The Vimar Arke Round Plate 2centrM Reflex Marine Blue has a listed warranty period of 3 years. This warranty period applies to SKU VM-19682.64 as provided in the product data.
