Vimar

Vimar Arke Round Plate 2centrM Reflex Orange

2 Module Center Round Orange
SKU VM-19682.63
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

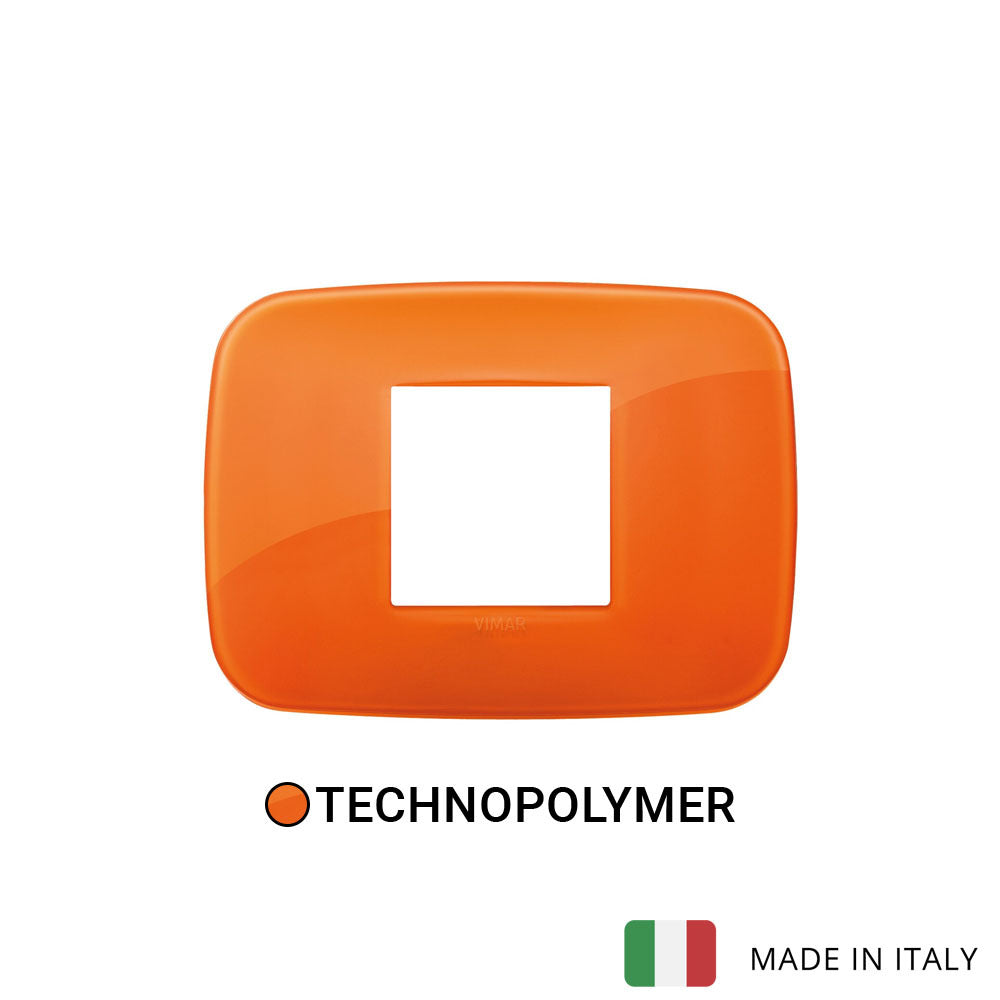

VM-19682.63 is Vimar ARKÉ 19682.63, round 2M central cover plate Reflex orange.

Round 2 module central cover plate, technopolymer, Reflex orange

Specifications

VM-19682.63Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Orange
RAL-number (similar)
2003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
9.1 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440241
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
39.5 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

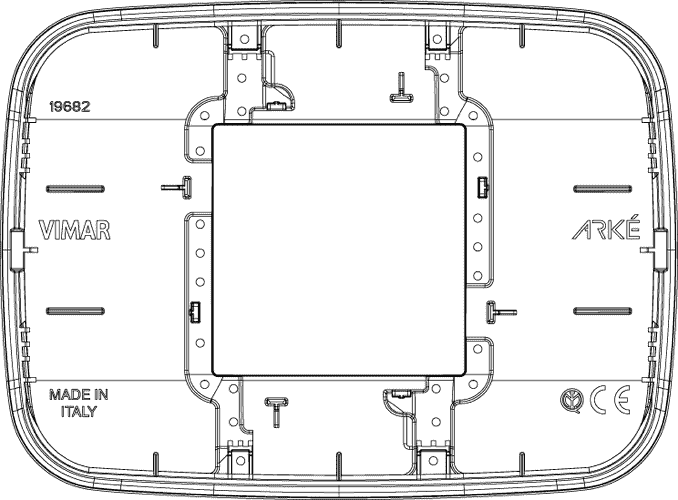

Technical drawings

VM-19682.63 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 2centrM Reflex Orange used for?

The Vimar Arke Round Plate 2centrM Reflex Orange is a switch cover plate for Vimar Arké switch and socket ranges. It is suited to residential, hotel, and commercial interiors where a bright orange finish is preferred for a visible design accent.

Is this cover plate part of the Vimar Arké range?

Yes. This model is listed under Vimar Arké switch cover categories, including Arké cover and Arké module groupings. It should be selected for projects using compatible Vimar Arké switch plate components.

What colour and finish does SKU VM-19682.63 have?

SKU VM-19682.63 has an orange finish colour. The product name identifies it as the Reflex Orange version of the Vimar Arke Round Plate 2centrM.

What temperature range is this Vimar Arké cover plate rated for?

This model is specified for temperatures from -20 °C to 50 °C. That range makes it suitable for typical indoor environments within those operating limits.

What is the weight and warranty period for this cover plate?

The Vimar Arke Round Plate 2centrM Reflex Orange weighs 0.0395 kg. It has a stated warranty period of 3 years.
