Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 2centrM Technopolymer Black

2 Module Center Round Black
SKU VM-19682.81
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

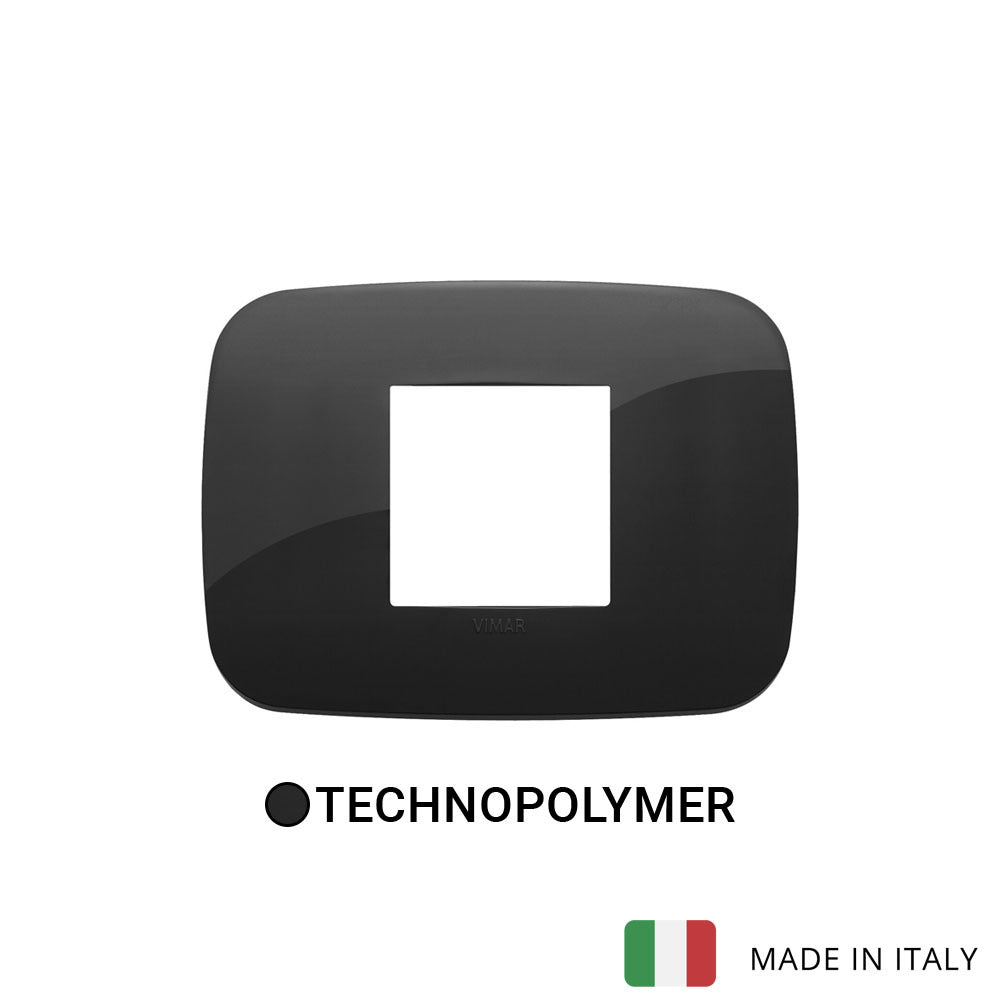

VM-19682.81 is Vimar ARKÉ 19682.81, round 2M central cover plate black.

Round 2 module central cover plate, technopolymer, black

Specifications

VM-19682.81Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.2 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440326
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
20.8 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

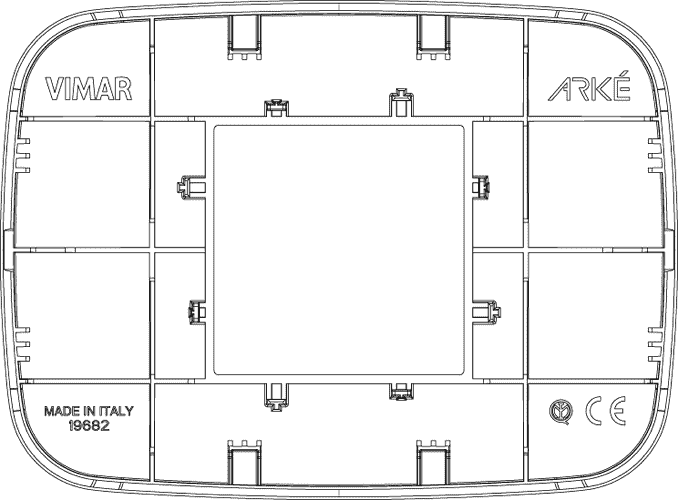

Technical drawings

VM-19682.81 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate VM-19682.81 used for?

The VM-19682.81 is a cover plate for Vimar Arke light switch and socket applications. It is intended for buyers selecting a matching visible finish for an Arke-series switch plate position.

Which product series is this cover plate associated with?

This model belongs to the Vimar Arke range and is listed under Arke cover and module-related categories. It should be selected for projects that already specify compatible Vimar Arke switch components.

What material and finish does VM-19682.81 have?

The plate is made from technopolymer and has a black finish. The description notes a special painted finish designed to create a metallic effect with an elegant, modern appearance.

What temperature range is specified for this Vimar Arke plate?

The specified operating temperature range is -20 °C to 50 °C. This makes the listed environmental range clear for procurement and specification checks.

How much does the VM-19682.81 cover plate weigh?

The listed weight for this model is 0.0208 kg. This low weight is typical for a plastic cover plate and can be useful when estimating shipment or stock quantities.

What warranty period is listed for this product?

The VM-19682.81 has a listed warranty period of 3 years. Buyers should use this model-specific warranty value when comparing approved alternatives for a project.
