Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 2centrM Technopolymer Blue

2 Module Center Round Blue
SKU VM-19682.86
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

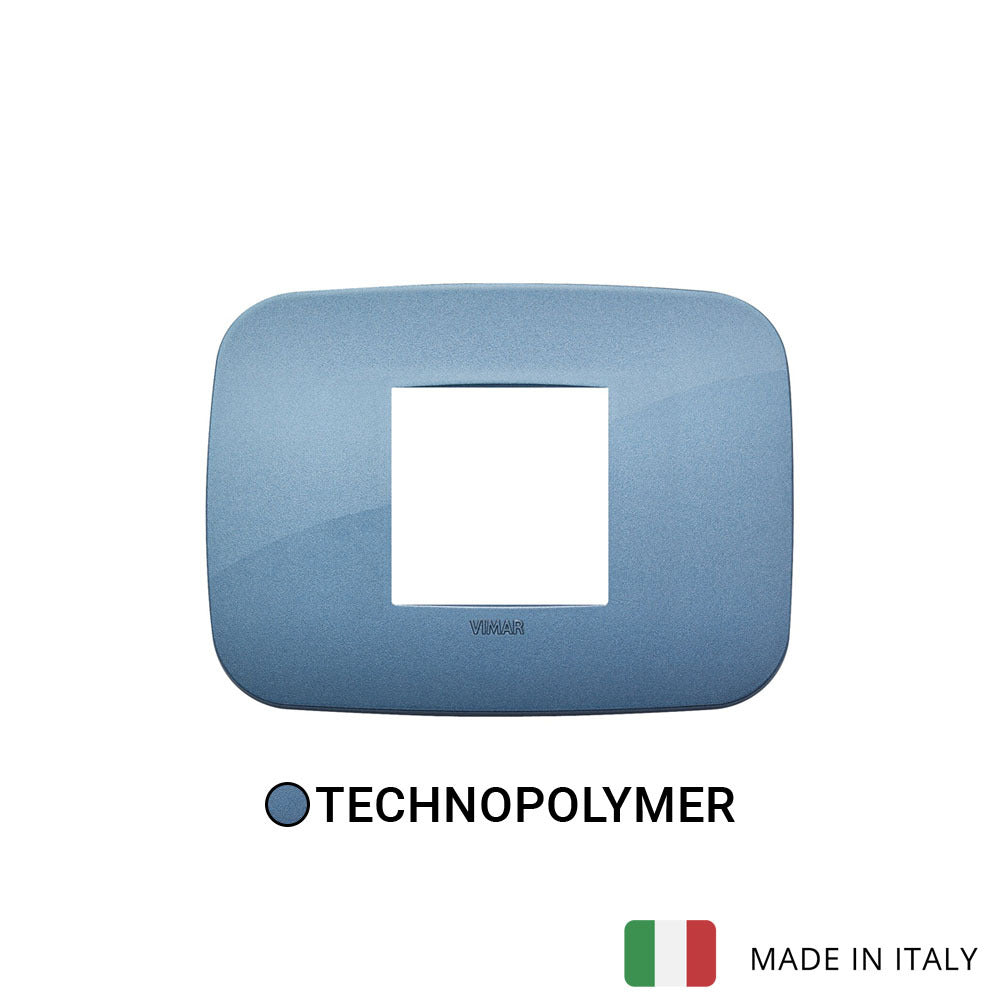

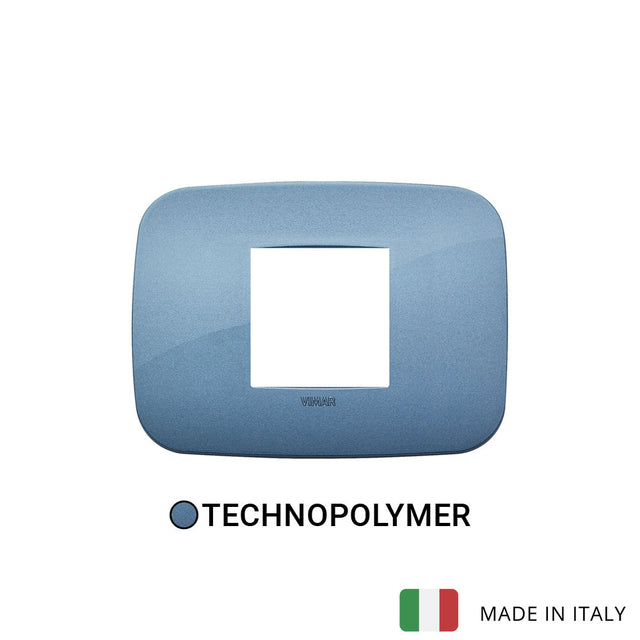

VM-19682.86 is Vimar ARKÉ 19682.86, round 2M cover plate, central, blue.

Round 2-module cover plate, central, technopolymer, blue

Specifications

VM-19682.86Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Blue
RAL-number (similar)
5009
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.2 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352448803
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
21.3 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

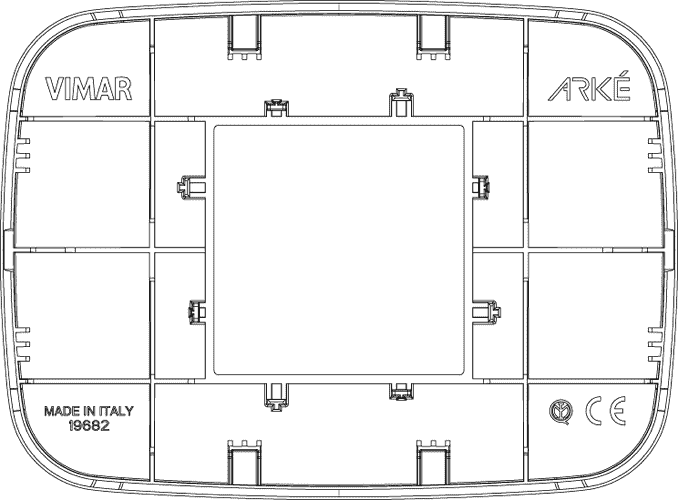

Technical drawings

VM-19682.86 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-19682.86 used for?

The Vimar VM-19682.86 is a round cover plate for Vimar Arke switch applications. It is intended for product pages where a blue technopolymer Arke cover plate is required.

What material is this Vimar Arke cover plate made from?

This model is made from technopolymer. The product description notes a special painted finish that gives the surface an intriguing metallic effect.

What colour and finish does the VM-19682.86 have?

The finish colour for this model is blue. Its painted technopolymer finish is described as having a metallic effect with an elegant vibrancy.

Is this cover plate part of the Vimar Arke range?

Yes, the product is listed as a Vimar Arke round plate and appears in Arke cover and module categories. It is suitable for buyers selecting cover plates within the Vimar Arke switch range.

What temperature range is specified for this product?

The specified operating temperature range is from -20 °C to 50 °C. This makes the listed environmental range suitable for many indoor commercial and residential switch plate applications.

How much does the Vimar VM-19682.86 weigh?

The listed weight for this cover plate is 0.0213 kg. This low weight is typical for a small technopolymer switch cover component.

What warranty period is listed for this Vimar cover plate?

The warranty period listed for this model is 3 years. Buyers should use the seller's warranty terms and conditions for any claim-specific details.
