Vimar

Vimar Arke Round Plate 2centrM Technopolymer Grey

2 Module Center Round Grey
SKU VM-19682.82
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

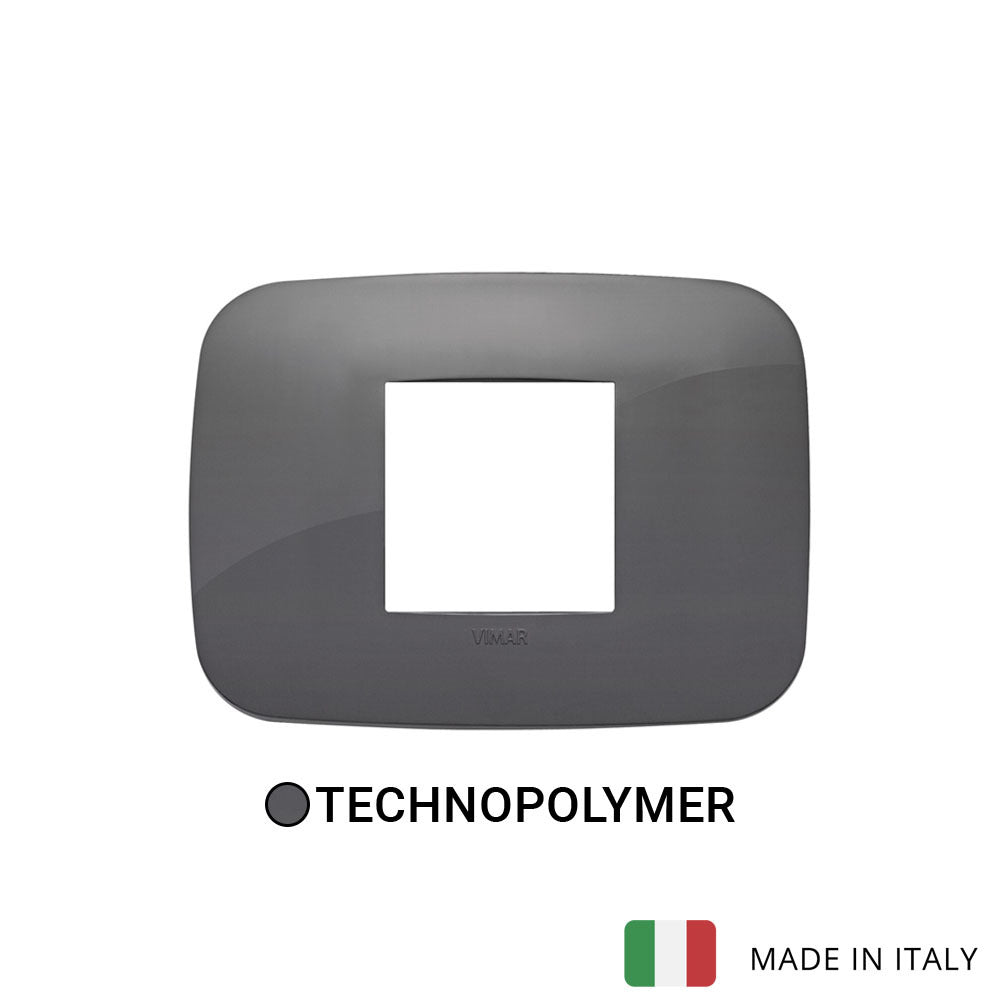

VM-19682.82 is Vimar ARKÉ 19682.82, round 2M cover plate, central, grey.

Round 2-module cover plate, central, technopolymer, grey

Specifications

VM-19682.82Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Grey
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.2 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440340
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
21 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

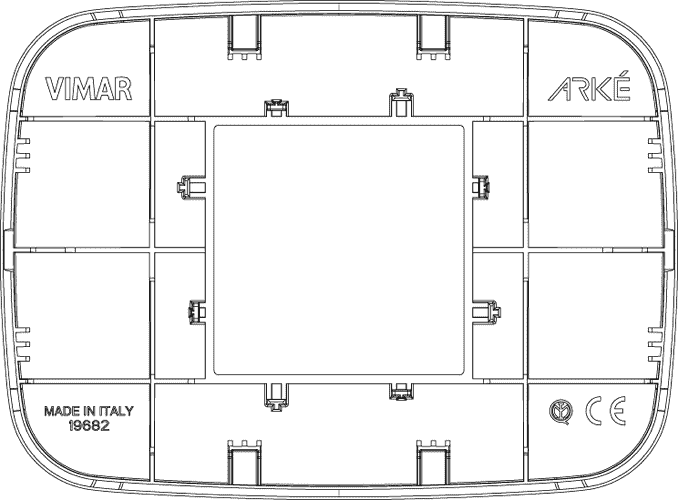

Technical drawings

VM-19682.82 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate VM-19682.82 used for?

The VM-19682.82 is a Vimar Arke cover plate for switch and socket configurations in the Arke range. It is suited to product pages where buyers are selecting a matching grey technopolymer plate for compatible Vimar Arke modules.

What material and finish does this cover plate have?

This model is made from technopolymer with a special painted finish. The grey finish is designed to create a metallic effect with a modern, high-tech appearance.

Is this plate part of the Vimar Arke series?

Yes, the product is listed under Vimar Arke switch and cover plate categories. Buyers should match it with the relevant Vimar Arke range components and the required plate format.

What temperature range is specified for this model?

The VM-19682.82 is specified for temperatures from -20 °C to 50 °C. This range is useful for confirming whether the product suits the expected operating environment.

How much does the Vimar Arke Round Plate VM-19682.82 weigh?

This cover plate weighs 0.0210 kg. Its low weight is typical for a technopolymer switch cover plate.

What warranty period is listed for this Vimar cover plate?

The listed warranty period for this product is 3 years. This applies to SKU VM-19682.82 as specified in the product data.
