Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

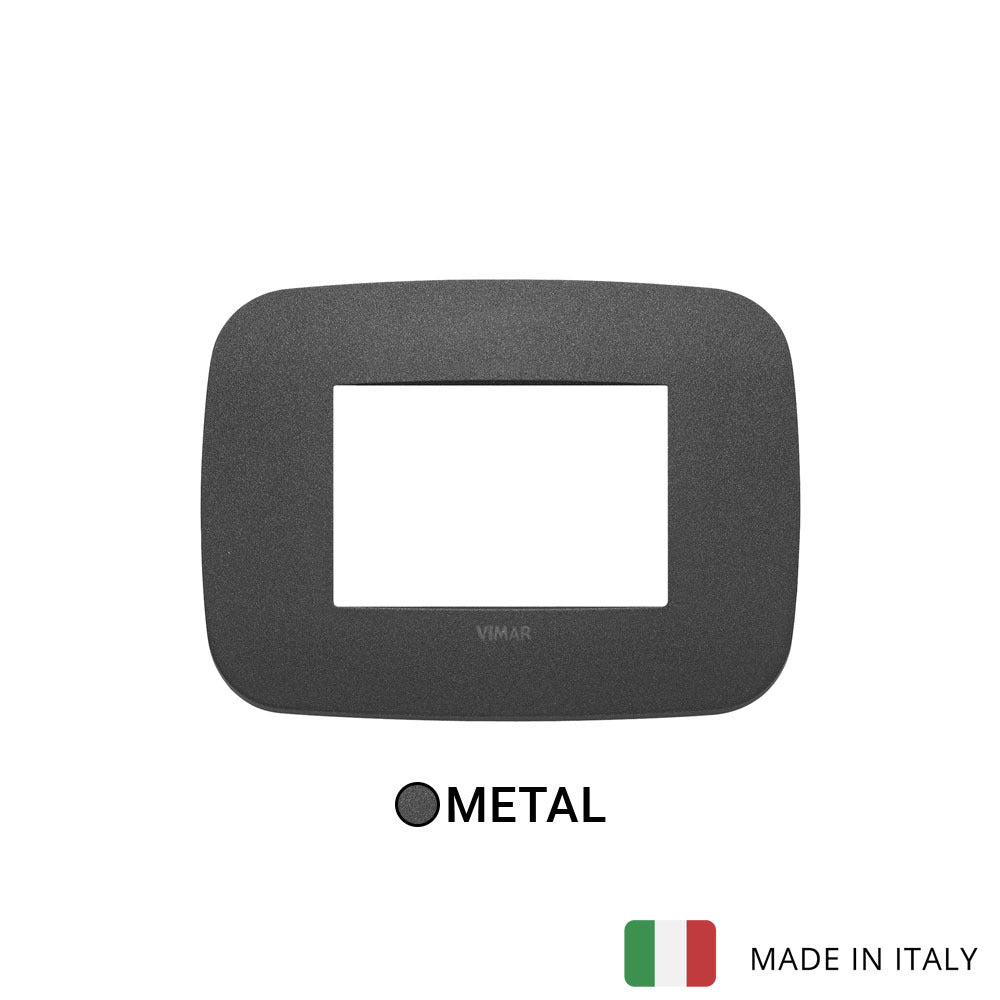

Vimar Arke Round Plate 3M Metal Matt Graphite

3 Module Classic Round Matt Graphite
SKU VM-19683.21
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19683.21 is Vimar ARKÉ 19683.21, round 3M cover plate, matt graphite.

Round 3-module cover plate, metal, matt graphite

Specifications

VM-19683.21Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9004
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.5 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352448889
Packed size (cm)
12.75 × 9.5 × 1.62
Packed weight
105.08 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), Product Environm. Profile, IMQ (Italy)

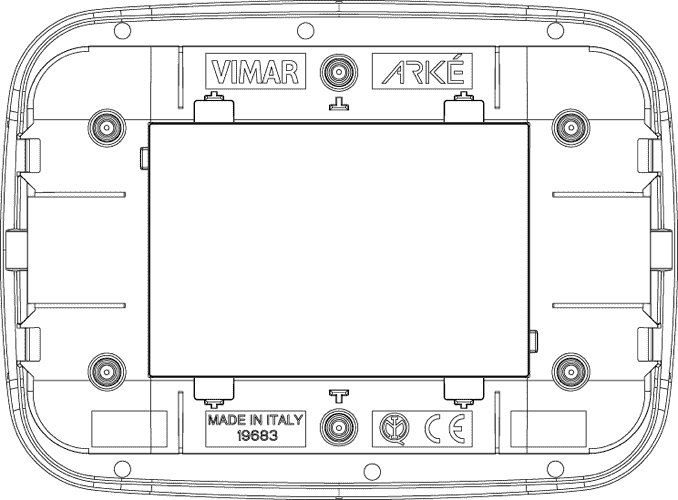

Technical drawings

VM-19683.21 Drawings
Drawings

Downloads

FAQ

What range is the VM-19683.21 cover plate made for?

The VM-19683.21 is a Vimar Arké round cover plate. It is identified as a 3M plate, meaning it is intended for 3-module Arké cover plate applications.

What material and finish does this Vimar Arké plate use?

This model is made from painted zamak, a metal alloy used here to give the Arké range a more high-tech look. The finish colour is matt graphite.

Where is the Vimar Arke Round Plate 3M Metal Matt Graphite typically used?

This product is used as a visible cover plate for Vimar Arké switch and socket layouts. Its matt graphite metal finish suits commercial, residential, and specification-led interiors where a darker, modern plate is required.

What temperature range is this cover plate rated for?

The VM-19683.21 has a stated operating temperature range from -20 °C to 50 °C. This makes it suitable for indoor environments that remain within those limits.

How much does the VM-19683.21 cover plate weigh?

This Vimar Arké cover plate weighs 0.1051 kg. The weight reflects its painted zamak metal construction rather than a plastic plate.

What warranty period applies to this product?

The VM-19683.21 is listed with a 3-year warranty period. This warranty information applies specifically to this Vimar Arké Round Plate 3M Metal Matt Graphite model.
