Vimar

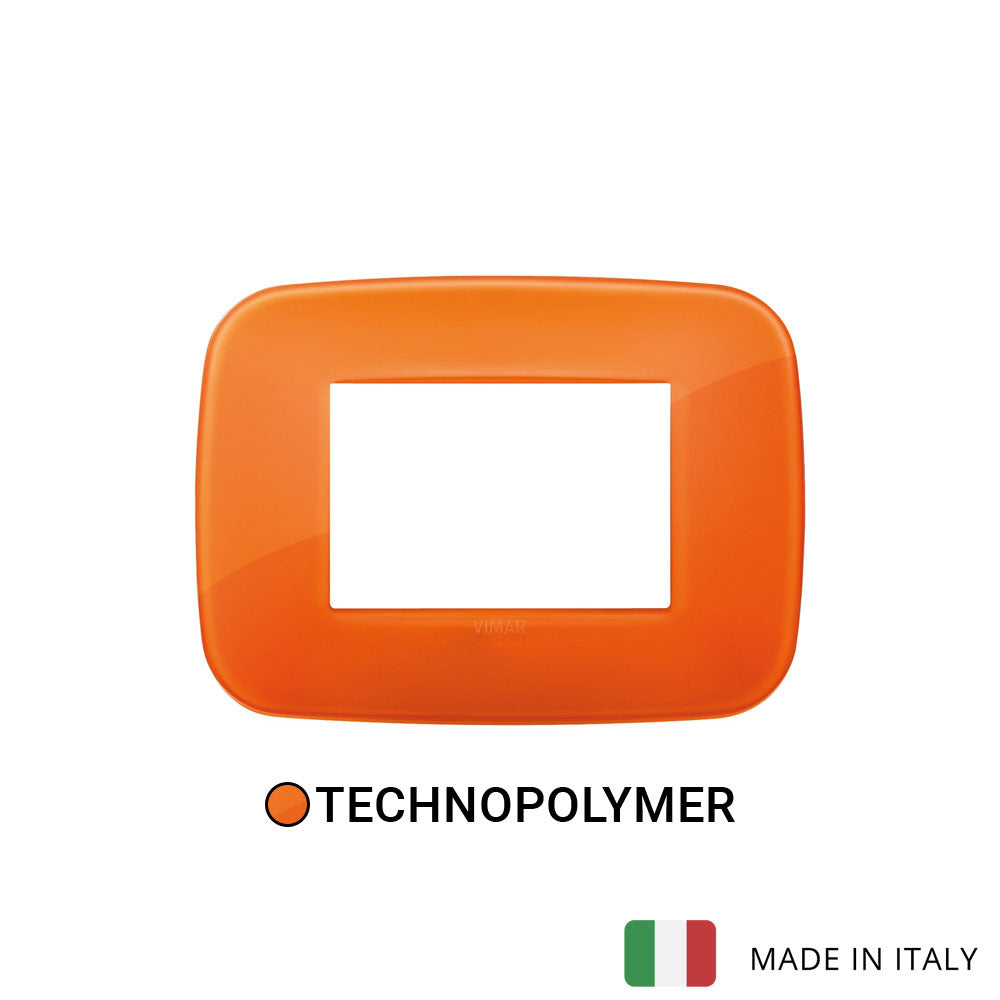

Vimar Arke Round Plate 3M Reflex Orange

3 Module Round Orange
SKU VM-19683.63
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19683.63 is Vimar ARKÉ 19683.63, round 3M cover plate Reflex orange.

Round 3-module cover plate, technopolymer, Reflex orange

Specifications

VM-19683.63Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Orange
RAL-number (similar)
2003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
9.1 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440449
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
36.6 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

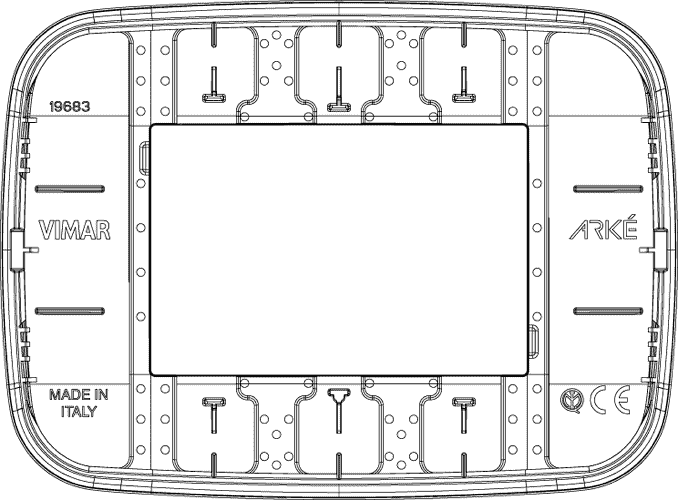

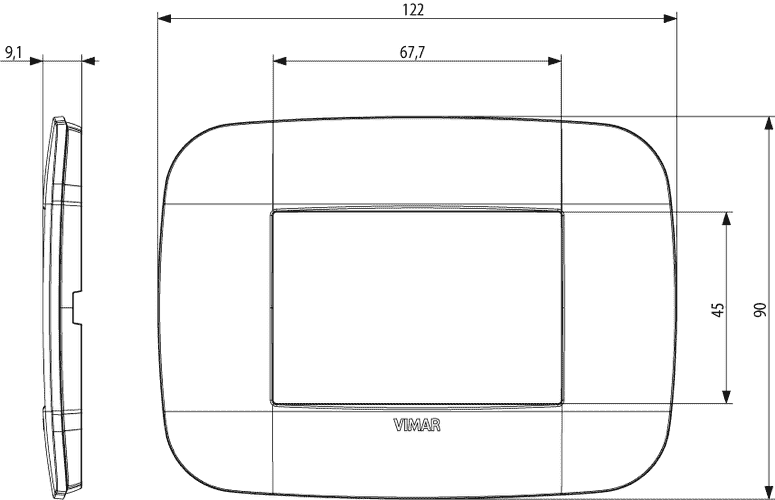

Technical drawings

VM-19683.63 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 3M Reflex Orange used for?

The Vimar Arke Round Plate 3M Reflex Orange is a cover plate for products in the Vimar Arké switch range. It is intended for product pages where buyers need a 3-module Arké cover plate with an orange finish.

Is this cover plate part of the Vimar Arké series?

Yes. This model is listed under Vimar Arké cover plate and module categories, making it part of the Arké switch and cover plate family. Buyers should match it with the appropriate Vimar Arké components for their project requirements.

What color and finish does VM-19683.63 have?

SKU VM-19683.63 has an orange finish colour. The product name identifies it as the Reflex Orange version of the Vimar Arke Round Plate 3M.

What temperature range is this Vimar Arké cover plate rated for?

This cover plate has a listed operating temperature range from -20 °C to 50 °C. That range makes it suitable for environments that remain within those stated temperature limits.

What is the warranty period for the Vimar Arke Round Plate 3M Reflex Orange?

The listed warranty period for this model is 3 years. This applies specifically to SKU VM-19683.63 as provided in the product data.

How much does this Vimar Arké cover plate weigh?

The listed weight for the Vimar Arke Round Plate 3M Reflex Orange is 0.0366 kg. This is a lightweight plastic cover plate for the Arké switch cover category.
