Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

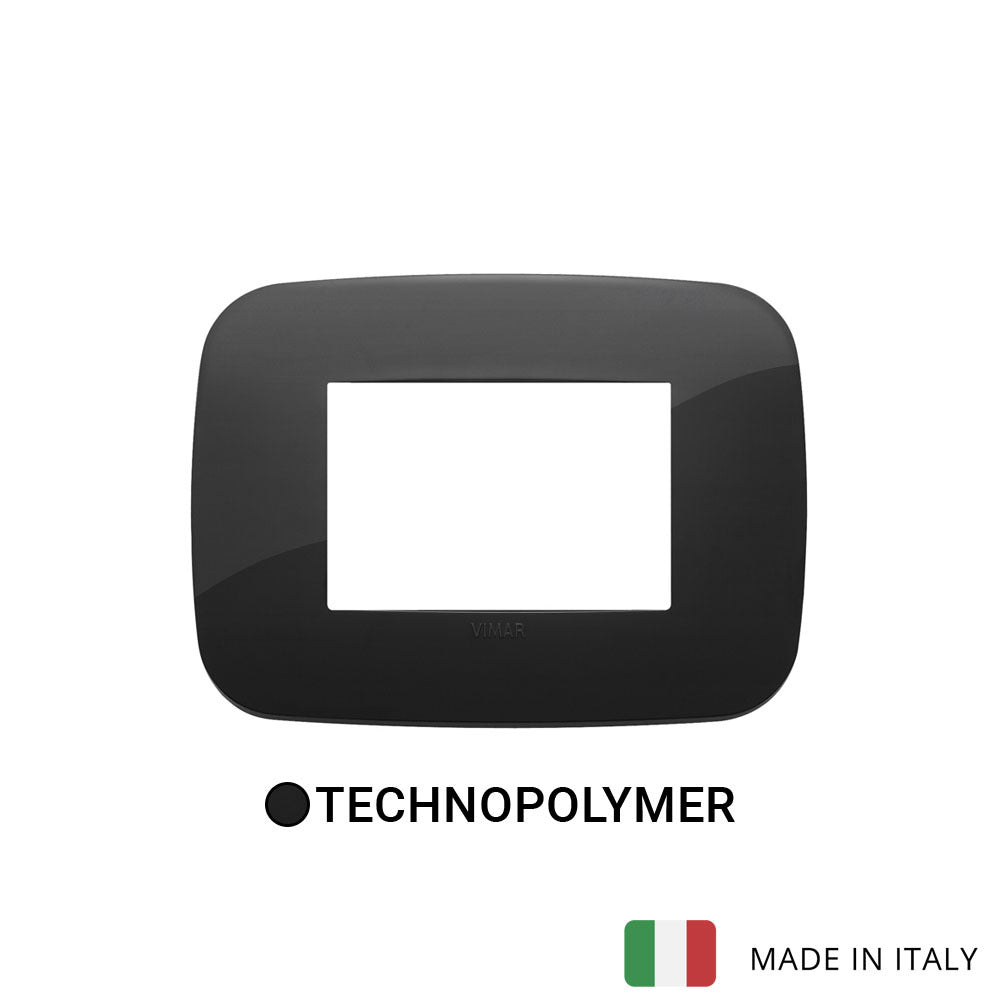

Vimar Arke Round Plate 3M Technopolymer Black

3 Module Round Black
SKU VM-19683.81
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19683.81 is Vimar ARKÉ 19683.81, round 3M cover plate black.

Round 3-module cover plate, technopolymer, black

Specifications

VM-19683.81Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.5 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440524
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
18.6 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), Product Environm. Profile, IMQ (Italy)

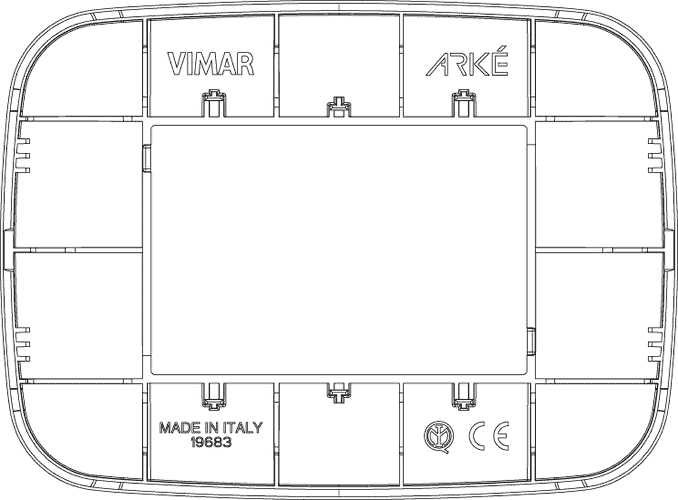

Technical drawings

VM-19683.81 Drawings
Drawings

Downloads

FAQ

What range is the Vimar VM-19683.81 plate made for?

The VM-19683.81 is a cover plate from the Vimar Arke range. It is identified as a 3M round plate, so buyers should match it with the appropriate Vimar Arke 3-module setup.

What material is this Vimar Arke cover plate made from?

This model is made from technopolymer. The description notes a special painted finish that gives the surface a metallic-effect appearance.

What does the black finish look like?

The VM-19683.81 has a black finish with a painted technopolymer surface. Vimar describes this finish family as having an elegant vibrancy and a high-tech metallic effect.

What temperature range is this plate rated for?

This cover plate is specified for temperatures from -20 °C to 50 °C. That range is useful for confirming suitability in environments where ambient temperature limits matter.

How much does the Vimar VM-19683.81 weigh?

The listed weight for this model is 0.0186 kg. Its low weight is typical for a technopolymer cover plate.

What warranty period is listed for this product?

The warranty period listed for the Vimar VM-19683.81 is 3 years. Buyers should keep the SKU and purchase details available for warranty reference.
