Vimar

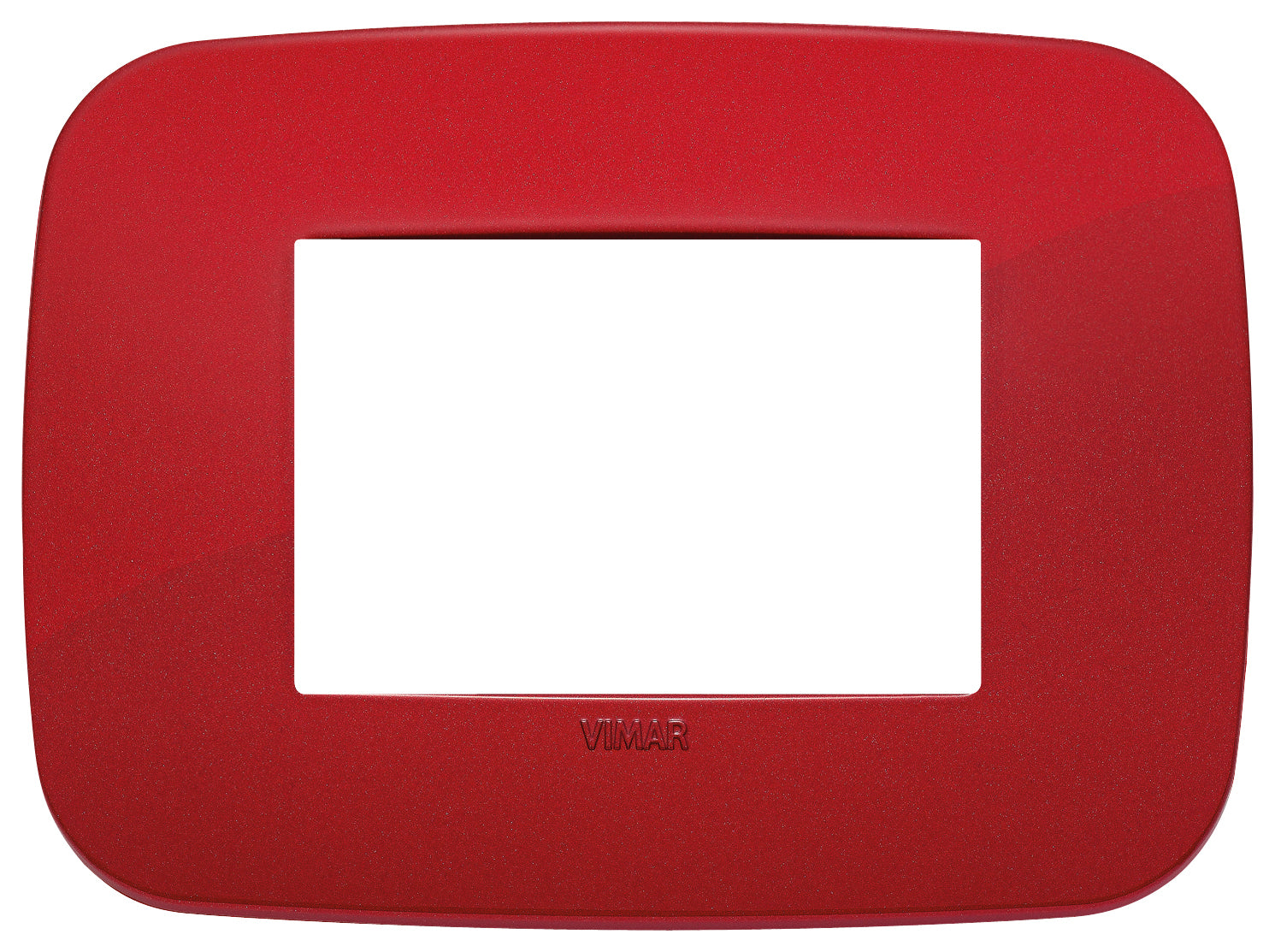

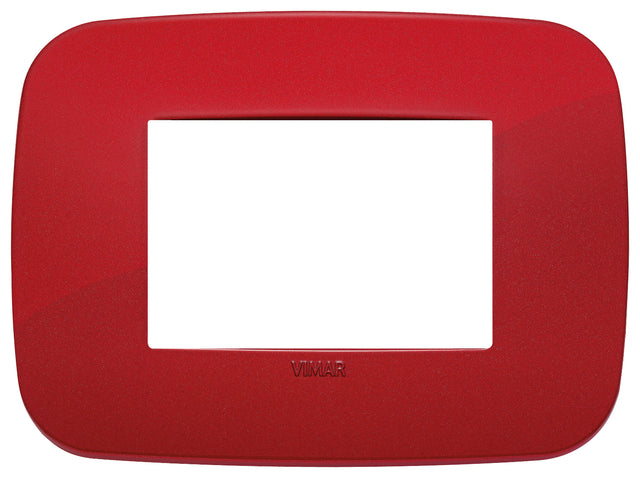

Vimar Arke Round Plate 3M Technopolymer Red

3 Module Round Red
SKU VM-19683.85
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19683.85 is Vimar ARKÉ 19683.85, round 3M cover plate red.

Round 3-module cover plate, technopolymer, red

Specifications

VM-19683.85Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Red
RAL-number (similar)
3011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.5 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352449145
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
19.3 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

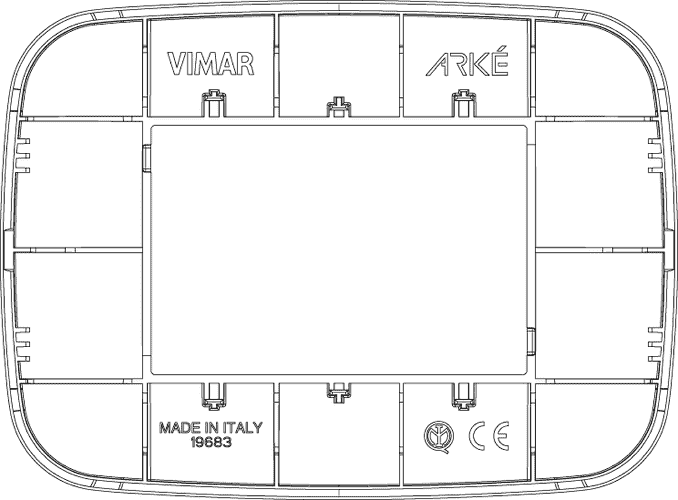

Technical drawings

VM-19683.85 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke VM-19683.85 used for?

The VM-19683.85 is a 3-module round cover plate for the Vimar Arke range. It is intended for product pages or projects where a red technopolymer Arke cover plate is required.

What finish does this Vimar Arke cover plate have?

This model has a red finish colour. Its technopolymer surface has a special painted finish designed to create an intriguing metallic effect with an elegant, vibrant appearance.

Is the VM-19683.85 made from metal?

No. The product data lists this cover plate as technopolymer, a plastic material. The description notes a painted finish that gives a metallic effect, but the stated material category is plastic.

What temperature range is this cover plate rated for?

The VM-19683.85 has a listed operating temperature range from -20 °C to 50 °C. This makes it suitable for environments that stay within those specified limits.

How much does the Vimar Arke VM-19683.85 weigh?

This cover plate has a listed weight of 0.0193 kg. Its low weight is typical for a technopolymer switch cover plate.

What warranty period is listed for this product?

The listed warranty period for the VM-19683.85 is 3 years. Buyers should confirm any warranty handling terms with the seller or project supplier.
