Vimar

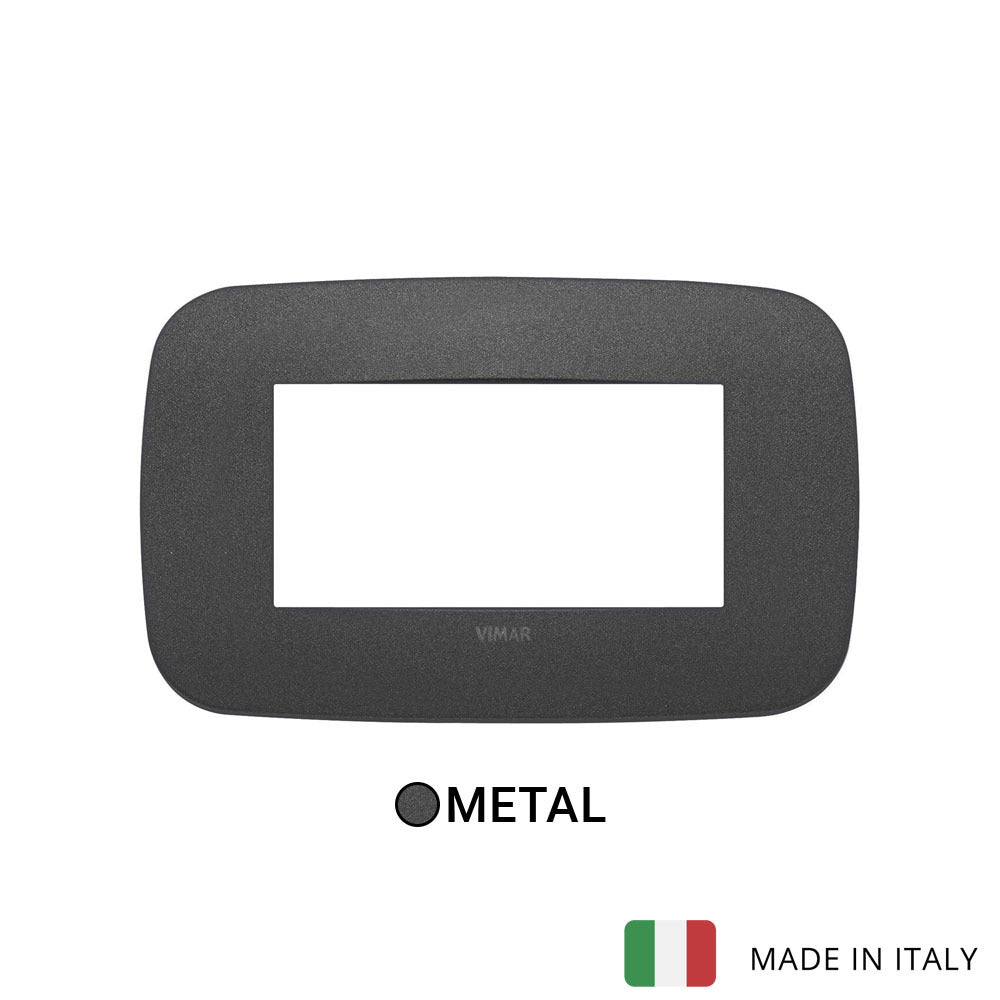

Vimar Arke Round Plate 4M Metal Matt Graphite

4 Module Classic Round Matt Graphite
SKU VM-19684.21
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19684.21 is Vimar ARKÉ 19684.21, round 4M cover plate, graphite matt.

Round 4-module cover plate, metal, graphite matt

Specifications

VM-19684.21Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9004
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
8.5 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352449244
Packed size (cm)
15 × 9.6 × 1.6
Packed weight
124.8 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

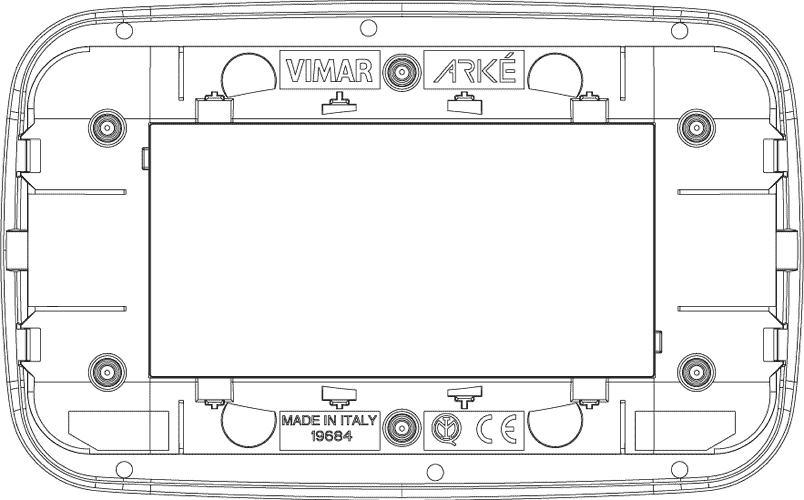

Technical drawings

VM-19684.21 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 4M Metal Matt Graphite used with?

The Vimar Arke Round Plate 4M Metal Matt Graphite is a cover plate for Vimar Arké switch and socket configurations. It is intended for 4M layouts in the Arké range and provides the visible finished plate for compatible modules.

What material is the VM-19684.21 cover plate made from?

This model is made from painted zamak. The material gives the Arké plate a more high-tech appearance while supporting the matt graphite finish.

Where is a matt graphite metal Arké cover plate typically a good fit?

The matt graphite finish suits commercial, hospitality, office, and residential interiors where a darker architectural switch finish is preferred. It is a decorative cover plate for Vimar Arké switch and socket points, not a standalone electrical device.

What temperature range is this Vimar Arké plate rated for?

The VM-19684.21 has a stated operating temperature range from -20 °C to 50 °C. This makes it suitable for normal indoor environments within that temperature range.

What is the weight of the Vimar Arke Round Plate 4M Metal Matt Graphite?

This cover plate weighs 0.1248 kg. The weight reflects its painted zamak metal construction.

What warranty period applies to model VM-19684.21?

The listed warranty period for VM-19684.21 is 3 years. This applies to the Vimar Arke Round Plate 4M Metal Matt Graphite as specified for this product record.
