Vimar

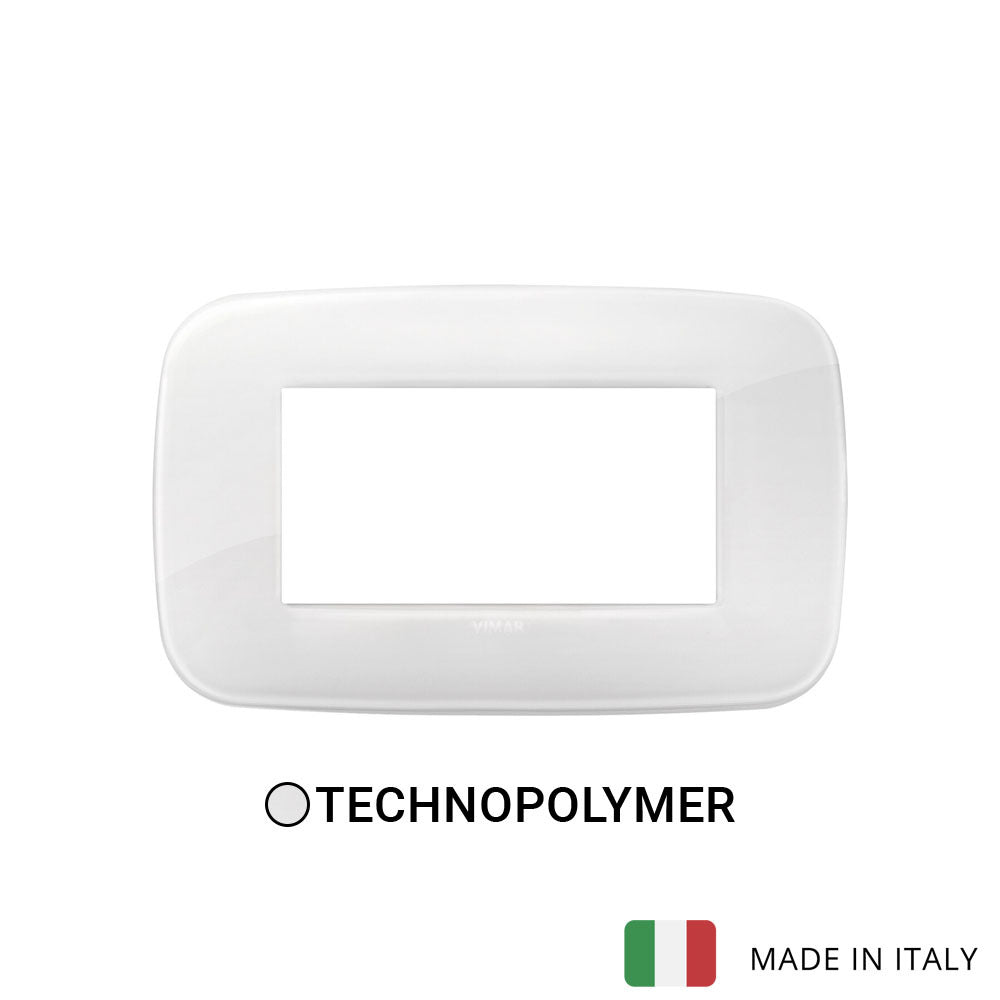

Vimar Arke Round Plate 4M Reflex Ice White

4 Module Round White
SKU VM-19684.66
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19684.66 is Vimar ARKÉ 19684.66, round 4M Reflex ice cover plate.

Round 4-module cover plate, technopolymer, Reflex ice

Specifications

VM-19684.66Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
9.1 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352440708
Packed size (cm)
14.5 × 9 × 0.9
Packed weight
41.1 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

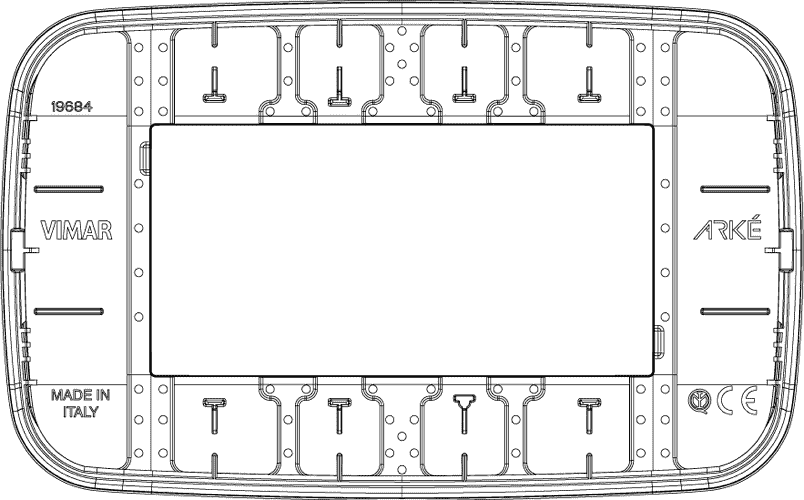

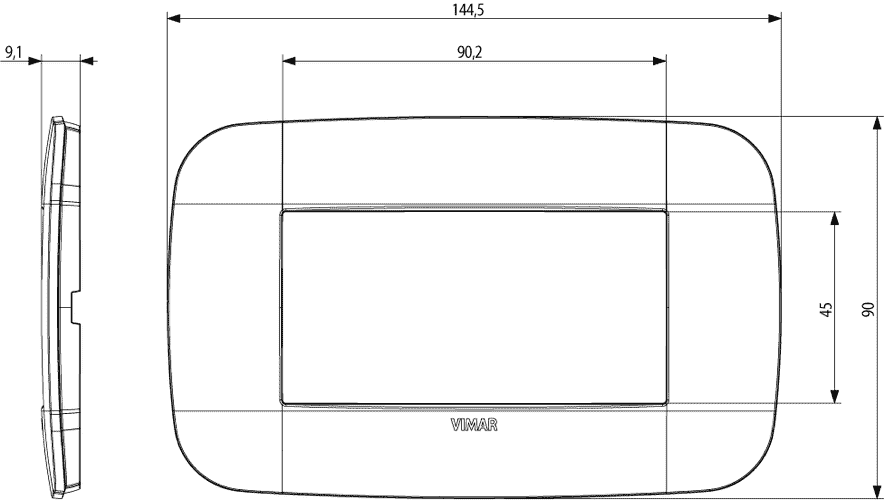

Technical drawings

VM-19684.66 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 4M Reflex Ice White used for?

The Vimar Arke Round Plate 4M Reflex Ice White is a switch cover plate for light switch and socket applications in the Vimar Arké range. Its white finish and round plate design make it suitable for clean, modern residential or commercial interiors.

Is this cover plate part of the Vimar Arké series?

Yes. This model is identified as a Vimar Arké 4M cover plate and is listed under Arké switch cover and module categories. It is intended for use within the matching Arké switch plate system.

What colour and finish is SKU VM-19684.66?

SKU VM-19684.66 has a white finish colour. The product name describes it as Reflex Ice White, giving it a minimalist appearance suited to many interior styles.

What temperature range is this Vimar Arké plate rated for?

This model is specified for temperatures from -20 °C to 50 °C. That range supports use in typical indoor environments where temperatures remain within those limits.

How much does the Vimar Arke Round Plate 4M Reflex Ice White weigh?

The listed weight for this cover plate is 0.0411 kg. Its low weight is typical for a plastic switch cover plate of this type.

What warranty period applies to this model?

The warranty period listed for SKU VM-19684.66 is 3 years. This applies to the Vimar Arke Round Plate 4M Reflex Ice White as specified in the product data.
