Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

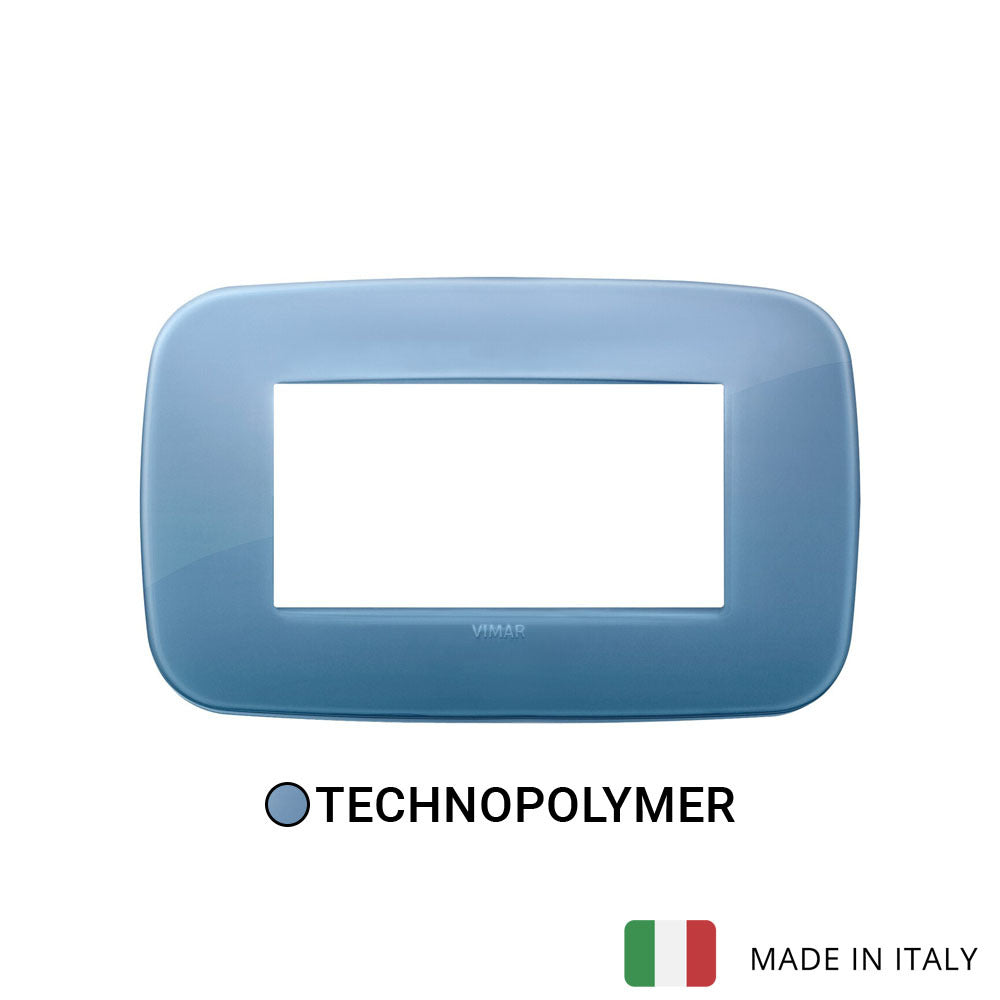

Vimar Arke Round Plate 4M Reflex Marine Blue

4 Module Round Blue
SKU VM-19684.64
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19684.64 is Vimar ARKÉ 19684.64, round 4M cover plate, Reflex ultramarine.

Round 4-module cover plate, technopolymer, Reflex ultramarine

Specifications

VM-19684.64Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Blue
RAL-number (similar)
5009
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
9.1 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352440661
Packed size (cm)
14.5 × 9 × 0.9
Packed weight
41.1 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

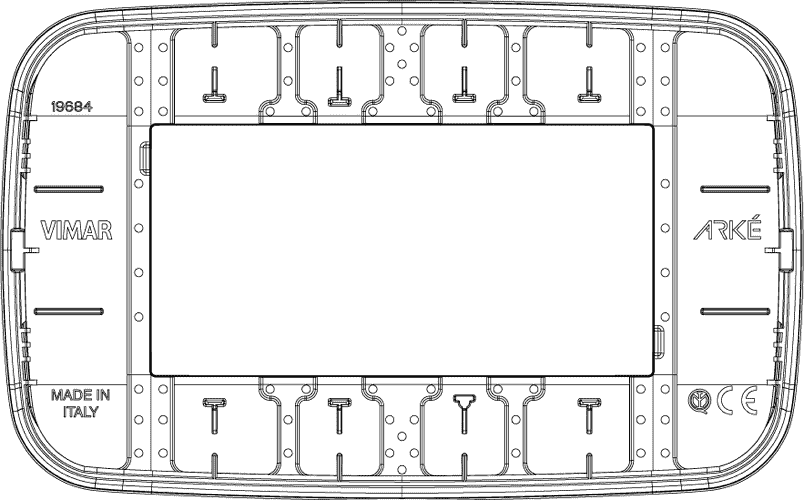

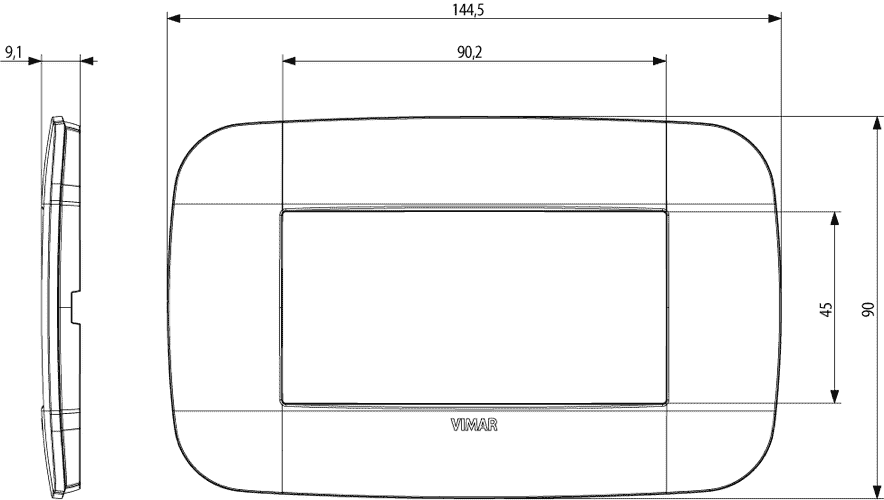

Technical drawings

VM-19684.64 Drawings
Drawings

Downloads

FAQ

What product range is this Vimar plate made for?

The VM-19684.64 is part of the Vimar Arké range. It is a 4M cover plate intended for Arké light switch and socket applications where this plate format is specified.

Where is the Reflex Marine Blue finish most suitable?

This plate is suited to residential, hospitality, and commercial interiors that use Vimar Arké devices. The blue Reflex Marine finish is a style-focused option for projects that need a more distinctive look than a standard neutral plate.

What are the key specifications of this model?

This model is a Vimar Arké Round Plate 4M in Reflex Marine Blue. It has a blue finish, weighs 0.0411 kg, and is supplied with a 3-year warranty period.

What temperature range is this cover plate rated for?

The specified operating temperature range for this model is -20 °C to 50 °C. This makes it suitable for environments that remain within those stated limits.

How does this plate differ from plain white Arké plates?

This model uses a Reflex Marine Blue finish instead of a classic minimalist white finish. It is intended for projects where the switch cover plate is part of the visible design detail rather than a purely neutral surface.
