Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 4M Reflex Smoke Grey

4 Module Round Grey
SKU VM-19684.61
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

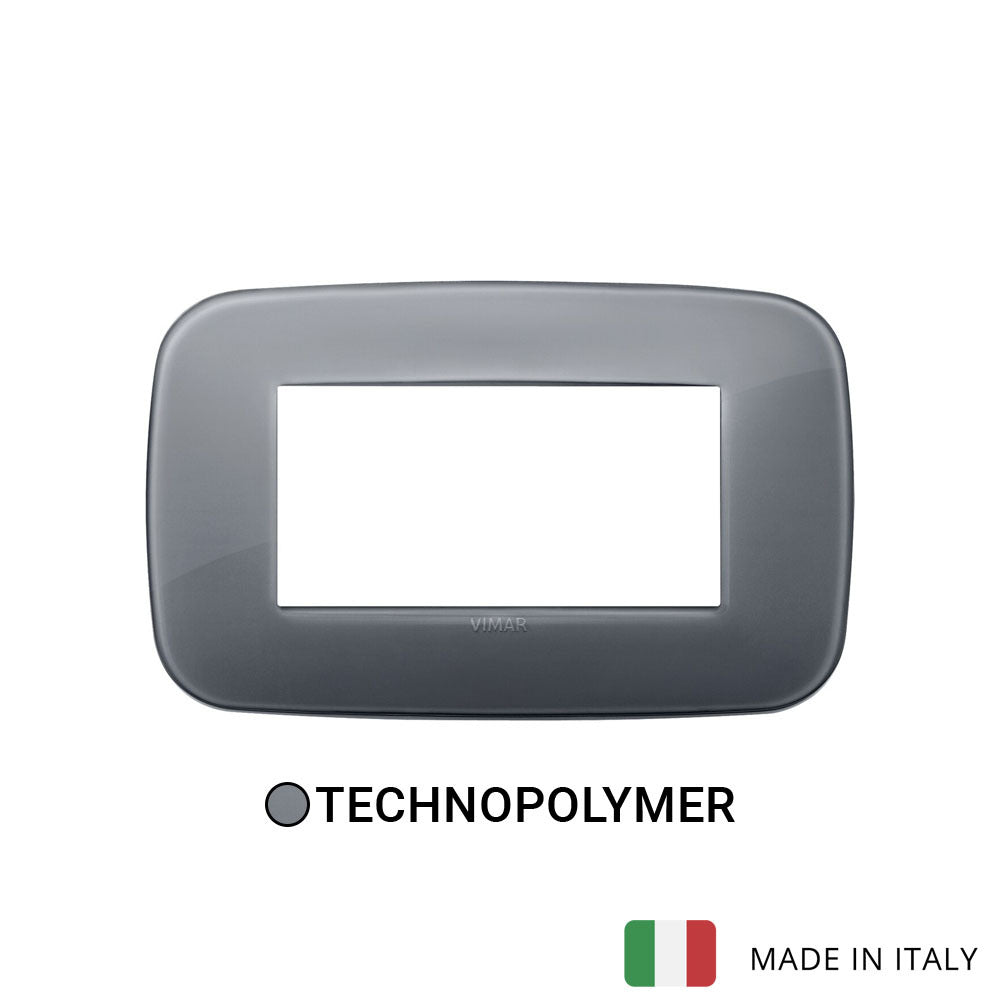

VM-19684.61 is Vimar ARKÉ 19684.61, round 4M Reflex cover plate, smoke grey.

Round 4M Reflex cover plate, smoke grey

Specifications

VM-19684.61Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Grey
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
9.1 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352440609
Packed size (cm)
14.5 × 9 × 0.9
Packed weight
41.2 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

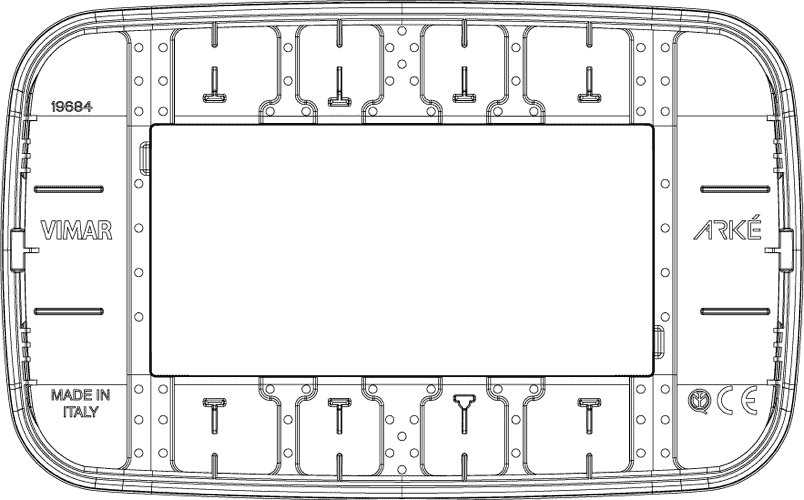

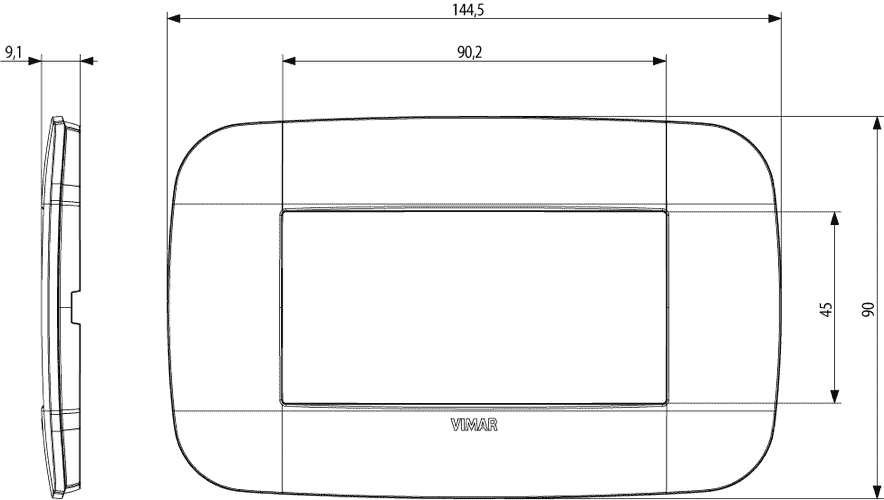

Technical drawings

VM-19684.61 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 4M Reflex Smoke Grey used for?

The VM-19684.61 is a 4M cover plate for Vimar Arké switch and socket layouts. It provides the visible finishing plate for compatible Arké configurations, with a round Reflex Smoke Grey appearance suited to modern residential, commercial, and hospitality interiors.

Is this plate part of the Vimar Arké range?

Yes. This model is listed as a Vimar Arké round plate and belongs to the Arké switch cover plate family. It is intended for use within Arké-style switch and socket assemblies where a 4M plate is required.

What colour and finish is this cover plate?

This model has a grey finish colour and is described as Reflex Smoke Grey. The look is contemporary and understated, making it suitable for spaces where the switch finish should coordinate with modern interior details.

What environments is this Vimar Arké plate suitable for?

The product specification lists an operating temperature range from -20 °C to 50 °C. That makes it suitable for typical indoor residential, hotel, and commercial environments that stay within this temperature range.

How does this plate differ from a basic white Arké plate?

This version uses a Reflex Smoke Grey finish rather than the classic minimalist white option referenced for the Arké range. It is a more design-led choice for projects where the visible switch plate should contribute to the room finish rather than blend into the wall.

What are the weight and warranty details for model VM-19684.61?

The listed product weight is 0.0412 kg. The warranty period provided for this model is 3 years.
