Vimar Arke Round Plate 4M Technopolymer Red
Log in to see priceOverview

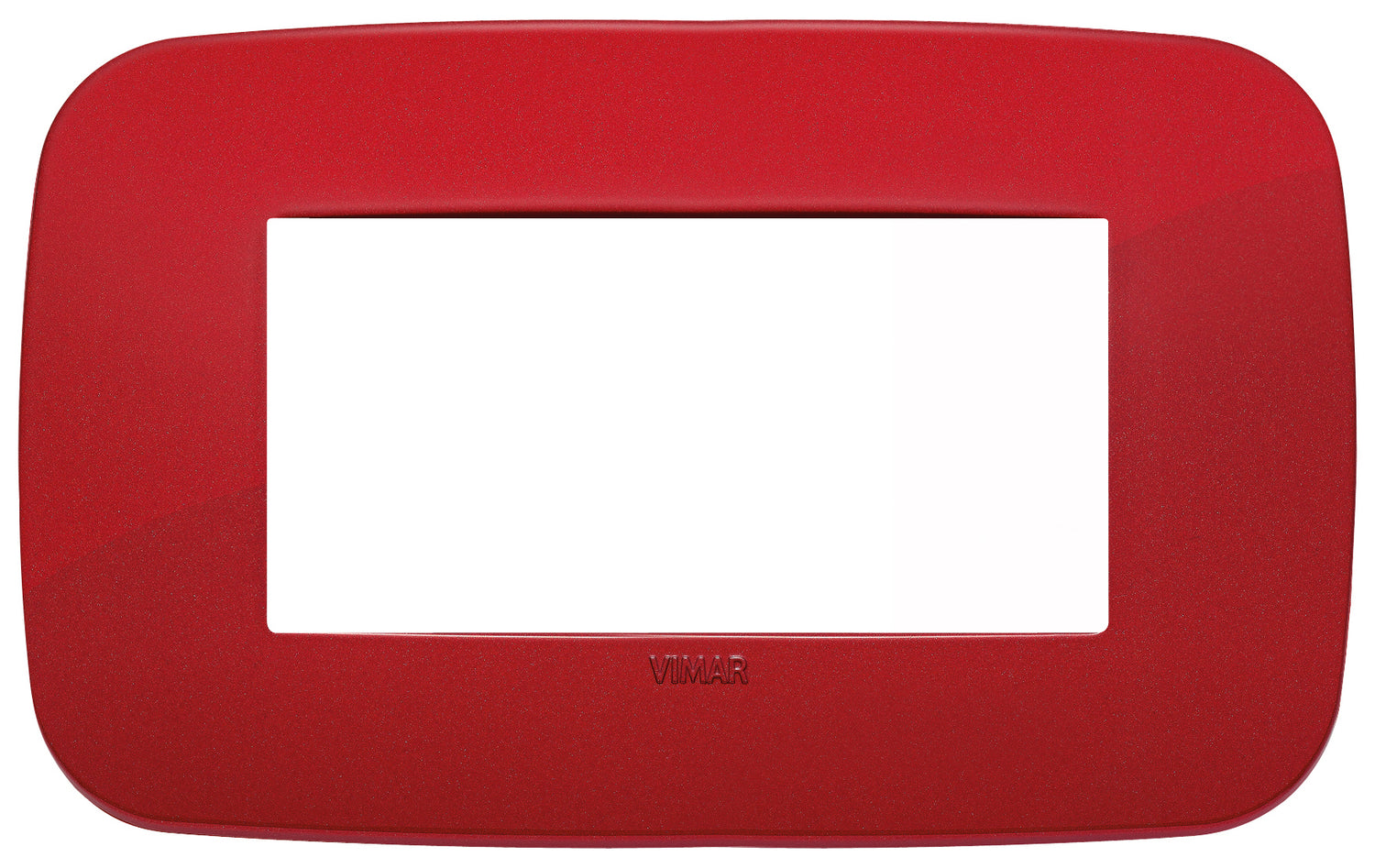

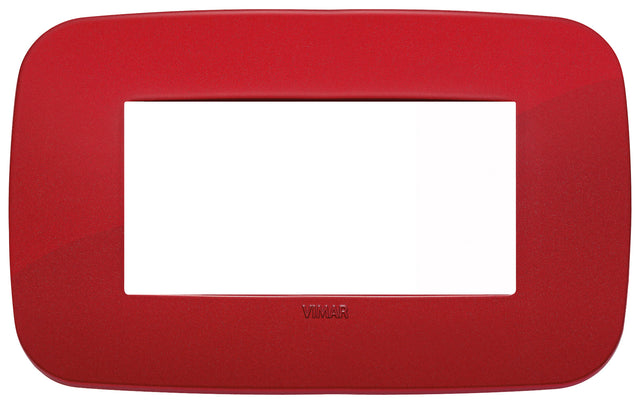

VM-19684.85 is Vimar ARKΓ 19684.85, round 4M cover plate red.
Round 4-module cover plate, technopolymer, red
Specifications
Technical data
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Glossy
- Colour
- Red
- RAL-number (similar)
- 3011
- Transparent
- No
- With hinged lid
- No
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 144.5 mm
- Height
- 90 mm
- Depth
- 8.5 mm
- Built-in width
- 144.5 mm
- Built-in height
- 90 mm
Packaging
- EAN
- 8007352449503
- Packed size (cm)
- 14.5 Γ 9 Γ 0.9
- Packed weight
- 21.8 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

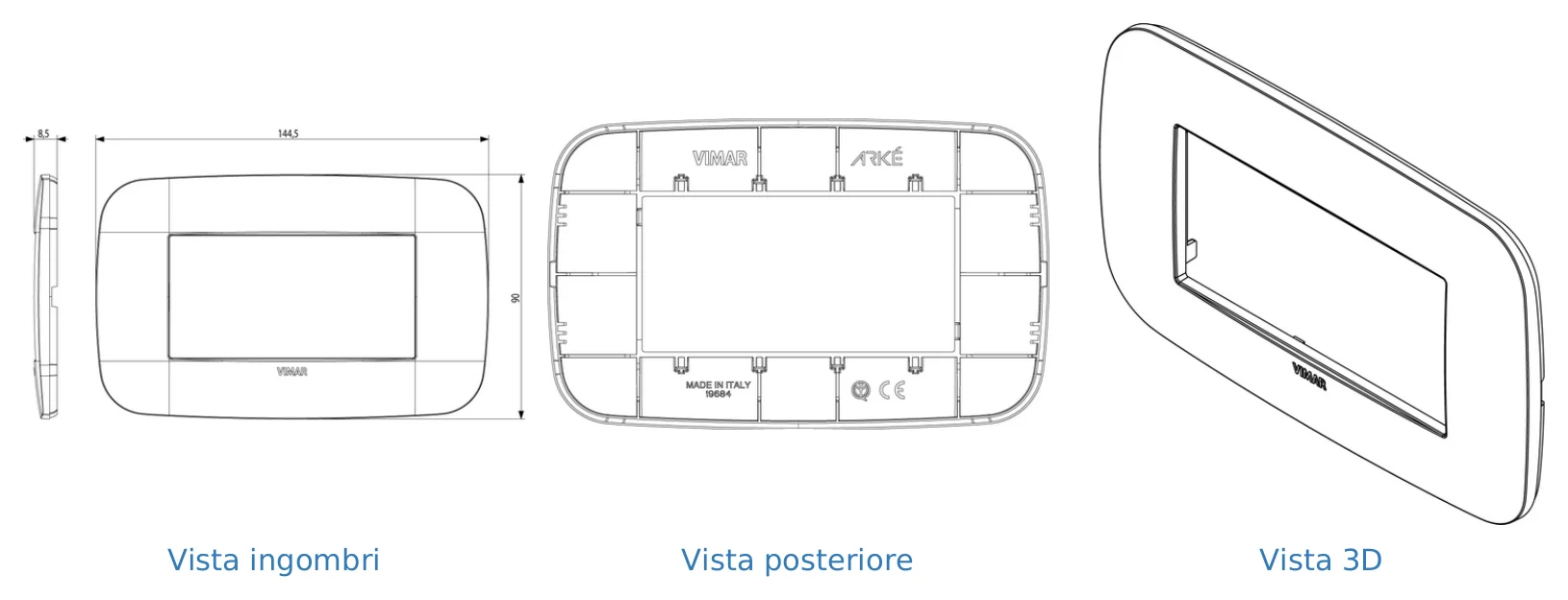

Technical drawings
Downloads
Certificates5
Catalogues15
FAQ
What is the Vimar Arke Round Plate 4M Technopolymer Red used for?
The VM-19684.85 is a 4-module cover plate for Vimar Arke light switch and socket ranges. It is intended for product pages where buyers need a red Arke-series cover plate with a finished decorative face.
Is this cover plate part of the Vimar Arke series?
Yes. This product is listed under Vimar Arke switch cover and module categories, and the product name identifies it as a Vimar Arke round plate. Buyers matching Arke components should verify the 4M format and red finish against their project requirements.
What material is the VM-19684.85 plate made from?
This model is made from technopolymer. The description notes a special painted finish that gives the surface an intriguing metallic effect.
What colour and finish does this Vimar Arke plate have?
The finish colour is red. Its painted technopolymer finish is described as having a metallic effect with an elegant vibrancy, suited to a modern high-tech style.
What temperature range is this cover plate rated for?
The listed operating temperature range is from -20 Β°C to 50 Β°C. This makes the specification relevant for buyers checking environmental suitability before selecting the VM-19684.85.
How heavy is the Vimar Arke Round Plate 4M Technopolymer Red?
The listed weight is 0.0218 kg. This is a lightweight cover plate, which may be useful for procurement records, shipping estimates, or product comparison.
What warranty period is listed for this product?
The VM-19684.85 has a listed warranty period of 3 years. Buyers should keep the SKU and purchase details available for warranty or replacement enquiries.
