Vimar Arke Round Plate 4M Technopolymer Silver
Log in to see priceOverview

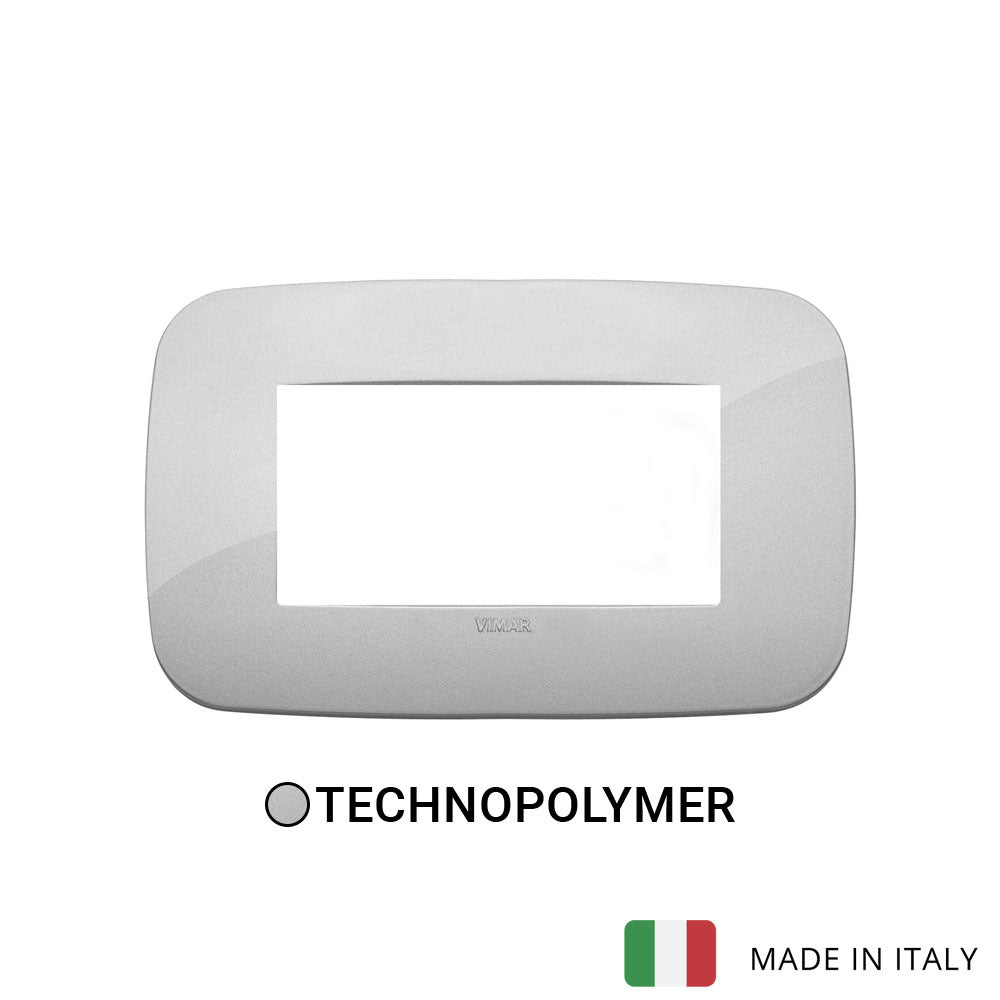

VM-19684.89 is Vimar ARKΓ 19684.89, round 4M cover plate silver.
Round 4-module cover plate, technopolymer, silver
Specifications
Technical data
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Glossy
- Colour
- Silver
- RAL-number (similar)
- 6021
- Transparent
- No
- With hinged lid
- No
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 144.5 mm
- Height
- 90 mm
- Depth
- 8.5 mm
- Built-in width
- 144.5 mm
- Built-in height
- 90 mm
Packaging
- EAN
- 8007352449589
- Packed size (cm)
- 14.5 Γ 9 Γ 0.9
- Packed weight
- 22 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

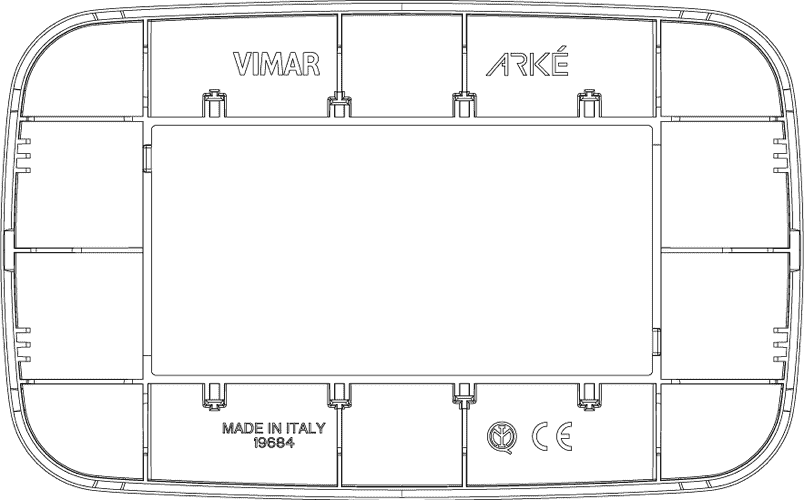

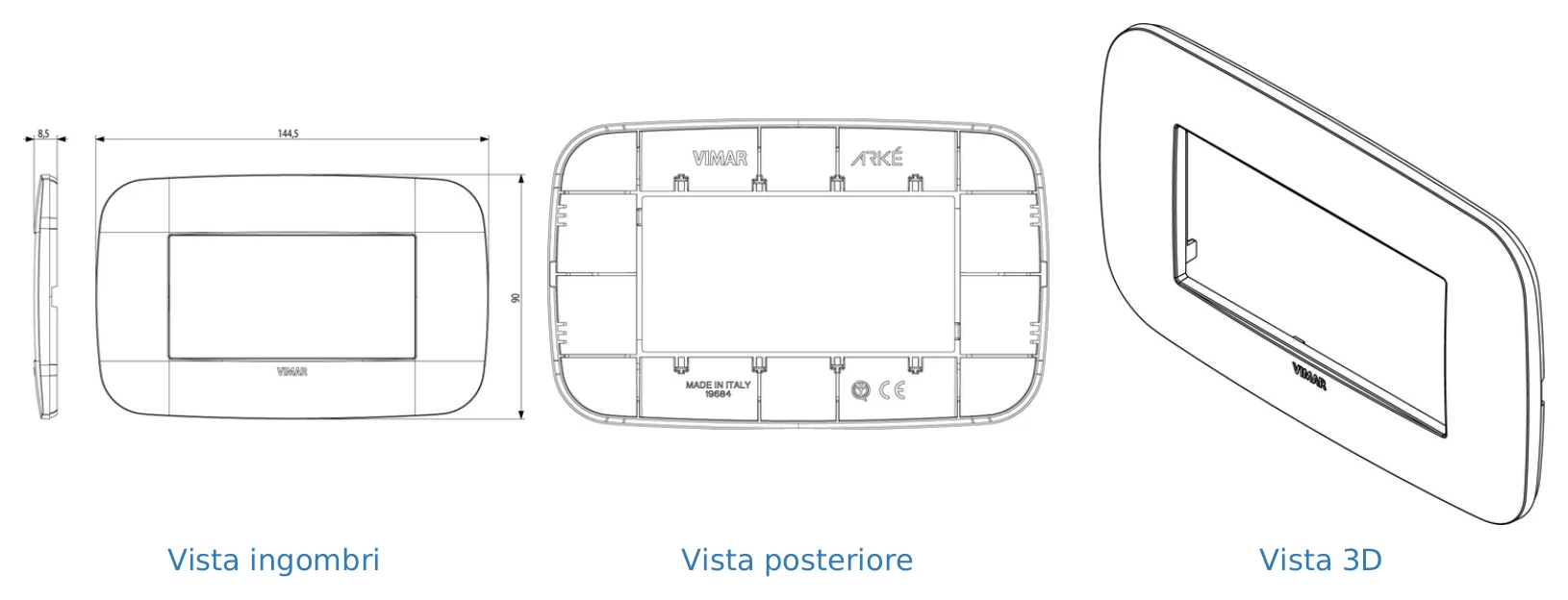

Technical drawings
Downloads
Certificates5
Catalogues15
FAQ
What is the finish and material of the Vimar Arke Round Plate 4M?
The VM-19684.89 plate is made from technopolymer and has a special painted silver finish. The finish is designed to create a metallic effect with a matt silver, high-tech appearance.
Which Vimar series is this cover plate intended for?
This cover plate is part of the Vimar Arke range. It is categorized for Arke cover plate and module applications, specifically as a 4M round plate.
Where is this silver Arke plate typically used?
This product is used as a cover plate for light switch and socket layouts in the Vimar Arke system. Its silver metallic-effect finish makes it suitable for modern interiors where a clean, high-tech look is preferred.
What temperature range is this plate rated for?
The VM-19684.89 is rated for use from -20 Β°C to 50 Β°C. This range helps buyers confirm whether the plate is suitable for the expected indoor or protected environment.
How much does the Vimar Arke Round Plate 4M weigh?
This cover plate weighs 0.0220 kg. Its low weight is typical for a technopolymer switch cover plate.
What warranty period applies to this Vimar Arke plate?
The listed warranty period for this model is 3 years. This applies to SKU VM-19684.89 as specified in the product data.
