Vimar

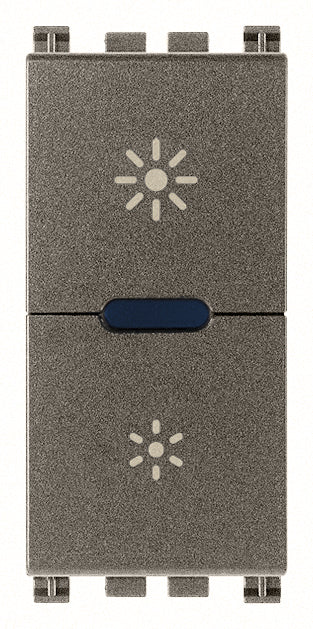

Vimar Arke Universal Master Push Dimmer 230V Aluminium

230V Aluminium
SKU VM-19135.1.M
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19135.1.M is Vimar ARKÉ 19135.1.M, universal MASTER dimmer 230V Metal.

Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps, LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 19137, minimum brightness regulation, visible in darkness, Metal. Not for Isoset enclosures

Specifications

VM-19135.1.MSpecifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Transparent
No
Nominal voltage
230 - 230.01 V
Connection type
Screwed terminal
Device width
22.2 mm
Device height
49 mm
Device depth
50 mm

Packaging

EAN
8007352594180
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
54.6 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, IMQ (Italy), TISI (Thailand), WEEE Directive

Technical drawings

VM-19135.1.M Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Universal Master Push Dimmer 230V Aluminium used for?

This model is a dimmer module in the Vimar Arke range for lighting control applications. It is suited to projects that need a clean, modern finish while keeping the control point within the Arke design family. The aluminium version is especially aligned with higher-end residential and hospitality interiors.

What makes the aluminium finish different from other Arke options?

This version uses an aluminium finish that gives the product a more architectural, material-led appearance. Compared with simpler neutral finishes, it is aimed at interiors where the hardware is intended to contribute visibly to the design. That makes it a strong fit for premium residential rooms and hotel spaces.

Is this dimmer part of the Vimar Arke series?

Yes. The product name and category data place this model within the Vimar Arke switch and dimmer module range. It is intended for buyers standardising on Arke-series devices for a consistent look across the project.

What are the key specifications of this model?

This is the Vimar Arke Universal Master Push Dimmer in the aluminium finish, with a 230V rating in the product name. The listed product weight is 0.0546 kg. The stated warranty period is 3 years.

What operating temperature range is specified for this dimmer?

The stated operating temperature range is from -20 °C to 50 °C. That gives it a broad environmental window for suitable indoor electrical applications. Buyers should match that range against the expected conditions of the project.
