Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

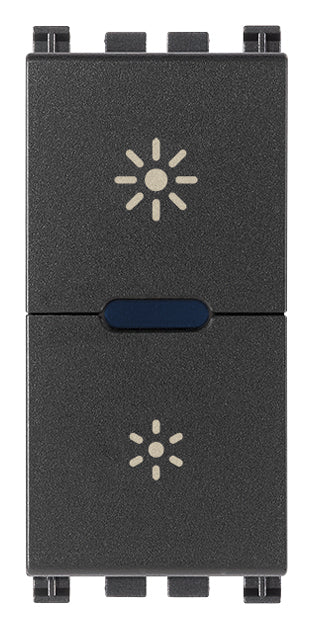

Vimar Arke Universal Master Push Dimmer 230V Grey

230V Grey
SKU VM-19135.1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19135.1 is Vimar ARKÉ 19135.1, universal MASTER dimmer 230V grey.

Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps, LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 19137, minimum brightness regulation, visible in darkness, grey. Not for Isoset enclosures

Specifications

VM-19135.1Specifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Push button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Connection type
Screwed terminal
Device width
22.2 mm
Device height
49 mm
Device depth
50 mm

Packaging

EAN
8007352555792
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
54.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, IMQ (Italy), TISI (Thailand), WEEE Directive

Technical drawings

VM-19135.1 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Universal Master Push Dimmer 230V Grey used for?

This model is a switch dimmer module designed for lighting control in Vimar Arke installations. It is intended for applications where a clean, integrated dimming control is needed with the Arke aesthetic and grey finish.

What makes this dimmer part of the Vimar Arke range?

This product belongs to the Vimar Arke series, which is positioned around a contemporary, minimalist design language. For this specific model, that means a universal master push dimmer module finished in grey to match Arke-compatible setups.

What voltage is this dimmer rated for?

The Vimar Arke Universal Master Push Dimmer is rated for 230V. That rating is part of the product specification for this exact model, SKU VM-19135.1.

Can this dimmer be used in demanding temperature conditions?

This model has a specified operating temperature range from -20 °C to 50 °C. That makes it suitable for environments that may experience colder or warmer ambient conditions within that range.

What finish and appearance does this model have?

This version comes in a grey finish. It is designed to fit the Vimar Arke style, which emphasizes a modern and functional look suitable for refined residential or hospitality interiors.

How heavy is the Vimar Arke Universal Master Push Dimmer 230V Grey?

The listed product weight is 0.0544 kg. This lightweight form factor is consistent with a compact switch dimmer module intended for use within the Arke modular range.

What warranty is provided for this dimmer module?

This model carries a 3-year warranty period. That gives buyers a clear coverage term for this specific Vimar Arke dimmer module.
