Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

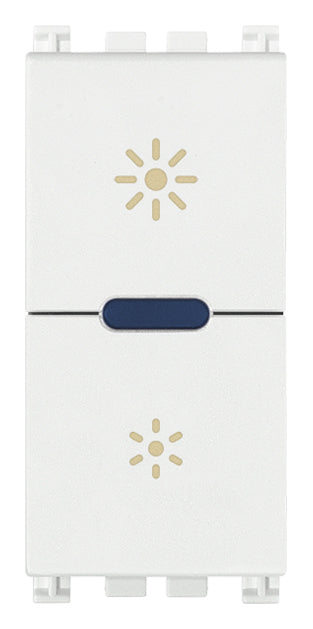

Vimar Arke Universal Master Push Dimmer 230V White

230V White
SKU VM-19135.1.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19135.1.B is Vimar ARKÉ 19135.1.B, universal MASTER dimmer 230V white.

Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps, LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 19137, minimum brightness regulation, visible in darkness, white. Not for Isoset enclosures

Specifications

VM-19135.1.BSpecifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Push button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Connection type
Screwed terminal
Device width
22.2 mm
Device height
49 mm
Device depth
50 mm

Packaging

EAN
8007352555815
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
54.8 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, IMQ (Italy), TISI (Thailand), WEEE Directive

Technical drawings

VM-19135.1.B Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Universal Master Push Dimmer 230V White used for?

This model is a dimmer module intended for controlling lighting levels in spaces that use the Vimar Arke range. It is suited to projects where a clean white finish and a modern, minimal look are important. For B2B buyers, it fits residential and hospitality interiors that want coordinated switch aesthetics.

Which design series does this dimmer belong to?

This dimmer belongs to the Vimar Arke series. Its white finish is part of the classic Arke look, making it a strong fit for projects that need a neutral appearance that blends into different interior styles. It is positioned as an Arke module rather than a generic standalone switch component.

What are the main specifications of this dimmer module?

The product name identifies it as a 230V universal master push dimmer in white. The listed product weight is 0.0548 kg, which makes it a compact, lightweight module for specification and procurement purposes. It also carries a 3-year warranty period.

Can this dimmer be used in demanding temperature conditions?

The stated operating temperature range is from -20 °C to 50 °C. That gives buyers a clear environmental window for specifying it in projects exposed to typical indoor variations and some broader site conditions. Final suitability should still be checked against the overall application environment.

How does the white version compare with other Arke finishes?

The white version is the most neutral and understated option in the Arke family, making it easier to use across a wide variety of commercial and residential interiors. Compared with more material-driven or metallic variants, it prioritizes versatility and a classic minimalist appearance. That makes it a practical choice when consistency across multiple rooms or units matters.
