Vimar Arke Universal Master Rotary Dimmer 230V Aluminium
Log in to see priceOverview

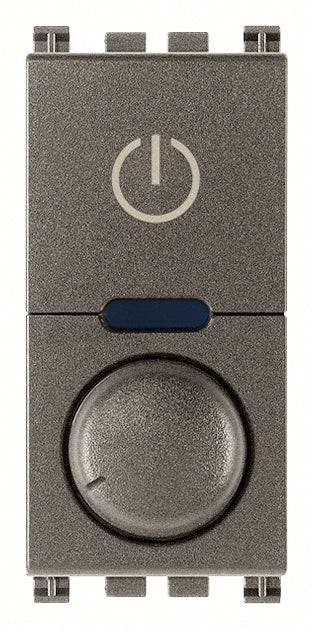

VM-19136.1.M is Vimar ARKΓ 19136.1.M, univ.MASTER rotary-dimmer 230V Metal.
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps, LED phase-cutting electronic transfomers, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 19137, minimum brightness regulation, visible in darkness, Metal. Not for Isoset enclosures
Specifications
Technical data
- Product type
- Dimmer
- Operating method
- Turn button
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Aluminium
- RAL-number (similar)
- 9007
- Transparent
- No
- Nominal voltage
- 230 - 230.01 V
- Connection type
- Screwed terminal
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 60.4 mm
Packaging
- EAN
- 8007352594227
- Packed size (cm)
- 5.2 Γ 3.9 Γ 6.2
- Packed weight
- 56 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), RoHS UAE, TISI (Thailand), WEEE Directive

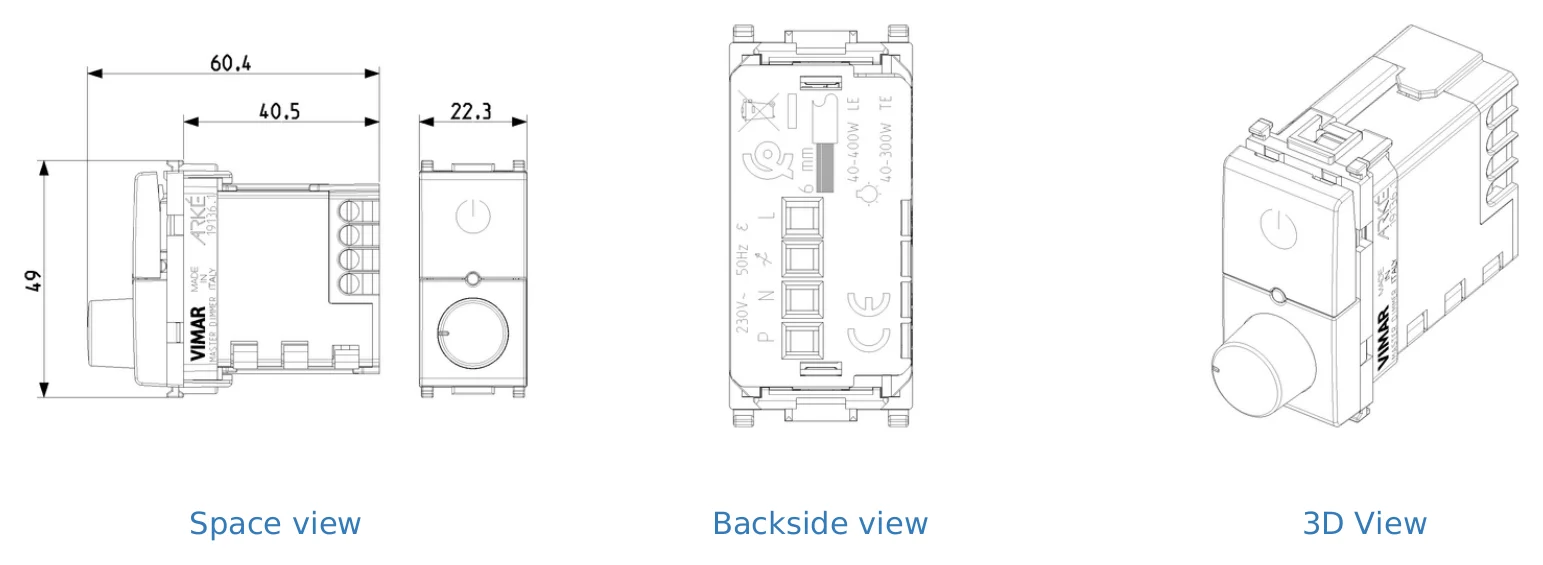

Technical drawings
Downloads
Certificates6
Catalogues15
FAQ
What is the Vimar Arke Universal Master Rotary Dimmer 230V Aluminium designed for?
This model is a rotary dimmer module intended for lighting control in Vimar Arke switch systems. It is positioned for projects where buyers want a dimming solution with a refined aluminium finish that suits modern residential or hospitality interiors.
What makes the aluminium version different within the Arke range?
The main differentiator of this version is its aluminium finish, which gives it a more material-driven and design-focused appearance. According to the product description, the Arke Metal look is especially suited to residential spaces and hotels that want a warmer metallic style detail.
Is this dimmer suitable for hospitality or commercial-style interiors?
Yes, this model is a strong fit for hospitality-oriented interiors where appearance matters alongside function. The product description specifically highlights Arke Metal as a good choice for residential spaces and hotels aiming for a distinctive finish.
What are the key specifications of this dimmer module?
This product is a 230V universal master rotary dimmer in the Vimar Arke range with an aluminium finish. Its listed weight is 0.056 kg, and it comes with a 3-year warranty.
What operating temperature range is specified for this model?
The specified operating temperature range for this dimmer module is from -20Β°C to 50Β°C. That makes it suitable for use in environments that stay within that stated range.
Is this product part of the Vimar Arke series?
Yes, this dimmer is part of the Vimar Arke series and is categorized under Arke switch dimmer modules. That makes it relevant for buyers standardizing on Arke-branded devices and finishes across a project.
