Vimar

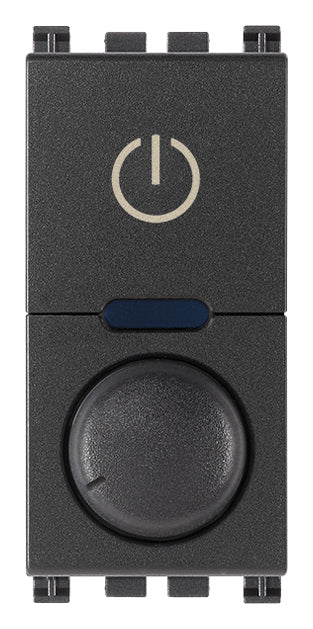

Vimar Arke Universal Master Rotary Dimmer 230V Grey

230V Grey
SKU VM-19136.1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19136.1 is Vimar ARKÉ 19136.1, univ.MASTER rotary-dimmer 230V grey.

Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps, LED phase-cutting electronic transfomers, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 19137, minimum brightness regulation, visible in darkness, grey. Not for Isoset enclosures

Specifications

VM-19136.1Specifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Connection type
Screwed terminal
Device width
22.3 mm
Device height
49 mm
Device depth
60.4 mm

Packaging

EAN
8007352555617
Packed size (cm)
5.2 × 3.9 × 6.2
Packed weight
56.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, TISI (Thailand), WEEE Directive

Technical drawings

VM-19136.1 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Universal Master Rotary Dimmer 230V Grey used for?

This model is a rotary dimmer module designed for lighting control within the Vimar Arke range. It is suited to projects where a clean, integrated dimming control is needed as part of a modular switch system. Its grey finish also makes it a fit for interiors where the control hardware needs to match a contemporary look.

How does this dimmer fit within the Vimar Arke range?

This product belongs to the Vimar Arke series, which is positioned around a modern, minimalist aesthetic. The grey version is intended for applications where the switch module should coordinate with the Arke design language rather than stand out as a generic control. For buyers standardizing a project, that makes it a series-matched component rather than a standalone style choice.

What are the key specifications of this dimmer module?

The model is identified as SKU VM-19136.1 and is described as a universal master rotary dimmer rated for 230V. It has a grey finish, a listed weight of 0.0564 kg, and a warranty period of 3 years. These details make it suitable for specification and procurement in projects using Vimar Arke modules.

Is this a heavy module for stocking or handling on larger projects?

No, this dimmer module is relatively lightweight at 0.0564 kg. That makes it practical for trade purchasing, storage, and handling where multiple modules are being ordered for a coordinated fit-out. The low unit weight is useful for estimating packed order weights as well.

What temperature range is this dimmer module rated for?

This model has a stated operating temperature range from -20 °C to 50 °C. That gives it a defined environmental window for specification in demanding indoor conditions and a range of commercial or residential settings. Buyers should match the project environment to those stated limits.

Is this model intended for buyers already using Vimar Arke switches and modules?

Yes, this product is positioned within the Vimar Arke module and switch-dimmer categories, so it is most relevant for projects already built around that series. It is a better fit for maintaining visual and product-family consistency than mixing unrelated ranges. For B2B buyers, that helps simplify range standardization across a site or portfolio.
