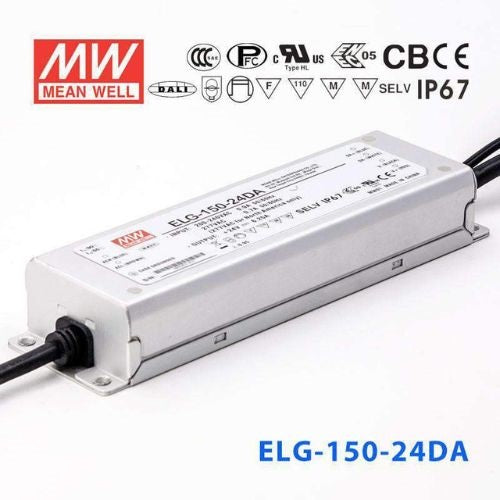

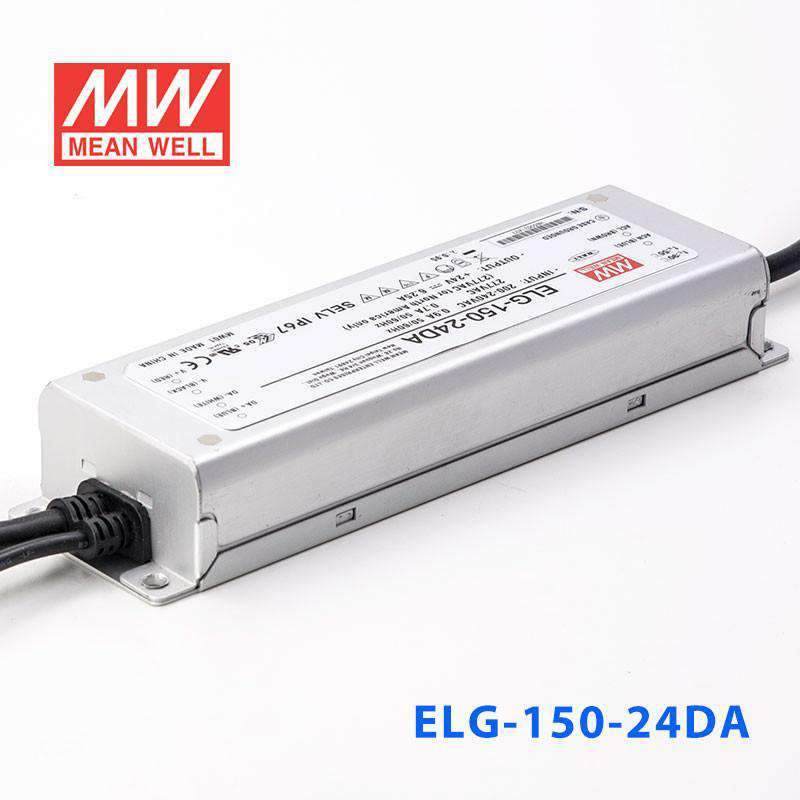

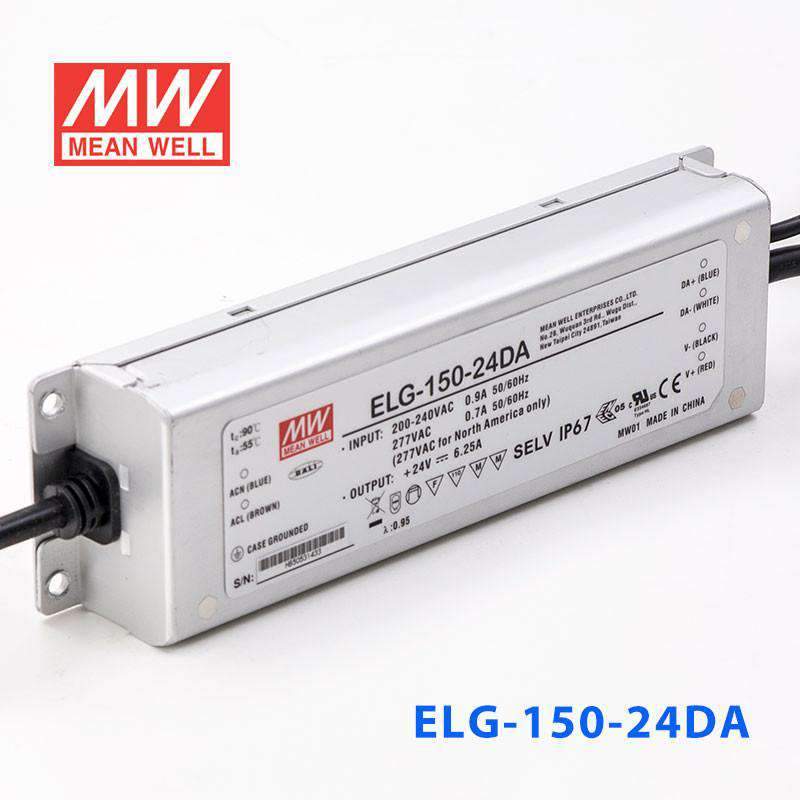

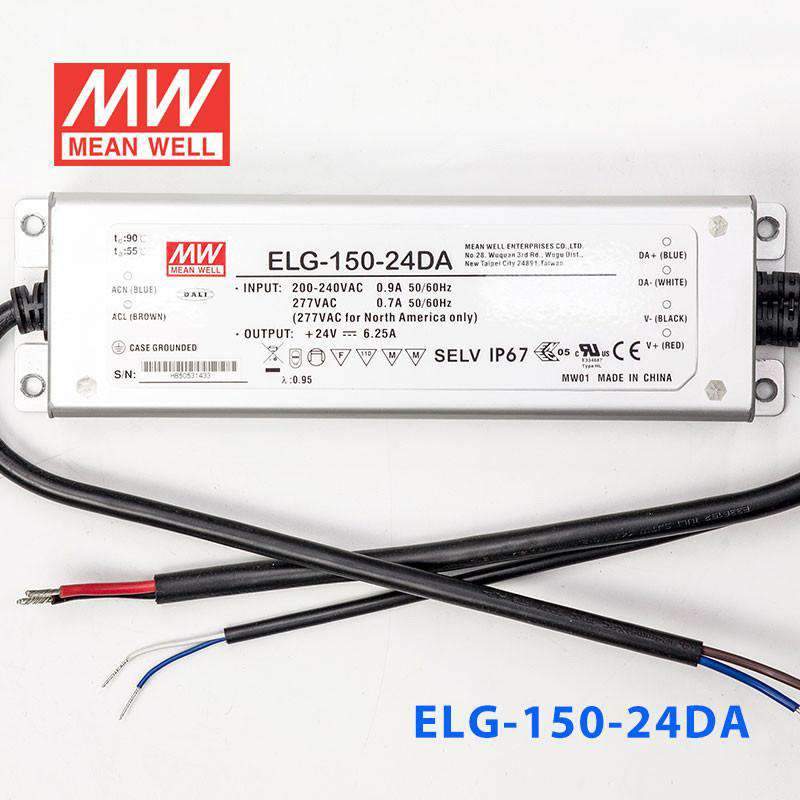

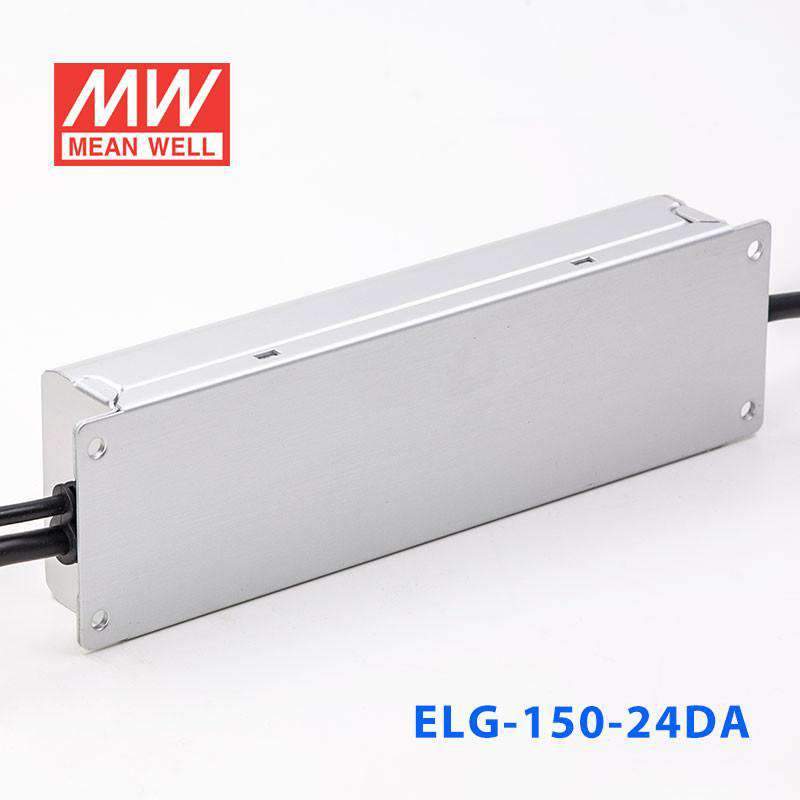

Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A
Log in to see priceOverview
ELG-150-24DA is the 24V output model of this series: rated current 6.25A, typical efficiency 89%.
ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40β ~ +90β case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
- Typical lifet ime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.2
- 12 ~ 24V
- RATED CURRENT
- 6.25A
- RATED POWER 100VAC ~ 180VAC
- 105W
- RATED POWER 200VAC ~ 305VAC
- 150W
- RIPPLE & NOISE (max.)Note.3
- 200mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 21.6 ~ 26.4V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 3.2 ~ 6.25A
- VOLTAGE TOLERANCENote.4
- Β±3.0%
- LINE REGULATION
- Β±0.5%
- LOAD REGULATION
- Β±1.0%
- SETUP, RISE TIMENote.6
- 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
- HOLD UP TIME (Typ.)
- 10ms/115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PFβ§0.97/115VAC, PFβ§0.95/230VAC, PFβ§0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@loadβ§50%/115VC; @loadβ§60%/230VAC; @loadβ§75%/277VAC) (Please refer to βTOTAL HARMONIC DISTORTION(THD)β section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT
- 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=550ΞΌs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28 ~ 34V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90β (Please refer to β OUTPUT LOAD vs TEMPERATUREβ section)
- MAX. CASE TEMP.
- Tcase=+90β
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03%/β (0 ~ 60β)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(typeβHLβ), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@loadβ§60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25β)
- DIMENSION
- 219*63*35.5mm (L*W*H)
- PACKING
- 0.95Kg ; 16pcs/16.0kg/0.77CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes14
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25β of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to βSTATIC CHARACTERISTICSβ sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80β or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5β/1000m with fanless models and of 5β/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 13. ELG-150-12(except blank/A-Type) is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) .
- 14. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type βHLβ for use in Class I, Division 2 hazardous (Classified) location.
Downloads
FAQ
What is the DALI interface on the ELG-150-24DA and what systems is it compatible with?
The DA suffix indicates this driver has a DALI (Digital Addressable Lighting Interface) input compliant with IEC 62386-101 and -102. DALI is a two-wire digital bus used in commercial building lighting control systems, allowing each driver on the bus to be individually addressed and dimmed from a DALI controller without additional analog wiring.
Can the ELG-150-24DA be used to retrofit DALI-controlled LED strip lighting in a commercial office?
Yes. The ELG-150-24DA is designed for this use case. It accepts DALI commands to smoothly dim 24V LED strips and can be individually addressed on a shared DALI bus, enabling scene control and occupancy-based dimming as expected in commercial office environments.
Is the ELG-150-24DA suitable for outdoor DALI-controlled signage or facade lighting?
Yes. The IP67 waterproof rating allows the ELG-150-24DA to be placed in outdoor enclosures subject to rain and moisture. Combined with its -40Β°C to +90Β°C case temperature (Tcase) range, it is appropriate for outdoor DALI lighting networks controlling facade strips or illuminated outdoor signs.
How much 24V LED strip can the ELG-150-24DA support?
The driver delivers up to 150W at 24V (6.25A maximum). For a 9.6 W/m strip, that supports approximately 15.6 m (150 Γ· 9.6). For a 20 W/m high-output strip, about 7.5 m (150 Γ· 20). Confirm your strip's rated wattage per meter before sizing the installation.
Can the ELG-150-24DA replace a non-dimmable 24V driver in an existing LED strip installation if DALI control is added later?
Yes, electrically: it is rated 150W at 24V / 6.25A like the non-dimming ELG-150-24. The sheet does not state the output level when no DALI signal is connected, so confirm that before installing; adding a DALI controller and bus wiring to the DA+/DA- leads later enables dimming without replacing the driver again.
Does the ELG-150-24DA work across a wide mains input range, including 277V?
Yes. The input range is 100β305VAC, accommodating all common single-phase supply voltages from 120V to 277V without any selector switch. This makes it suitable for North American commercial buildings wired at 277V as well as international 230V installations.
