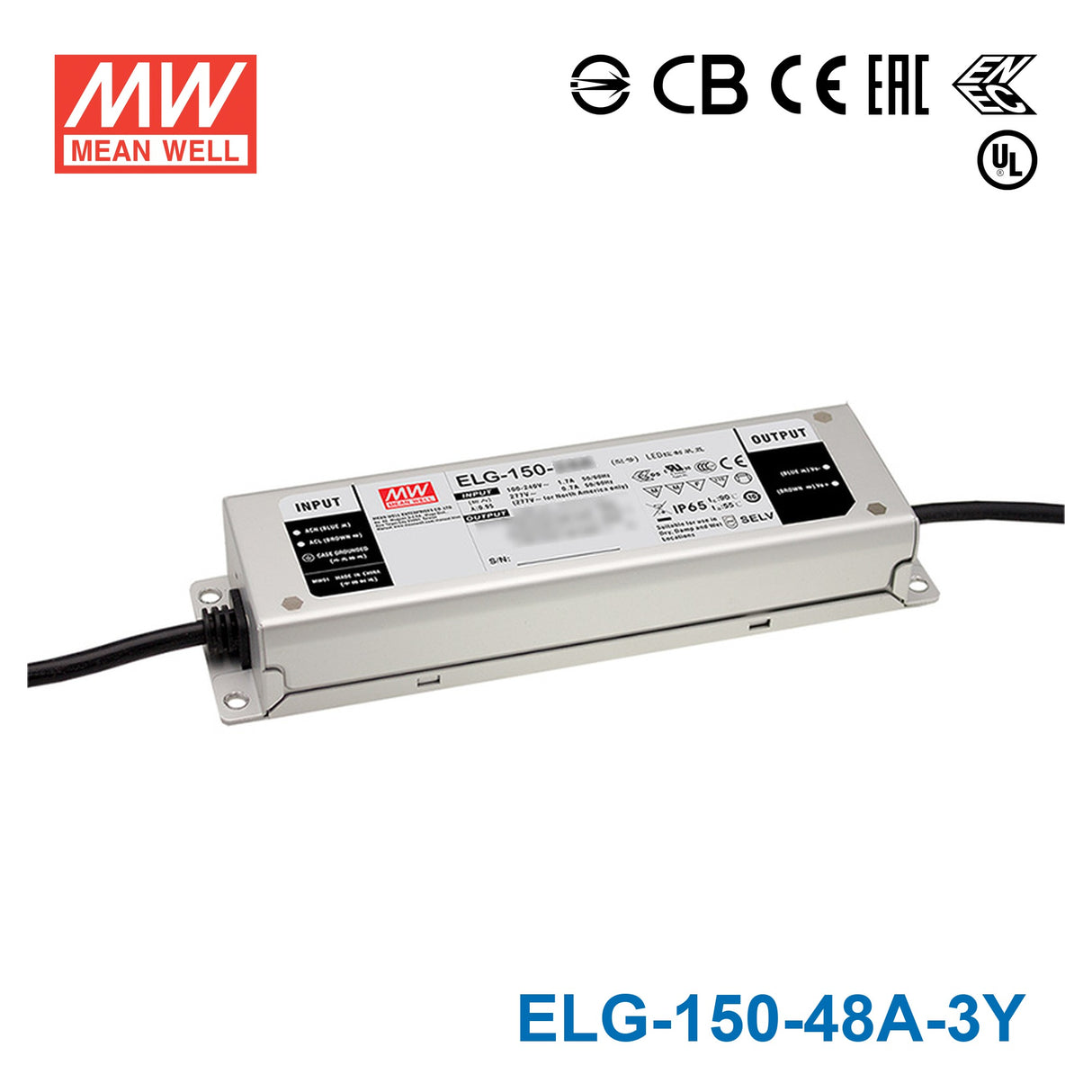

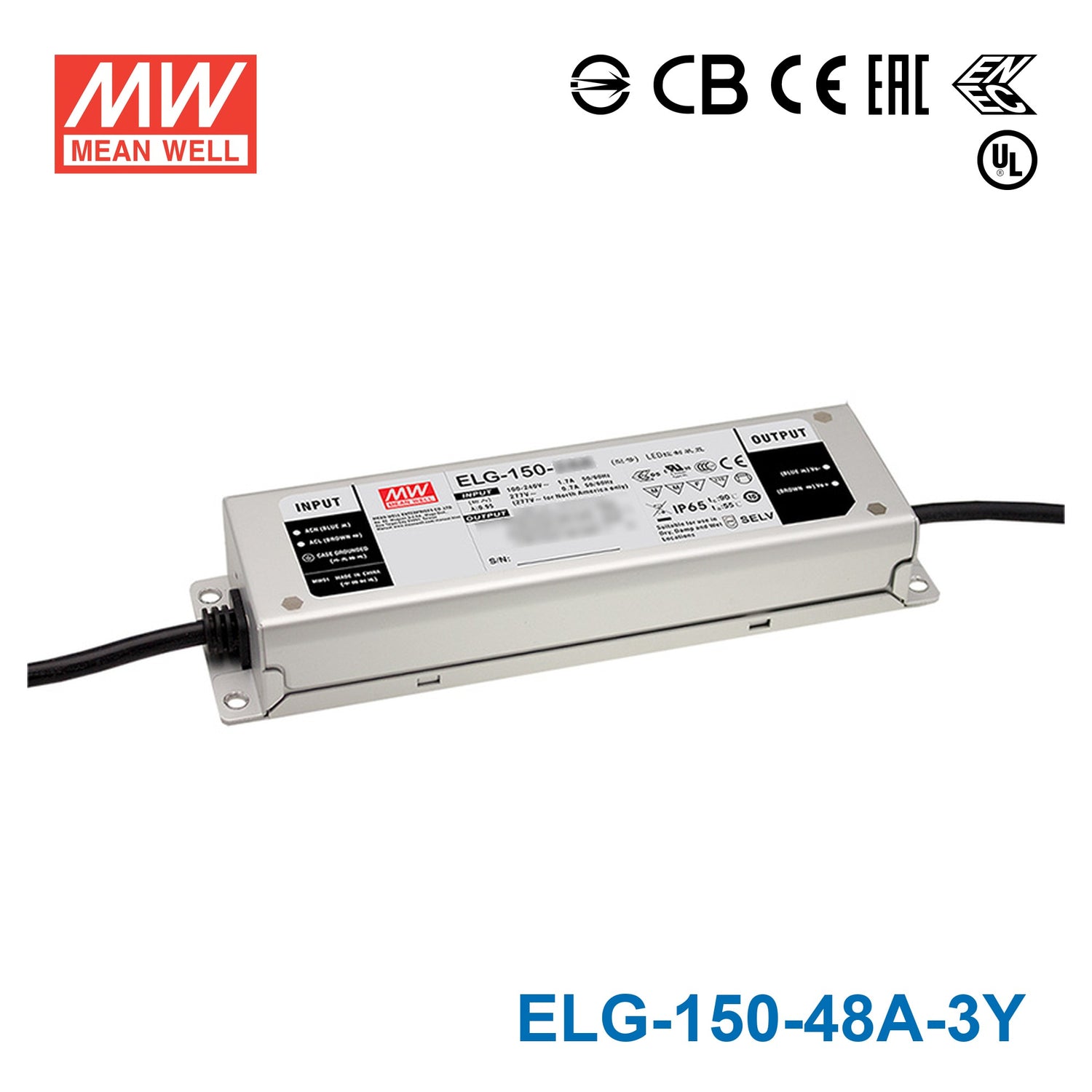

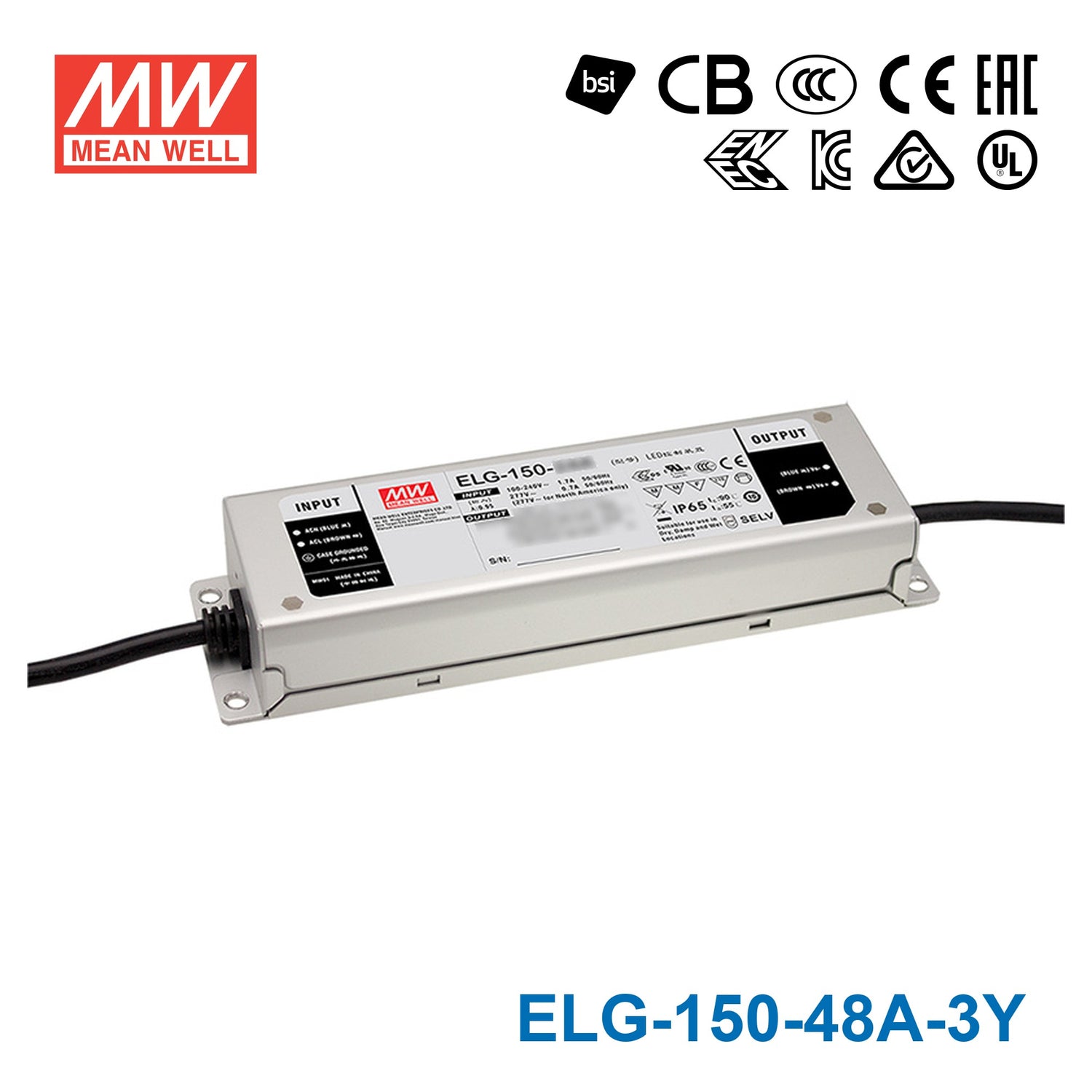

Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth)

metal caseIP655 years warranty
SKU ELG-150-48A-3Y
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

In stock
|

Overview

ELG-150-48A-3Y is the 48V output model of this series: rated current 3.13A, typical efficiency 90%. Type A + 3Y: Io and Vo adjustable through built-in potentiometer (IP65).

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifet ime>50000 hours
  • 5 years warranty

Model encoding

ELG-150-48A-3Y model encoding: what each part of the model name means
TypeFunction
BlankIo and Vo fixed; IP67
A (this model)Io and Vo adjustable through built-in potentiometer; IP65
B3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
ABIo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DADALI control technology; IP67

Specifications

ELG-150-48A-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE
48V
CONSTANT CURRENT REGIONNote.2
24 ~ 48V
RATED CURRENT
3.13A
RATED POWER 100VAC ~ 180VAC
105W
RATED POWER 200VAC ~ 305VAC
150.2W
RIPPLE & NOISE (max.)Note.3
250mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 43.2 ~ 52.8V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 1.56 ~ 3.13A
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.)
10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
90%
AC CURRENT
1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.)
COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
54 ~ 62V Shut down output voltage, re-power on to recover
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type
Type HL
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
  5. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  6. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  7. 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  8. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  9. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  10. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  11. 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  12. 14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-48A-3Y Block Diagram
Block Diagram
ELG-150-48A-3Y OUTPUT LOAD vs TEMPERATURE(Note.9)
OUTPUT LOAD vs TEMPERATURE(Note.9)
ELG-150-48A-3Y STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-150-48A-3Y TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-150-48A-3Y LIFE TIME
LIFE TIME
ELG-150-48A-3Y Mechanical Specification ※ A-Type
Mechanical Specification ※ A-Type
ELG-150-48A-3Y ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
ELG-150-48A-3Y Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can the ELG-150-48A-3Y power 48V LED strip lighting in an outdoor architectural installation?

Yes. The ELG-150-48A-3Y is rated IP65, protecting against water jets and dust ingress, which makes it suitable for semi-exposed outdoor architectural lighting such as facade uplighting or canopy cove lighting. Its -40°C to +90°C case temperature (Tcase) range covers most climatic conditions.

How many meters of 48V LED strip can the ELG-150-48A-3Y drive?

With 150.2W at 48V, divide 150W by your strip's rated power per meter. For a 10 W/m strip, that is up to 15 meters; for a 20 W/m strip, up to 7.5 meters. Always verify your strip's rated power per meter and apply a 20% safety derating for thermal headroom.

Is the ELG-150-48A-3Y a good fit for 48V LED strip used in commercial interior lighting projects?

Yes. The 48V output is well matched to 48V high-CRI LED strips common in high-end retail and hospitality interior lighting. At 150.2W and 3.13A, it supports substantial continuous runs or multiple parallel LED modules on a single circuit.

Can I use the ELG-150-48A-3Y in an outdoor LED stair or step lighting application?

Yes. Its IP65 rating handles the splashing, humidity, and dust exposure typical of stair or step lighting recesses. The -40°C to +90°C case temperature (Tcase) range adds durability for recessed outdoor installations.

What certifications does the ELG-150-48A-3Y carry, and is it approved for European installations?

The sheet lists UL8750 (type HL), CSA C22.2 No. 250.13, IEC/BS EN/EN 61347-1 and 61347-2-13, EN62384, EAC, GB/T19510 and KC approvals. For Europe, it complies with the EN 61347 safety standards and EN55015, EN61000-3-2 Class C, EN61000-3-3 and EN61547 EMC standards.

What is different between the ELG-150-48A-3Y and the ELG-150-48B in this series?

The ELG-150-48A-3Y (150.2W, 48V, 3.13A) is IP65 rated, uses output voltage/current adjustment via potentiometer and has a 3-wire input with PE. The ELG-150-48B (150.2W, 48V, 3.13A) is IP67 rated and offers 3-in-1 dimming (0–10V, PWM, resistance) instead of adjustment. Choose the B variant when waterproof dimming is required.
