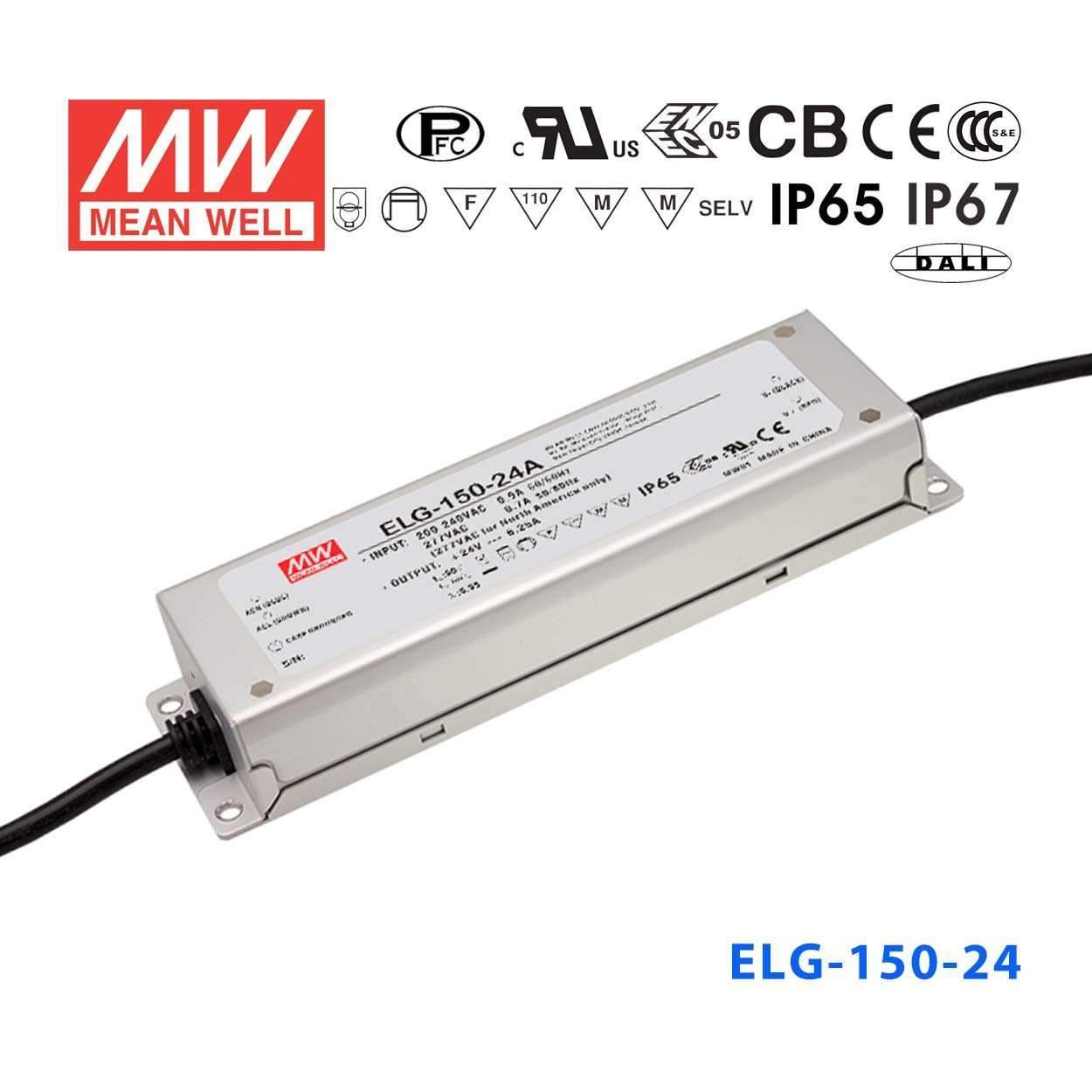

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

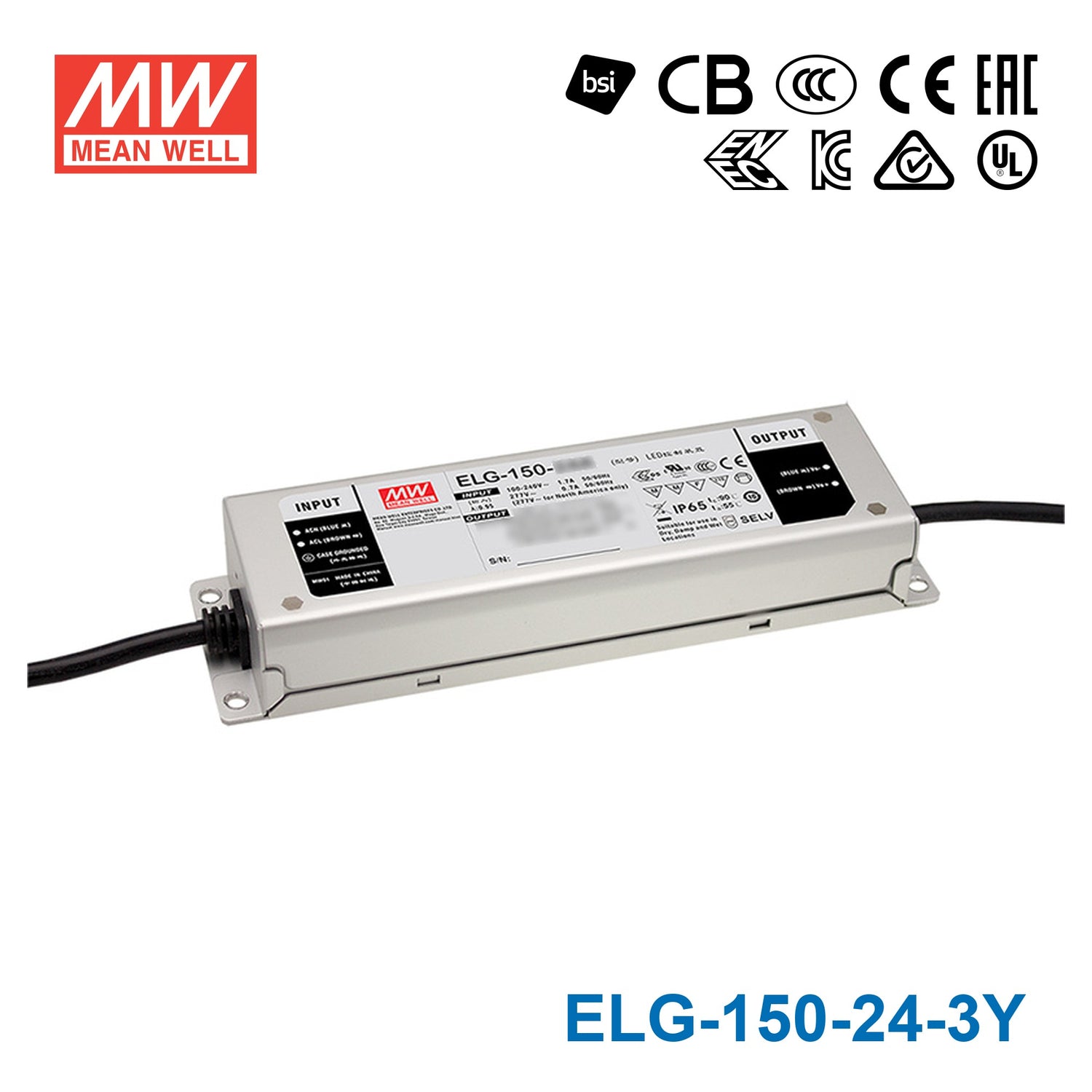

Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)

metal caseIP675 years warranty

SKU ELG-150-24-3Y

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

ELG-150-24-3Y is the 24V output model of this series: rated current 6.25A, typical efficiency 89%. Type Blank + 3Y: Io and Vo fixed (IP67).

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Typical lifet ime>50000 hours
5 years warranty

Specifications

ELG-150-24-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 12 ~ 24V
RATED CURRENT: 6.25A
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 150W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 89%
AC CURRENT: 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP67; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5mm (L*W*H)
PACKING: 0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank (this model): Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-150-24-3Y Block Diagram — Block Diagram

ELG-150-24-3Y OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-150-24-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-150-24-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-150-24-3Y Mechanical Specification ※ Blank-Type — Mechanical Specification ※ Blank-Type

ELG-150-24-3Y ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-150-24-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-150-24-3Y datasheetELG-150-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-150)(EN) PDF Download

UL Certificate (ELG-150)(EN) PDF Download

EMC Certificate (ELG-150)(EN) PDF Download

ENEC Certificate (ELG-150)(EN) PDF Download

Test reports1

Test Report (ELG-150-24)(EN) PDF Download

FAQ

What distinguishes the ELG-150-24-3Y from the standard ELG-150-24?

The ELG-150-24-3Y uses a 3-conductor input configuration with a separate protective earth conductor, compared to the standard ELG-150-24. Both deliver 150W at 24V with 6.25A output and share the same IP67 rating.

Can I use the ELG-150-24-3Y to drive 24V LED strips in an outdoor garden lighting installation?

Yes. The IP67 rating protects the driver from rain and moisture in garden or landscape installations. The 150W output at 24V is sufficient to supply multiple runs of 24V LED strip distributed across an outdoor garden system.

How many meters of 24V LED strip can the ELG-150-24-3Y power?

The ELG-150-24-3Y provides 150W at 24V. For a 14.4 W/m high-density strip: 150 ÷ 14.4 ≈ 10.4 m maximum; derated to 80% for continuous operation, approximately 8.3 m. Always verify your strip's rated power per meter.

Is the ELG-150-24-3Y suitable for installation in an outdoor electrical enclosure in a parking structure?

Yes. The IP67 rating handles the dust, moisture and rain exposure found in parking structures, and the -40°C to +90°C case temperature (Tcase) range covers unheated structures in cold climates.

Can the ELG-150-24-3Y be used to power 24V LED strips in a covered outdoor retail display area?

Yes. For covered outdoor retail areas where fixtures may be exposed to rain splash, the IP67 driver is an appropriate choice. At 150W it can supply a substantial display run of 24V LED strip from a single driver.

Does the ELG-150-24-3Y work on 277V AC input as used in US commercial installations?

Yes. The input range is 100–305VAC, which includes 277V single-phase supply commonly used in US commercial lighting circuits. No configuration changes are needed.
