Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

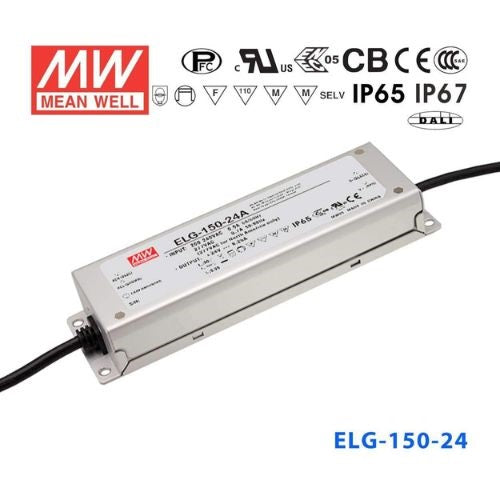

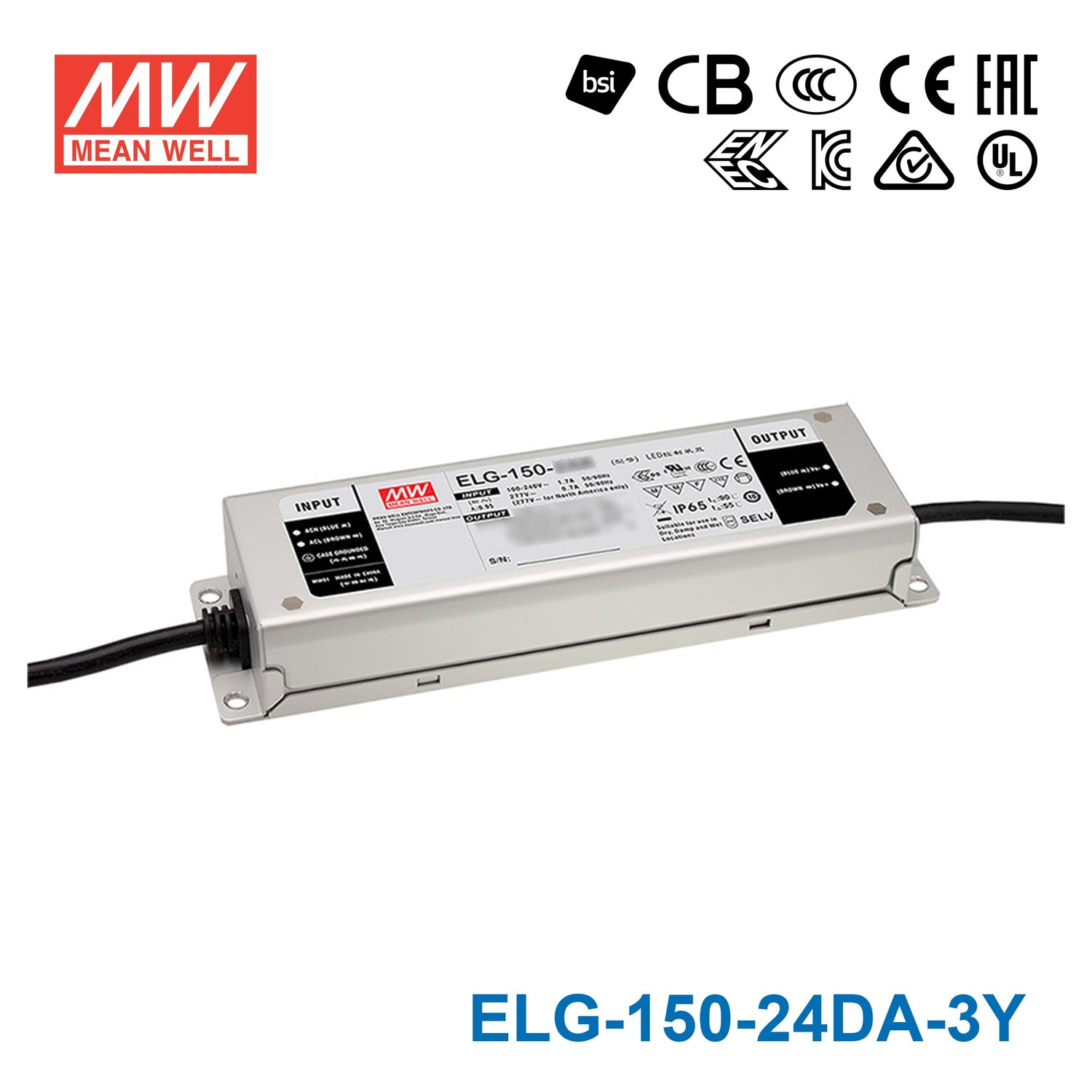

Mean Well ELG-150-24DA-3Y Power Supply 150W 24V - DALI 6.25A — 3-Wire Input (with Earth)

metal caseIP675 years warranty

SKU ELG-150-24DA-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-150 is a 150W Mean Well power converter. This is the 3Y variant, supplied with a 3-wire input cable (live, neutral and protective earth).

Key Features

✓ 3-wire input with protective earth (L, N + PE)
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

What dimming interface does the ELG-150-24DA-3Y provide for LED strip control?

The DA suffix indicates a DALI (IEC 62386) digital dimming interface. The driver can be individually addressed on a shared DALI bus and dimmed from 0 to 100% via a DALI controller, suitable for lighting systems that require scene programming or energy management control.

Can the ELG-150-24DA-3Y be used for 24V LED cove lighting in a DALI-controlled hotel or hospitality venue?

Yes. Hotel and hospitality cove lighting is a common application for DALI-dimmable 24V drivers. The ELG-150-24DA-3Y can be addressed individually on the DALI bus and delivers up to 150W to 24V LED strips, sufficient for medium-to-long cove runs with smooth dimming capability.

Is the ELG-150-24DA-3Y weatherproof enough for outdoor architectural lighting with DALI control?

Yes. The IP67 rating means the driver is sealed against dust and temporary water immersion, allowing placement in outdoor luminaire housings or enclosures exposed to rain. The -40°C to +90°C operating range covers outdoor temperature extremes in most regions.

How many meters of 24V, 16.8 W/m LED strip can the ELG-150-24DA-3Y run?

At 150W maximum output, dividing by 16.8 W/m gives approximately 8.9 m of strip (150 ÷ 16.8). For a 12 W/m strip, that extends to about 12.5 m (150 ÷ 12). Always verify the strip's rated power per meter and stay within the 150W limit.

Can the ELG-150-24DA-3Y be used to drive 24V LED strips in museum display cases where smooth, flicker-free dimming is required?

Yes. DALI control provides smooth, linear dimming across the full range, which reduces flicker compared to PWM dimming at low frequencies. The ELG-150-24DA-3Y is a suitable driver for museum displays and other environments where lighting quality and artifact fidelity are critical.

Does the ELG-150-24DA-3Y accept both 120V and 230V mains input?

Yes. The input accepts 100–305VAC with no manual switching, making the ELG-150-24DA-3Y compatible with 120V North American, 230V European, and 277V commercial supplies from a single SKU.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	150W	12V	10A	IP67	View
Mean Well ELG-150-24A-3Y Power Supply 150W 24V - Adjustable 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth)	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B-3Y Power Supply 120W 12V - Dimmable 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
