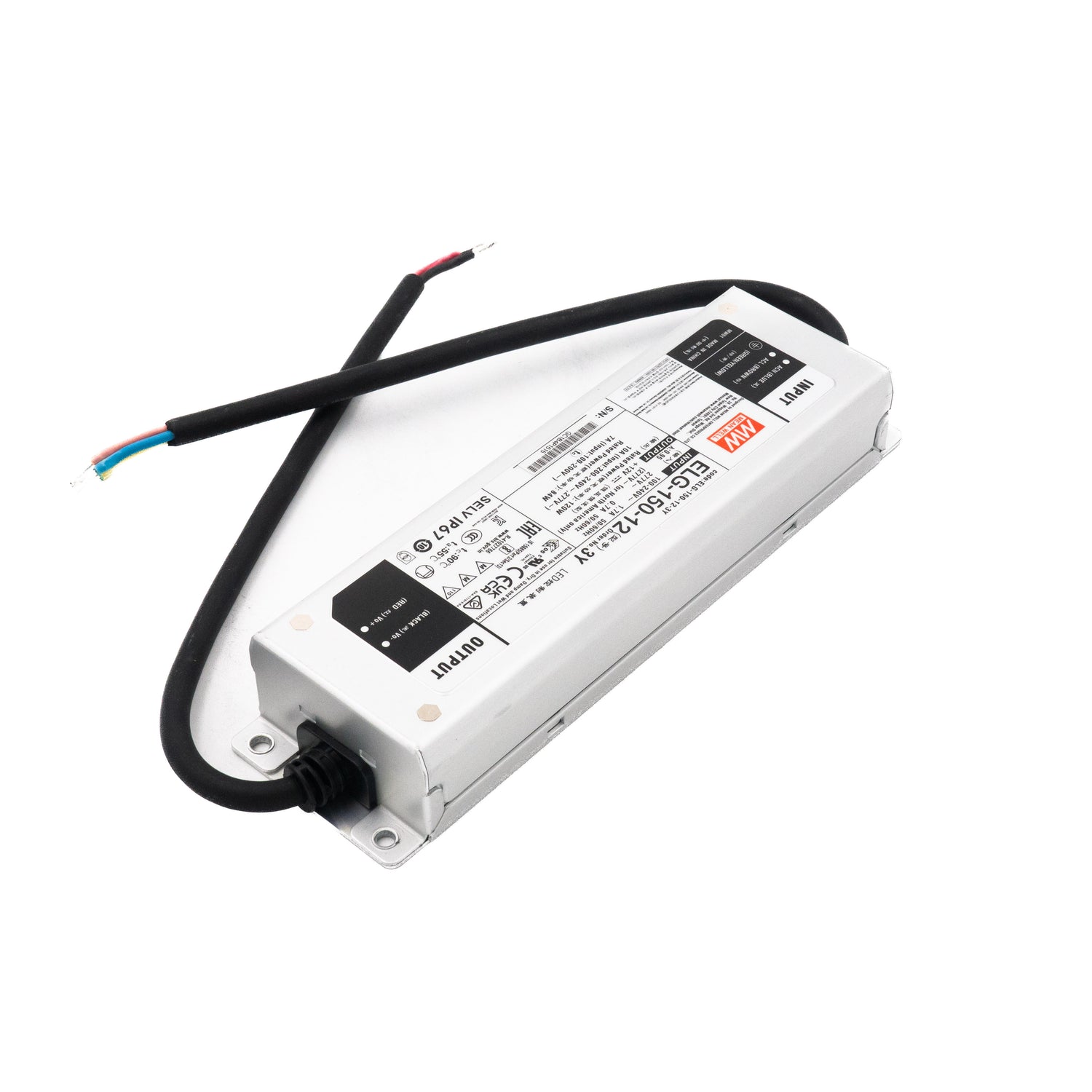

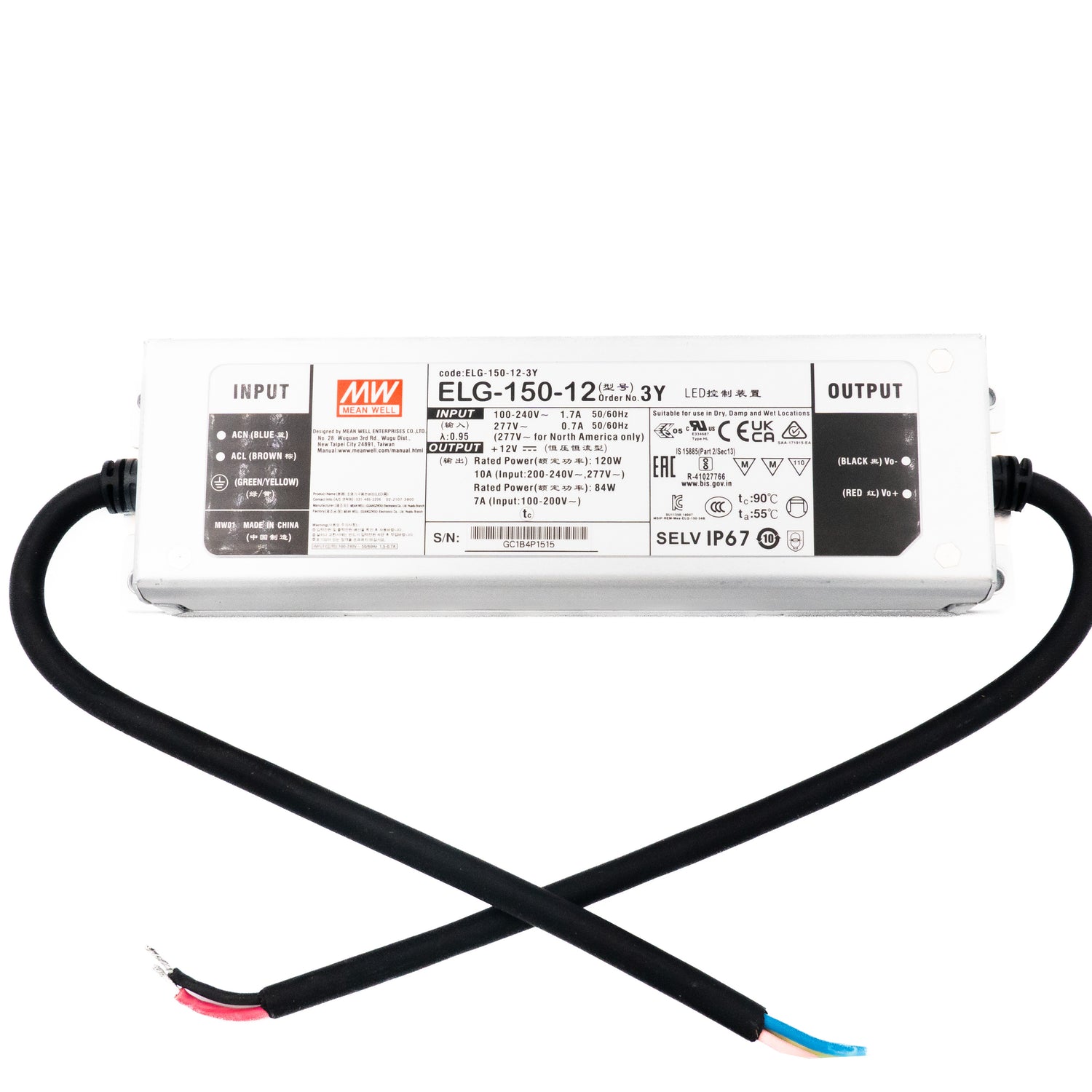

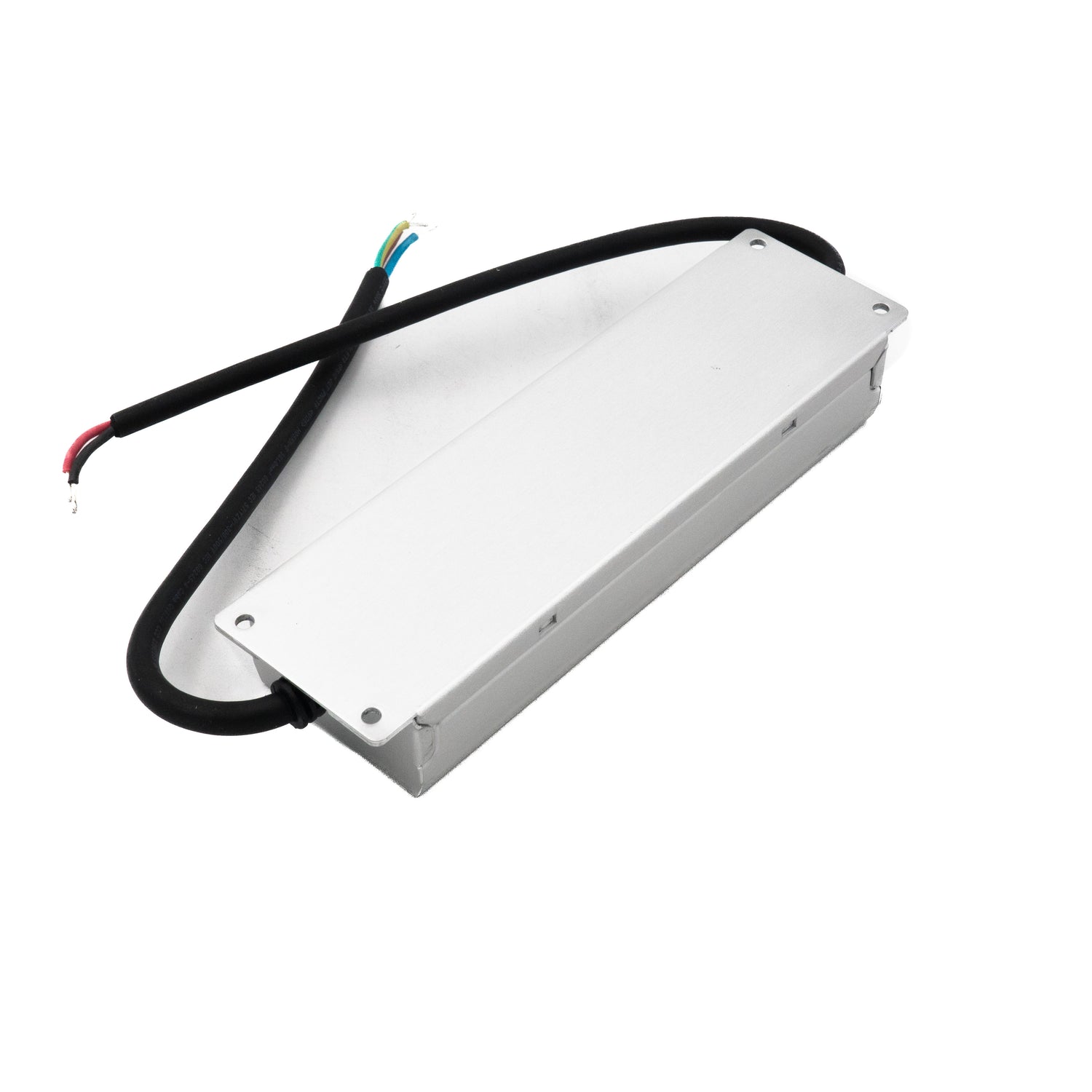

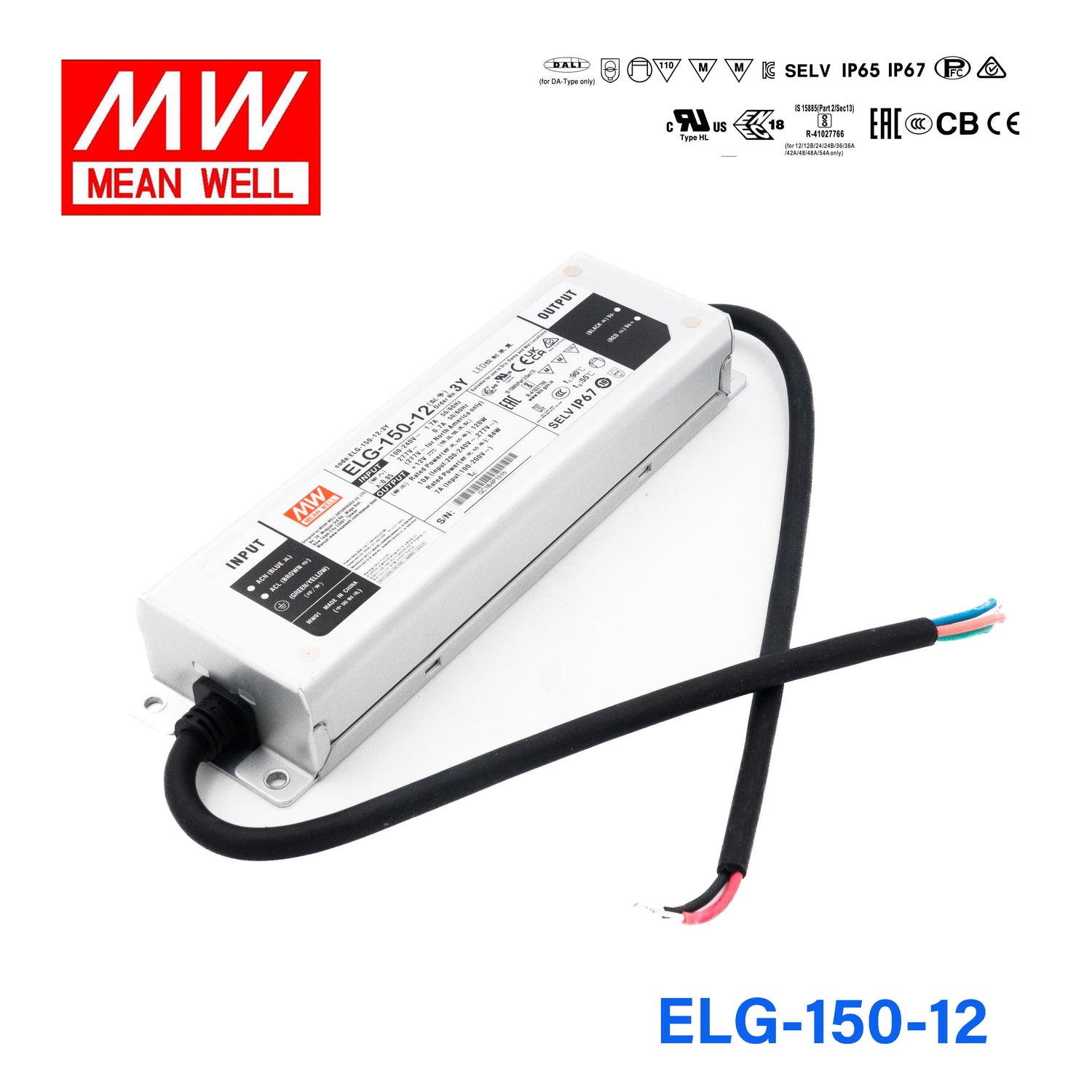

Mean Well ELG-150-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 10A

Yes. The ELG-150-12-3Y is rated IP67 for waterproofing and operates from -40°C to +90°C, which covers typical outdoor conditions year-round. At 150W and 10A, it provides higher continuous power than the standard ELG-150-12 (120W), giving more headroom for outdoor runs or thermally loaded enclosures.

The ELG-150-12-3Y is rated at 150W while the ELG-150-12 is rated at 120W, both at 12V and 10A output. The -3Y variant also carries BSMI, CB, CE, EAC, and UL certifications rather than the broader c_bsi, CCC, ENEC, KC, c_rcm, and UL set on the standard model. Choose the -3Y if your project requires BSMI compliance or needs the higher 150W rating.

With 150W available at 12V, the driver can supply up to 12.5A at that voltage. For a 12V strip rated at 14.4 W/m, this covers approximately 10.4 m (150 W ÷ 14.4 W/m). For a higher-output 24 W/m strip, the run length would be about 6.25 m. Verify your strip's rated wattage per meter and apply a 10–20% derating margin.

Yes. The IP67 waterproof rating and 150W output make the ELG-150-12-3Y well suited for sign cabinet applications where a higher wattage budget is needed, such as large backlit channel letter arrays or extensive LED module grids. Its wide input range (100–305VAC) supports international sign manufacturing.

Yes. The operating range begins at -40°C, which covers industrial freezer and cold-storage temperatures. The IP67 sealing also resists condensation that forms when a driver cycles between cold and ambient temperatures, a common challenge in refrigerated warehouse lighting.

Yes. Its 150W output supports long or high-density 12V strip runs typical of facade wash lighting or perimeter cove lighting. IP67 weatherproofing allows direct outdoor mounting, and the 5-year warranty supports the project lifecycle expectations of architectural lighting installations.
